Vibration and Noise Monitoring Station SV 258 PRO

The vibration and noise monitoring station SV258 PRO is dedicated to building vibration measurements that use methods based on Peak Particle Velocity and Dominant Frequency. The measurement of human vibration exposure in buildings is possible as the program allows simultaneous measurement of velocity and acceleration of vibrations with two independent steps of recording. In addition, it is possible to enrich the measurement with noise monitoring measurement data.

Users can use predefined settings compatible with commonly used standards such as DIN 4150-3 or BS 7385-2 or configure a criterion curve based on FFT or 1/3 Octave analysis by local standards. The 1/3 octave method is also used for vibration measurements of sensitive equipment with VC curves.

Building Vibration

Environmental Monitoring

DIN 4150-3 Standard

Vibration and noise monitoring system

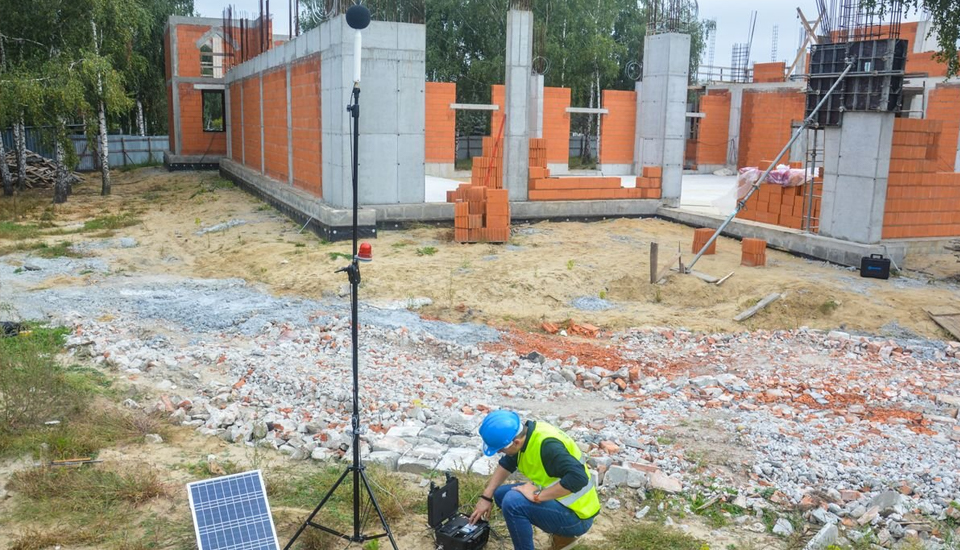

Vibration and noise monitoring with SV258 PRO is controlled remotely with a 4G modem that transmits measurement data to the SvanNET server where the user has access to current data, files with historical data and can also generate a measurement report. The system generates SMS and Email notifications as well as visual and audible alarms (optional alarm lamp). In addition to simple triggers from PPV or LEQ values, you can configure alarms from standard curves (e.g. DIN 4150-3) or custom curves based on FFT or 1/3 octaves for sensitive equipment. It is possible to move the criterion curve up or down the scale so that the alarm is generated earlier or later. The time and value of the alarm are saved together to the memory of the meter.

The vibration time history in the form of WAV is stored for all three channels and is used for the verification of vibration sources. An accurate post-analysis of the frequency content of the signal is available in the SvanPC ++ program.

Vibration and sound monitoring

Vibration and noise analysis

PPV, Dominant Frequency, PPV Vector Sum, VDV, FFT, 1/3 Octave

The choice of building vibration standard and the type of building (curve) enables the vibration velocity measurements according to commonly used standards such as DIN 4150-3 or BS 7385-2 that use Peak Particle Velocity and the Dominant Frequency method. Peak Particle Velocity (PPV), PPV Vector Sum, and Vibration Dose Value (VDV) are measured simultaneously in three axes. The time-history logging of vibration velocity results (PPV) and acceleration (VDV) is performed simultaneously. If you can’t find the vibration standard on the list of implemented ones, you can always input customized values to create a criterion curve based on FFT or 1/3 octave (RMS, PEAK, or MAX). All these amazing features are included!

Alarms and Events

SMS and email, beacon lamps, or buzzer alarms

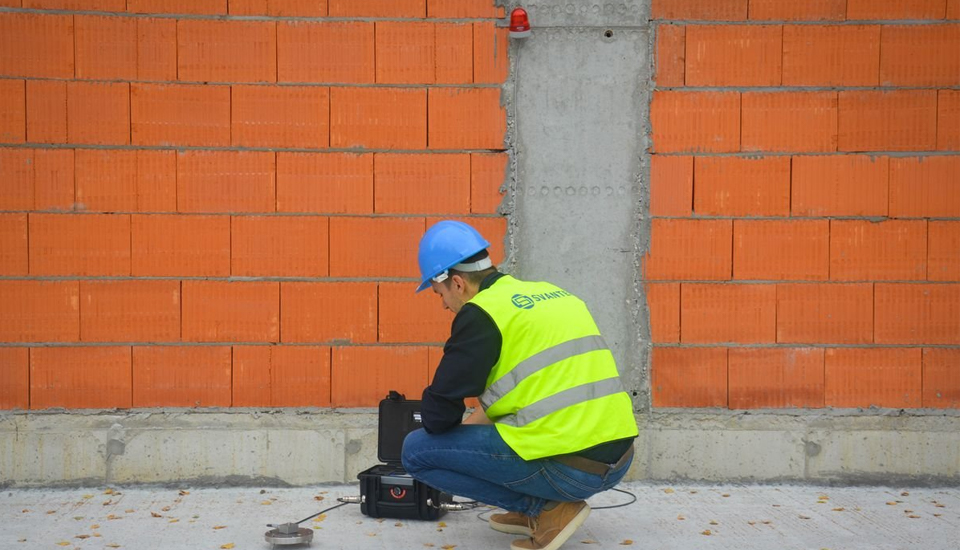

The system generates SMS and e-mail notifications as well as visual and audio alarms when excessive vibration is detected. In addition to simple triggers from PPV or LEQ values, you can configure alarms from standard curves (e.g. DIN 4150-3) or custom curves based on FFT or 1/3 octaves. The triggering of an alarm starts the event, whose length is configurable. After the event time has elapsed, the instrument starts analyzing the data and indicates the highest PPV value and its dominant frequency. The time and value of the event are saved in the meter’s memory. All triggering is done by the instrument firmware, limiting the risk of a lack of alarms due to a bad connection with a cloud service.

Sound and vibration

Simultaneous vibrations and class 1 noise monitoring

The SV258PRO Monitoring Station uses 4 channels: 3 for measurement of vibration velocity and acceleration and the fourth to measure sound in accordance with the requirements of IEC 61672 Class 1. The results (e.g., LEQ, MAX, MIN, or PEAK) are recorded together with the vibration velocity and acceleration steps, making the correlation of sound and vibrations much easier. The system uses a ROLLING LEQ or interval LEQ for ALARM and EVENT triggering!

Whole body vibration measurements

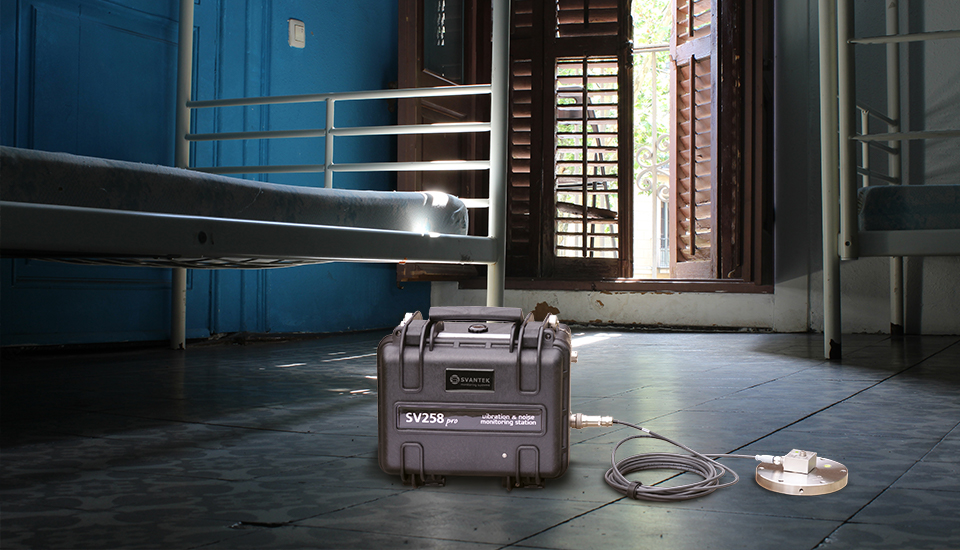

Measurement of human vibration exposure in buildings by ISO 2631-1, BS 6472, and DIN 4150-2

The station allows simultaneous measurement of vibration acceleration, allowing the measurement of VDV with a different recording step than PPV, making the reporting much easier. The analyzer has built-in weighing filters according to ISO 2631-1 and ISO 2631-2 as well as DIN 4150-2. It is also possible to measure the impact of vibration exposure using a 1/3 octave spectrum.

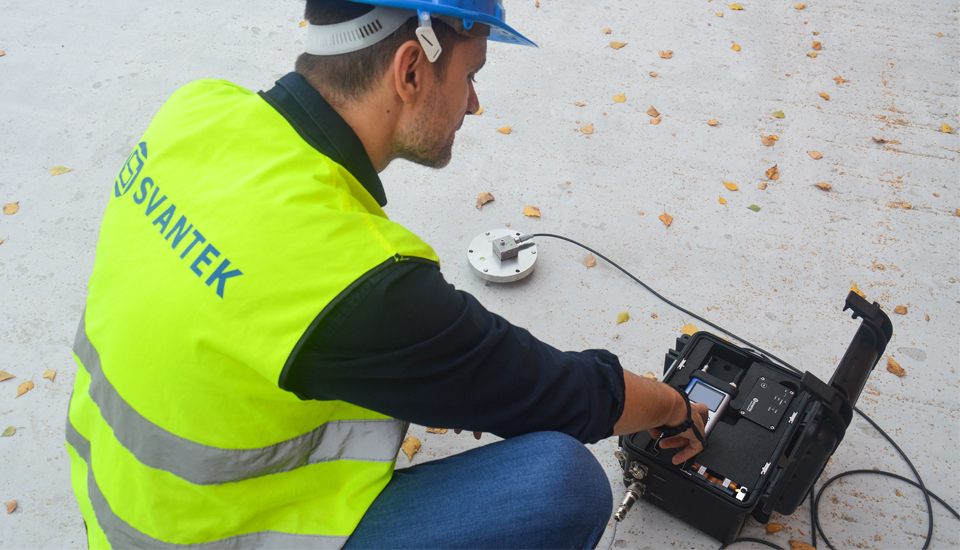

Portable monitoring system

A waterproof case dedicated to outdoor measurements

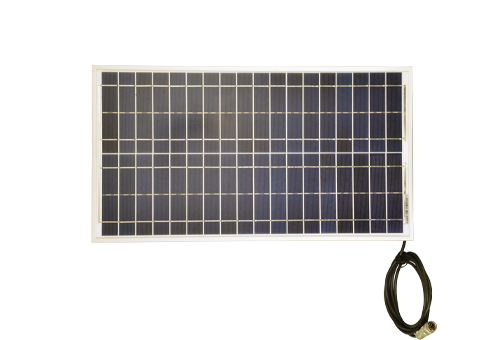

Military standard connectors provide reliable, robust, and waterproof cable connections. The station is ready for direct connection of a solar panel and can be powered by an internal battery or an outdoor DC power supply. The power is managed by the intelligent charging unit. The low-noise, hermetically sealed tri-axial piezoelectric accelerometer enables outdoor use without additional enclosures.

Vibration and noise analysis

PPV, Dominant Frequency, PPV Vector Sum, VDV, FFT, 1/3 Octave

Alarms and Events

SMS and email, beacon lamps, or buzzer alarms

Sound and vibration

Simultaneous vibrations and class 1 noise monitoring

Whole body vibration measurements

Measurement of human vibration exposure in buildings by ISO 2631-1, BS 6472, and DIN 4150-2

Portable monitoring system

A waterproof case dedicated to outdoor measurements

Vibration and noise measurement

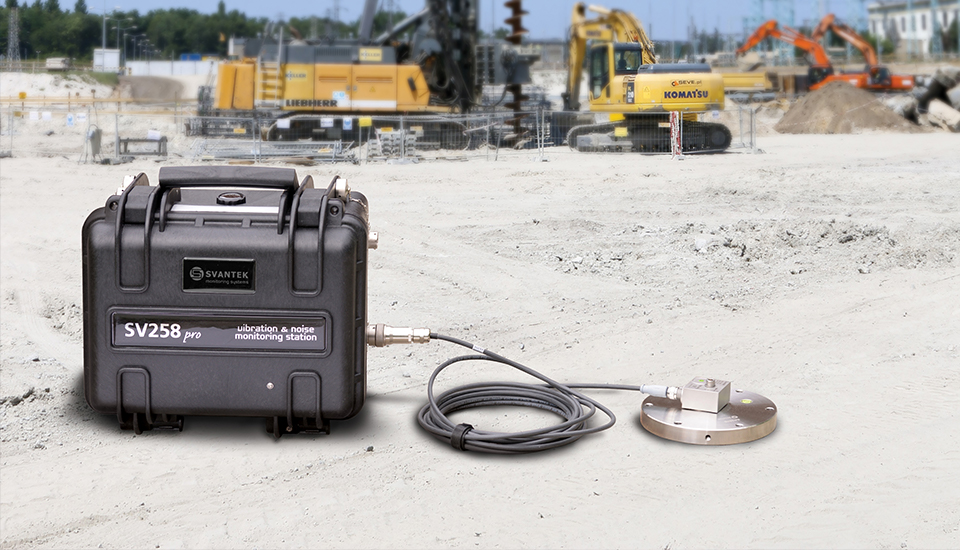

Building and ground vibrations

Vibration velocity and acceleration

SV 258 PRO measures triaxial velocity and acceleration vibration levels in parallel and calculates peak particle velocity and vibration dose value simultaneously. In addition to logging overall values and frequency spectra, the time domain signal is stored for post-processing purposes. SvanNET enables a plug-and-play connection to the Internet and easy management of measurement projects. Regardless of the SIM card type, and public or private IP numbers, SvanNET will establish a connection, giving full access to the measurement data via WEB BROWSER. FFT is used for dominant frequency determination according to BS and DIN standards. Alternatively, the RMS or PEAK velocity spectrum in 1/3 octave bands can be used for comparison with user curves.

Sound and vibration monitoring

Measurements of ground and building vibrations

See how the SV 258PRO can handle simultaneous vibration and noise monitoring in the vicinity of the construction project.

Building vibration monitoring

SVANTEK offers a complete system for construction project vibration monitoring.

Vibration monitoring station

See what the hardware of SV 258 PRO looks like

Configuration of vibration measurement

Demonstration of the software capabilities dedicated to environmental vibration levels measurements

SV 258PRO Overview

Discover the most important features of a unique station for measuring construction project ground and building vibration levels.

Vibration Monitoring System

SV 258PRO – Noise and Vibration Monitoring Station

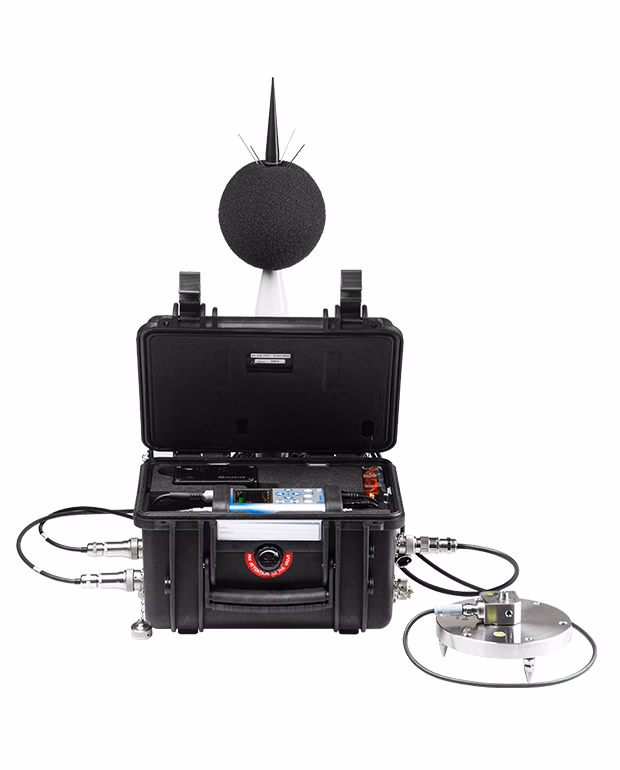

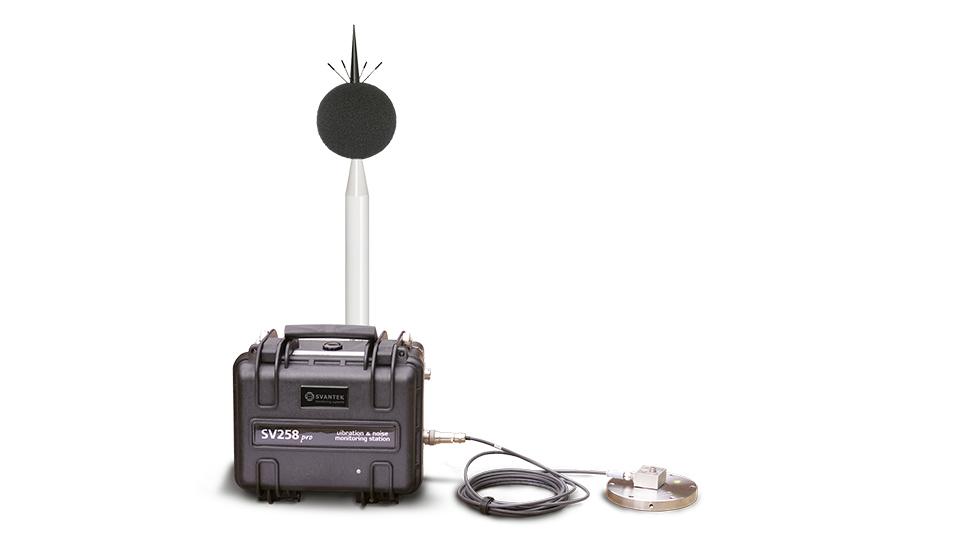

The SV 258 PRO kit consists of two carrying cases. The main unit is a waterproof carrying case with an internal 17 Ah battery and an internal controller supporting powering from an external DC or solar panel. The SVAN 958A Class 1 vibration and sound level meter is installed inside the main unit. The outdoor charger and vibration accelerometer are packed inside the second transportation case. The kit includes a license for SvanPC++ software and a SvanNET base account service. Each kit has its factory calibration certificate and a 36-month warranty upon product registration.

SF 258_03 - License of 1/1 & 1/3 octave analysis options for SV 258 PRO

License of 1/1 & 1/3 octave analysis options for SV 258 PRO

SVANPC++EM - Environmental Module License

The PC software module is designed for data post-processing from noise and vibration measurements. It provides all necessary functionalities for marking / removing / recalculation...

SVANPC++ Software

Advanced PC software for measurement data analysing and post processing

See all accessories

Open list

Products in the enquiry (1)

I would like an offer for selected products

Consent to contact via emailRead more...

I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

Consent to contact via phoneRead more...

I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

Consent to receiving newsletterRead more...

I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.

* Consent to contact by authorised Svantek DistributorRead more...

I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

Vibration Monitoring Station

SV 258PRO – Noise and Vibration Monitoring Station

Applications

Sound measurements

Environmental noise

Building/ground vibration

Hardware Features

Number of channels

Self-vibration detection

Auto-calibration

Remote system check

Keyboard lock

Remote communication

Bluetooth

GPS module

Communication Interfaces

4G, USB

LED indicator

Display

Keyboard

9 buttons

Memory

32GB

Battery type

Internal battery 17 Ah

Operating time

up to 7 days

Operating temperature range

-10 °C ÷ +50 °C

Weight

ca 9 kg

Size

420 x 340 x 210 mm

IP rate

IP 65

Sound measurements features

Standards

Class 1: IEC 61672-1

Microphone type

50mV/Pa

Preamplifier type

SV 12L

Linear operating range to IEC 61672

26 dBA Leq ÷ 140 dBA Peak

Total measurement range

16 dBA Leq÷ 140 dBA Peak

Internal noise

< 16 dBA Leq

Frequency range

3.5 Hz ÷ 20 kHz

Weighting filters

A, C, Z, G

Profiles per channel

Min logging step

Statistics

Statistics in octaves or third octaves

Noise directivity detection

Audio recording

Audio streaming

1/1 octave

1/3 octave

RT60
