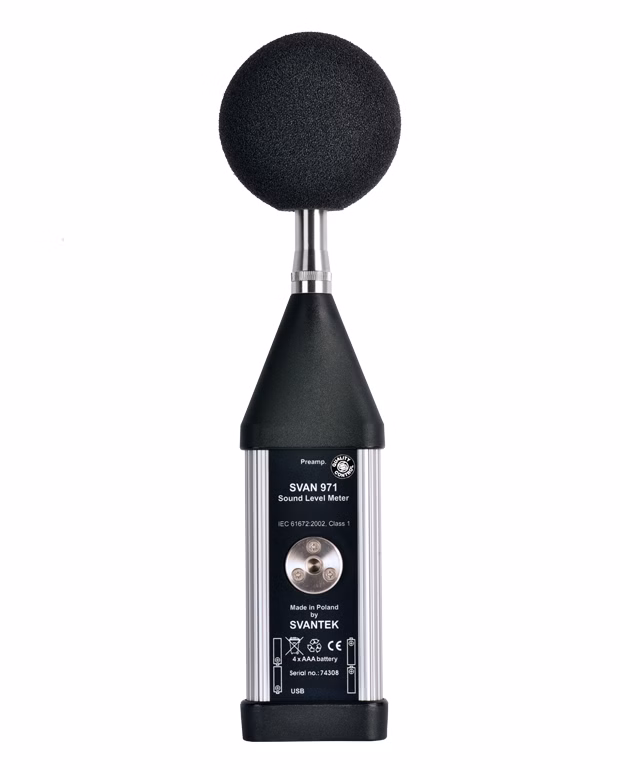

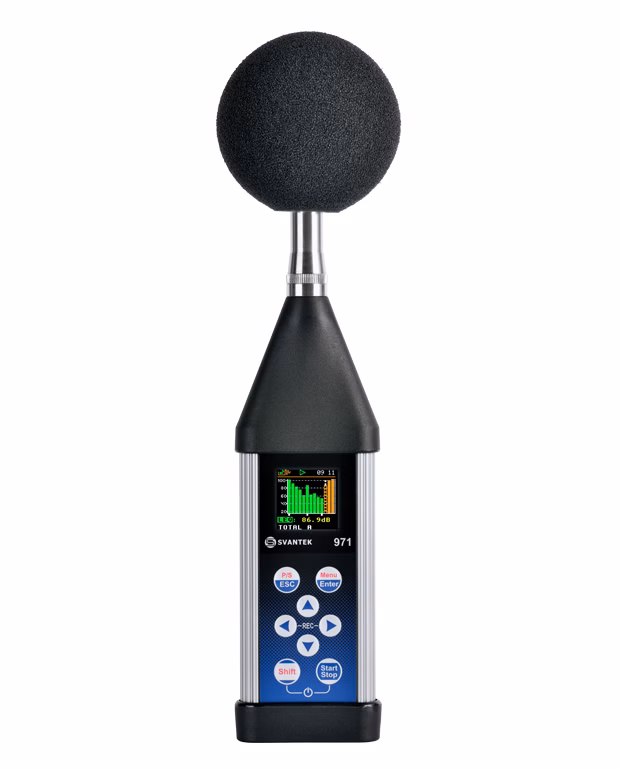

SVAN 971

Class 1 Sound Level Meter

About

SVAN 971 Class 1 Sound Level Meter is an extremely small instrument with options for 1/1 & 1/3 octave analysis. The instrument brings unprecedented state of the art technology to a SLM of this size.
The user interface makes both configuration and measurement easier than ever before. For those who don’t have time to work with measurement settings, SVAN 971 offers extremely simple operational mode with Start/Stop.
This innovation makes the SVAN 971 an ideal choice for many applications including industrial hygiene noise, short term environmental noise, acoustic consultants, technical engineers and general noise measurements.
The SVAN 971 provides broadband results with all required weighting filters plus 1/1 octave & 1/3 octave band filters.

class 1
Class 1

Bestseller

Type Approved

Main

Features

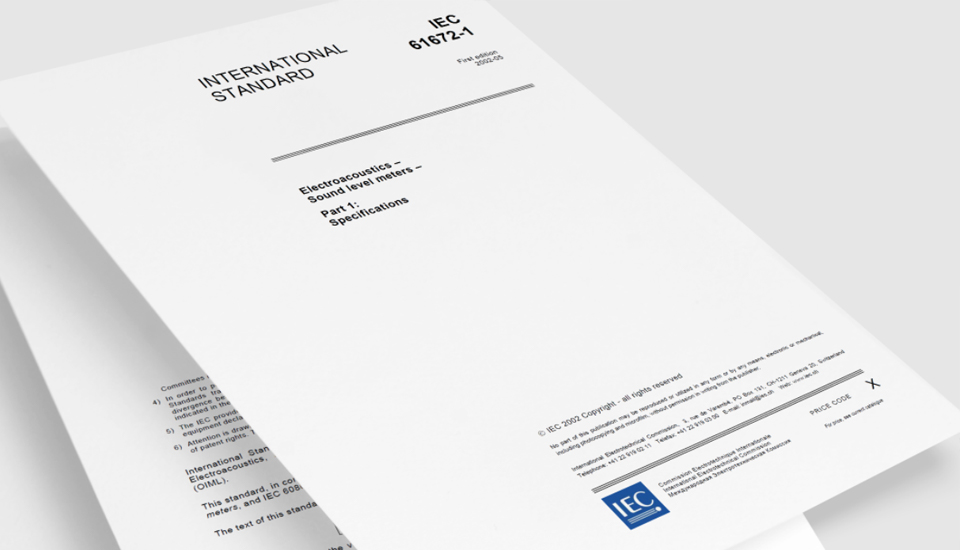

Class 1

in accordance to IEC 61672-1

SVAN 971 is a CLASS 1 Sound Level Meter in accordance to IEC 61672-1. The meter is TYPE APPROVED in most of the countries around the globe. It is the SMALLEST Class 1 instrument on the market. The size and weight are very convenient when making hand-held measurements.

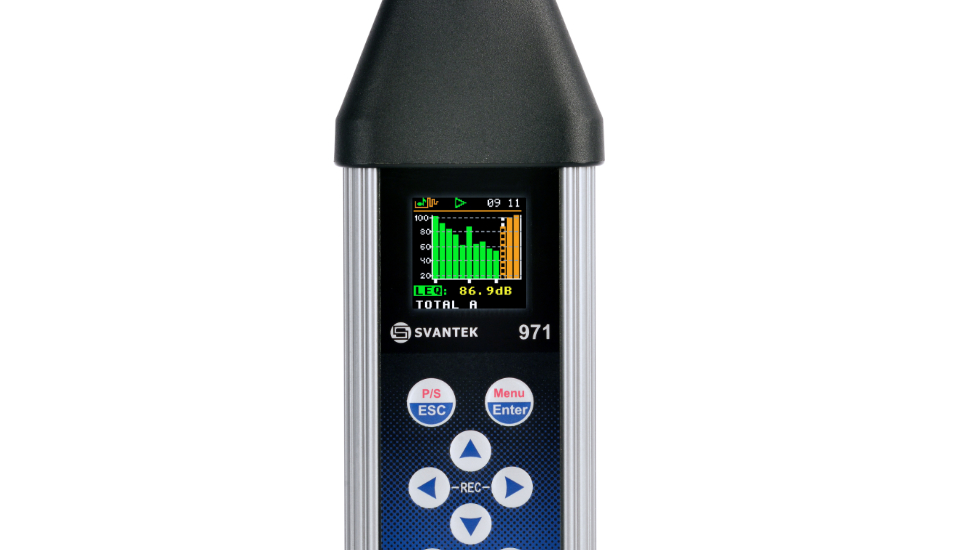

OLED display

for full color and high contrast

OLED DISPLAY is a full color and high contrast so it can be used in a sunlight or even at night. The OLED technology doesn’t use back-light giving SVAN 971 more battery operating time. The size of display is a perfect compromise between power savings and visibility. The built-in VIBRATION SENSOR informs meter about vibrations that interfere with noise measurements. In addition, the sensor detects the horizontal position of meter so the meter knows when to ROTATE the display.

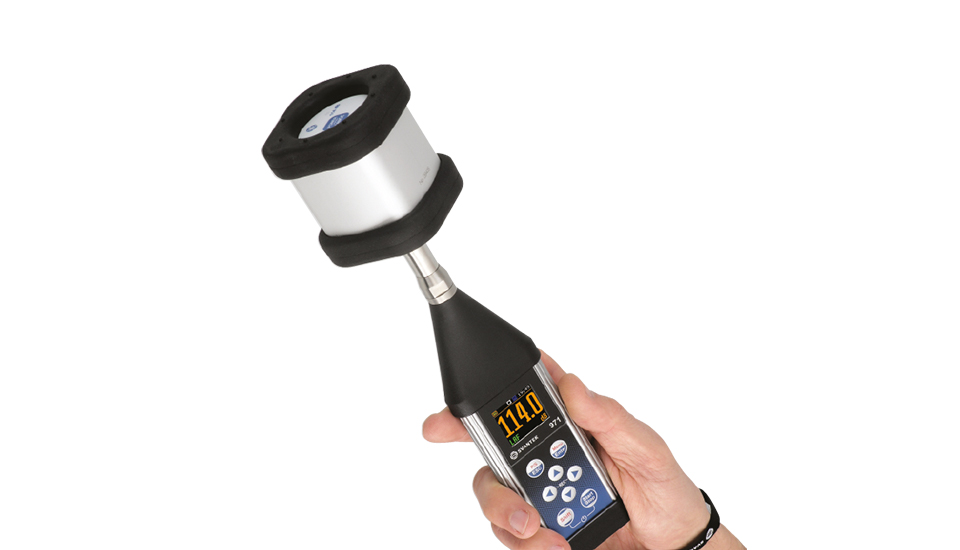

Auto Calibration

for convenience acoustic calibration

The norms and standards impose the requirement to calibrate the measurement channel before each measurement or measurement session and after the measurement as well for result verification purposes. Once the calibration signal is detected, SVAN 971 starts the AUTO-CALIBRATION, saving the calibration data together with the measurement file, both before and after measurement.

Class 1

in accordance to IEC 61672-1

OLED display

for full color and high contrast

Auto Calibration

for convenience acoustic calibration

Main

Applications

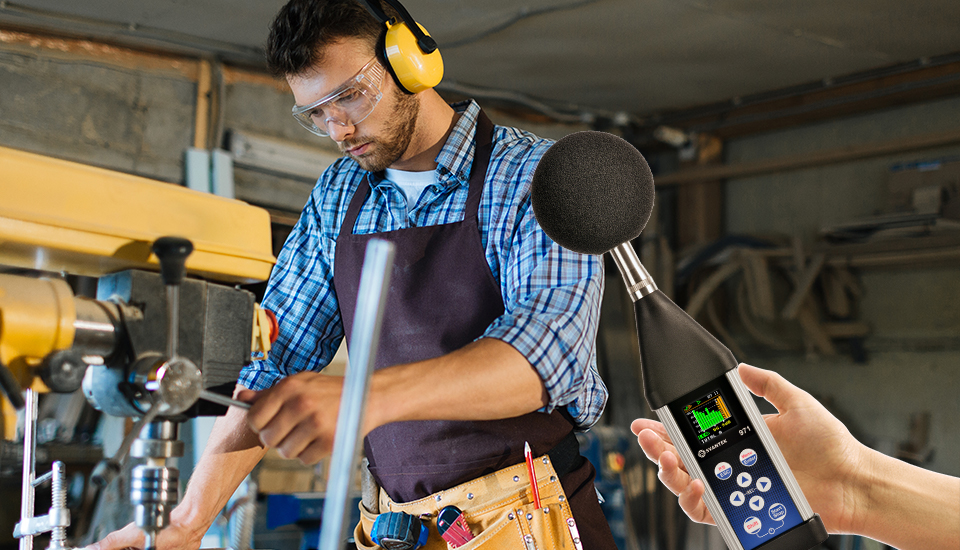

Occupational Noise

noise measurements at work places

The meter is suitable for noise at work measurements in accordance to standards such as ISO 9612, OSHA, MSHA and ACGIH. The TIME HISTORY LOGGING of results such as Leq, Max, Min and Peak with two simultaneous logging steps is saved on a 16 GB microSD card (upgradeable to 128 GB). SVAN 971 measures broad-band results with all necessary weighting filters as well as 1/1 octave or 1/3 octave band filters. The audio events recording allows to listen and recognize noise sources.
Read more

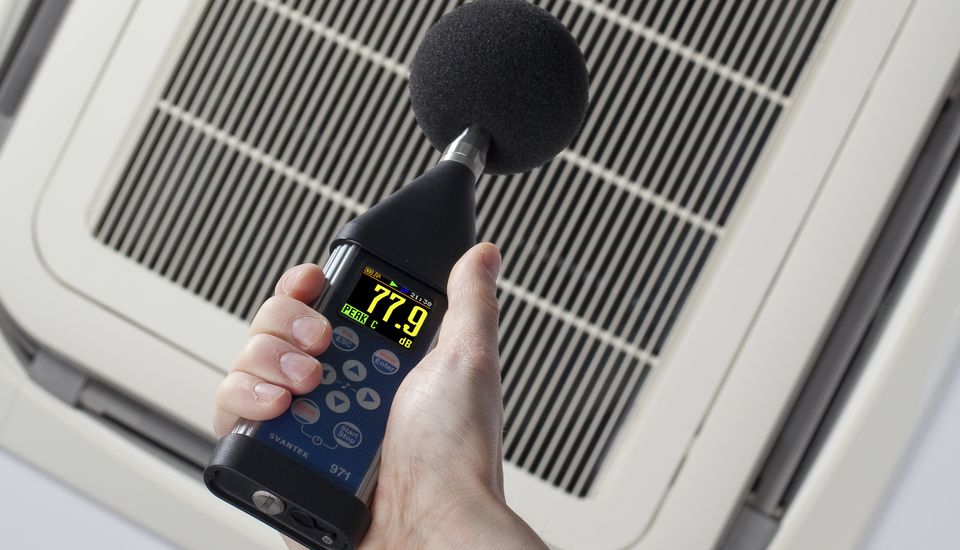

Sound measurements

all in one hand-held tool

The instrument brings unprecedented state of the art technology to a SLM of this size.The user interface makes both configuration and measurement easier than ever before. For those who don't have time to work with measurement settings, SVAN 971 offers extremely simple operational mode with Start/Stop. This innovation makes the SVAN 971 an ideal choice for many applications including industrial hygiene noise, short term environmental noise, acoustic consultants, technical engineers and general noise measurements. SVAN 971 provides broadband results with all required weighting filters plus 1/1 octave & 1/3 octave band filters.
Read more

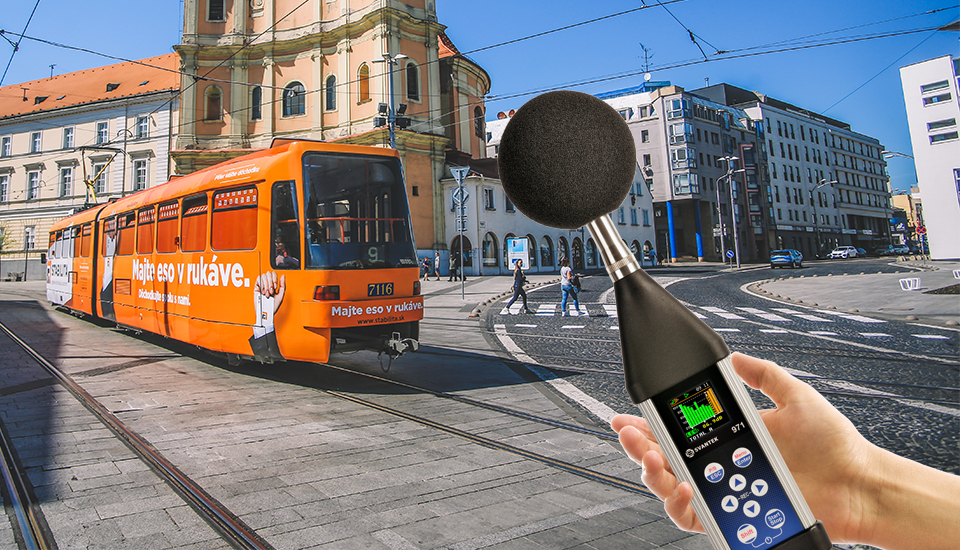

Environmental noise

periodic outdor measurments

SVAN 971 can be used for environmental measurements even for periodic outdor measurments. The ease of use and fast configuration are ones of the biggest advantages of SVAN 971. Audio events recording and frequency analysis in 1/1 or 1/3 OCTAVES are ideal for noise sources recognition. With optional accessories SVAN 971 can be upgraded to a noise monitoring station.
Read more

Occupational Noise

noise measurements at work places

Sound measurements

all in one hand-held tool

Environmental noise

periodic outdor measurments

Product

Videos

Ask for

SVAN 971 – Class 1 Sound Level Meter

SVAN 971 – Class 1 Sound Level Meter
The kit consists of SVAN 971 Class 1 sound level meter with detachable preamplifier SV 18 and high quality omni-directional ACO SV 7052E microphone, compliant to IEC61094-4. The list of accessories includes: SA 22 windscreen, 8 GB microSD card, four AAA batteries, USB cable, and pendrive with user manual. Each SVAN 971 has its factory calibration certificate and 36 months warranty card.

See all accessories

Open list

SF971_3 - License of 1/1 & 1/3 octave analysis options for SVAN 971

SF971_3 - License of 1/1 & 1/3 octave analysis options for SVAN 971

License of 1/1 & 1/3 octave analysis options for SVAN 971

SF971_15 - License of Audio events recording for SVAN 971

SF971_15 - License of Audio events recording for SVAN 971

License of Audio events recording for SVAN 971

SA 271 - Outdoor microphone kit for SVAN 971

SA 271 - Outdoor microphone kit for SVAN 971

Outdoor microphone kit for SVAN 971







    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.

    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

    Technical

    Specification

    SVAN 971 – Class 1 Sound Level Meter

    Applications

    Sound measurements
    Environmental noise
    Occupational noise
    Building acoustics

    Hardware Features

    Number of channels1
    Self-vibration detection
    Auto-calibration
    Keyboard lock
    Remote communication
    Bluetooth
    Communication InterfacesUSB, RS232
    LED indicator
    Display
    Keyboard8 keys
    MemoryuSD 16 GB
    Battery typeAAA
    Operating time16-24 hours
    Operating temperature range-10 °C to 50 °C
    Humidity rangeup to 95% RH
    Weight225 g
    Size232 x 56 x 20 mm
    IP rateIP 65
    Docking station requiredNo

    Sound measurements features

    StandardsClass 1: IEC 61672-1:2013, Class 1: IEC 61260-1:2014
    Type approvalsYes
    Microphone typeSV 7052E ACO
    Preamplifier typeSV 18
    Linear operating range to IEC 6167225 dBA Leq-140 dBA Peak
    Total measurement range15 dBA Leq-140 dBA Peak
    Internal noise< 15 dBA RMS
    Frequency range10 Hz - 20 kHz
    Weighting filtersA, B, C, Z, LF
    Time constantsSlow, Fast, Impulse
    Exchange rates2,3,4,5,6
    Criterion levelsselectable
    Profiles per channel3
    Min logging step100 ms
    StatisticsYes
    Statistics in octaves or third octaves
    Noise directivity detectionNo
    Audio recordingoption
    Voice coments
    1/1 octaveoption
    1/3 octaveoption
    1/6 octave
    1/12 octave
    FFT
    RT60
    Signal generator
    Tonality
    RPM
    Cross spectrum
    Intensity
    User programmable filters
