Noise Monitoring Station with SVAN 979

SV 279 PRO

SV 279PRO Noise Monitoring Station is an outdoor monitoring system based on SVAN 979 Class 1 sound level meter. The IP 65-rated case contains a lead-acid battery which operating time can be easily extended by connecting an external battery or solar panel. The intelligent charging unit enables use of a solar panel without expensive controllers and heavy batteries. The case is fitted with very robust, waterproof connectors (military standard) and is supplied with an IP 65 external power supply.

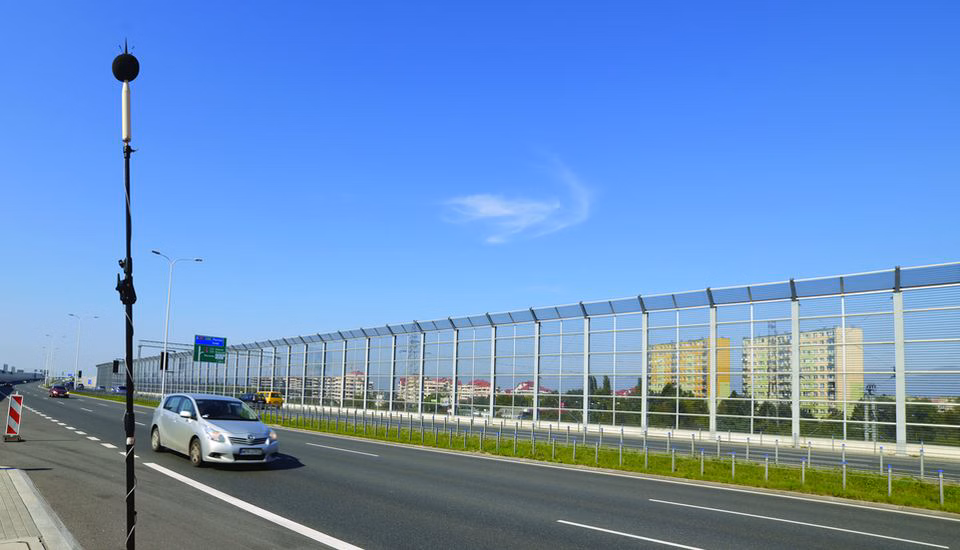

The light-weight outdoor microphone kit can be easily installed on a mast with standard mounting threads. All accessories fit conveniently into a second carrying case. The system provides broad-band results such as Leq, Max, Min and Peak with all standard weighting filters together with an incredible time-history logging feature with two adjustable logging steps.
The broad-band results can be recorded in three acoustic profiles which enable measurements to be taken with 3 different filters (e.g. A, C, Z) as well as 3 different detector time constants (e.g. Fast, Slow, Impulse). The SVAN 979 can be easily removed from the case and used as a hand-held sound level meter.
The monitoring station uses the 4G modem for the remote communication with Internet. SvanNET, the relay server, supports the connection between PC and station.
The SvanNET allows the usage of the system with all types of SIM cards, regardless if they have public or private IP. Additionally, it gives an access to a status of monitoring stations over a mobile phone or tablet.







SV279PRO Noise Monitoring Station
Noise monitoring
separator
SV279PRO Noise Monitoring Station
Environmental Monitoring
separator
SV279PRO Noise Monitoring Station
Waterproof Case

Ask for

SV 279 PRO – Noise Monitoring Station
SV 279 PRO – Noise Monitoring Station
The SV 279 PRO kit consists of two carrying cases. The main unit is a waterproof carrying case with internal 17  Ah battery and a charging unit supporting powering from an external DC or solar panel. The monitoring case is equipped with 4G modem. The SVAN 979, Class 1 sound level meter with options for frequency analysis and audio recording is installed inside the main unit. The outdoor power supply and outdoor protection kit for microphone are packed inside the second transportation case. The kit includes license for SvanPC++ software and SvanNET base service. Each kit has its factory calibration certificate and 36 months warranty upon product registration.

See all accessories

Open list

SVANPC++ Software

SVANPC++ Software

Advanced PC software for measurement data analysing and post processing

SA 279 - Outdoor microphone kit for SVAN 979

SA 279 - Outdoor microphone kit for SVAN 979

Outdoor microphone kit for SVAN979

SVANPC++EM - Environmental Module License

SVANPC++EM - Environmental Module License

The PC software module is designed for data post-processing from noise and vibration measurements. It provides all necessary functionalities for marking / removing / recalculation of the time-history records and presentation the calculated results in a form of reports (text, table and graphic forms).









    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.






      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.


      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      ]

      Technical

      Specification

      SV 279 PRO – Noise Monitoring Station

      Applications

      Sound measurements
      Environmental noise

      Hardware Features

      Number of channels 1
      Remote communication
      Bluetooth
      Communication Interfaces USB, 4G
      LED indicator
      Display
      Keyboard 9 buttons
      Memory uSD16GB
      Battery type 17 Ah / 12 V
      Operating time ca 4 days
      Operating temperature range -10 °C ÷ +50 °C
      Weight 9 kg
      Size 305 x 270 x 194 mm
      IP rate IP 65

      Sound measurements features

      Standards Class 1: IEC 61672-1:2013; Class 1: IEC 61260-1:2014
      Microphone type GRAS 40AE, 50 mV/Pa,
      Preamplifier type SV 17
      Frequency range 3.15 Hz ÷ 20 kHz
      Weighting filters A, C, Z, B, G
      Time constants Slow, Fast, Impulse
      Statistics LN
      Statistics in octaves or third octaves
      Audio recording
      1/1 octave
      1/3 octave
      1/6 octave option
      1/12 octave option
