SVAN 979

Class 1 Sound & Vibration Analyser

About

The SVAN 979 is a class 1 TYPE APPROVED sound level meter and analyser with the superior technical specifications. Its measuring range starts from as low as 12 dBA!

SVAN  979 is a device combining all necessary measurement functionalities in one hand-held tool. The instrument is dedicated for acoustic engineering applications such as sound insulation measurements, precise frequency or signal tonality analysis. In standard, this sophisticated tool has been equipped with frequency analysis in 1/1 & 1/3 octave bands, FFT analysis and audio recording for noise source recognition.

Basic kit also includes building acoustic pack: RT 60 measurement and signal generator functions.

class 1
Class 1

Type Approved

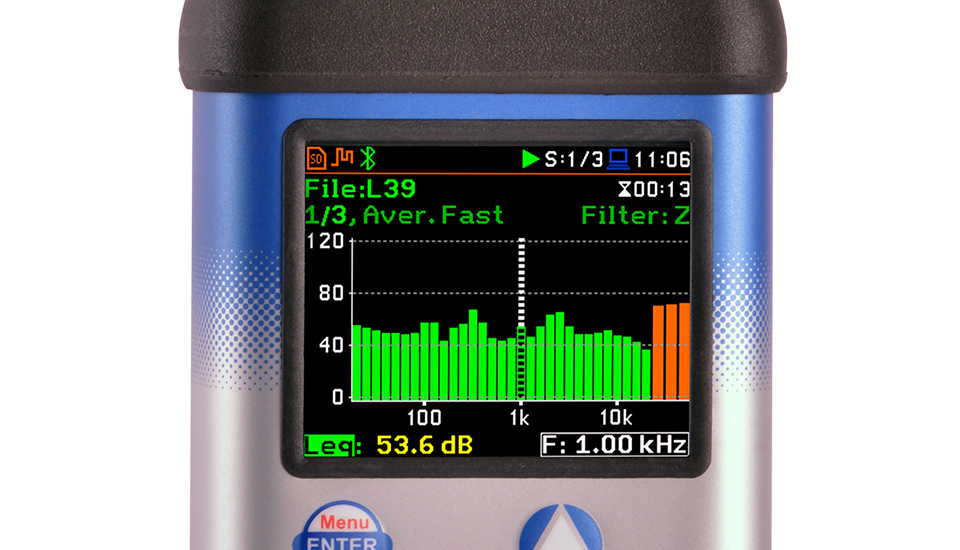

OLED Display

Main

Features

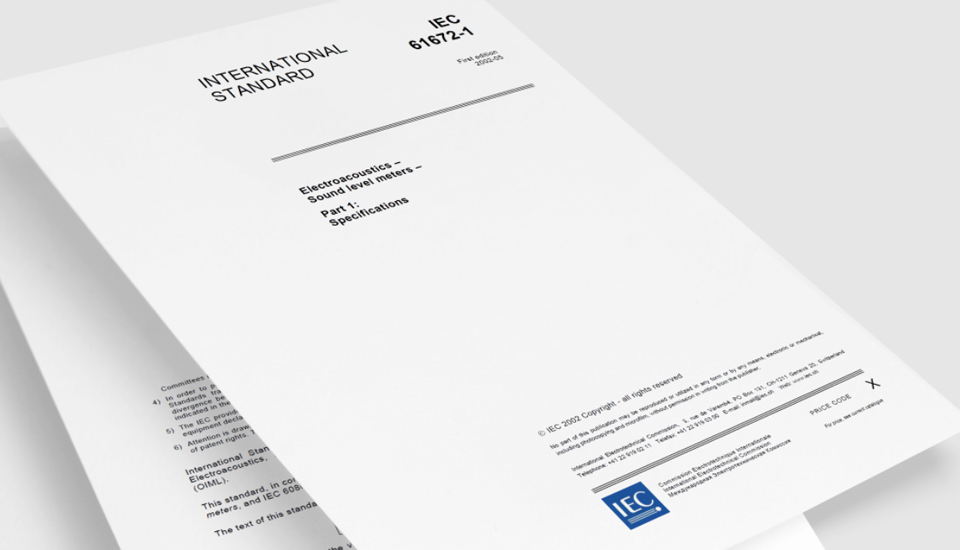

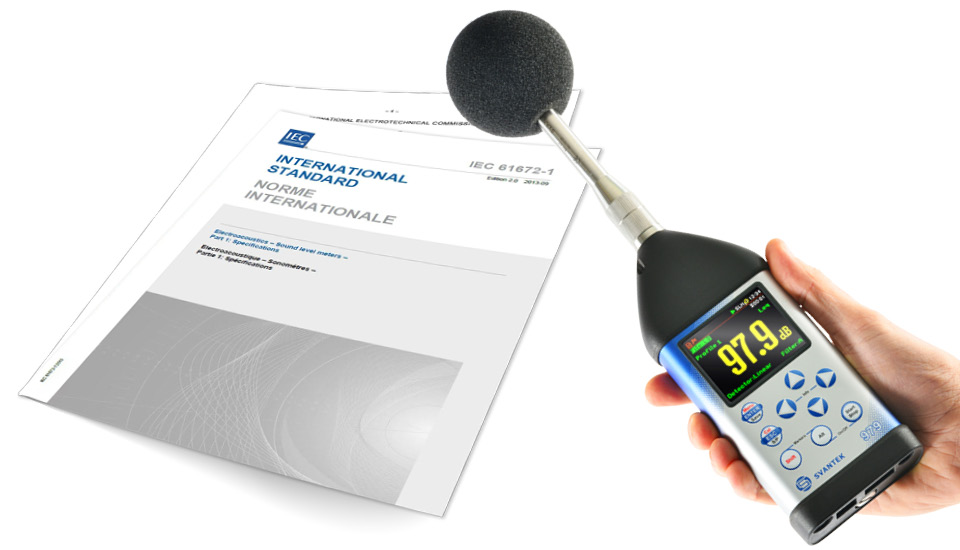

Class 1 Sound Level Meter and Analyser

type approved in accordance with IEC 61672 procedures

The IEC 61672 gives acoustical performance specifications for sound level meters in the range of human hearing. Following IEC 61672 sound level meters should have a pattern approval by an independent testing organization and the performance class of a sound level meter should be verified in periodic tests in accordance to IEC 61672-3. SVAN979 Sound Level Meter has been type approved as a class 1 sound level meter by a number of independent testing institutions worldwide in accordance to IEC 61672 procedures.

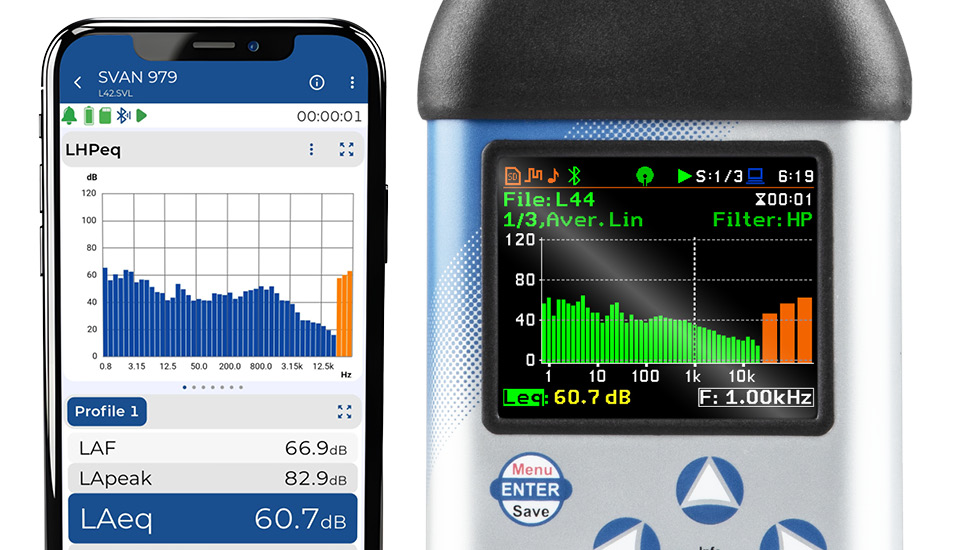

Powerful Real-Time Analyser

frequency analysis, wave recording and fast data logging

SVAN979 Sound Level Meter is a complete and professional meter for sound and vibration engineers. In a standard version SVAN979 Sound Level Meter offers a number of advanced features including frequency analysis in 1/1 & 1/3 octave bands, FFT analysis and wav recording. Optionally it can analyse tonality, STIPA or even 1/6 & 1/12 octave analysis in real-time! Moreover, results can be logged as a time-history with a step of 2ms. Thanks to implementation of G weighting filter, instrument is a perfect choice for measurements on wind farms where infrasound measurements are often necessary. Basic kit also includes building acoustic pack: RT 60 measurement and signal generator functions.
SVAN979 Sound Level Meter

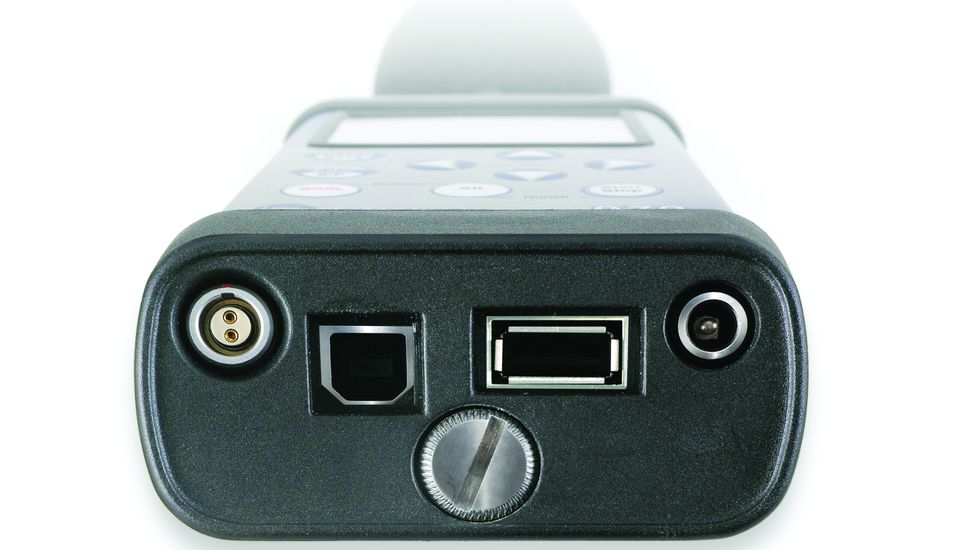

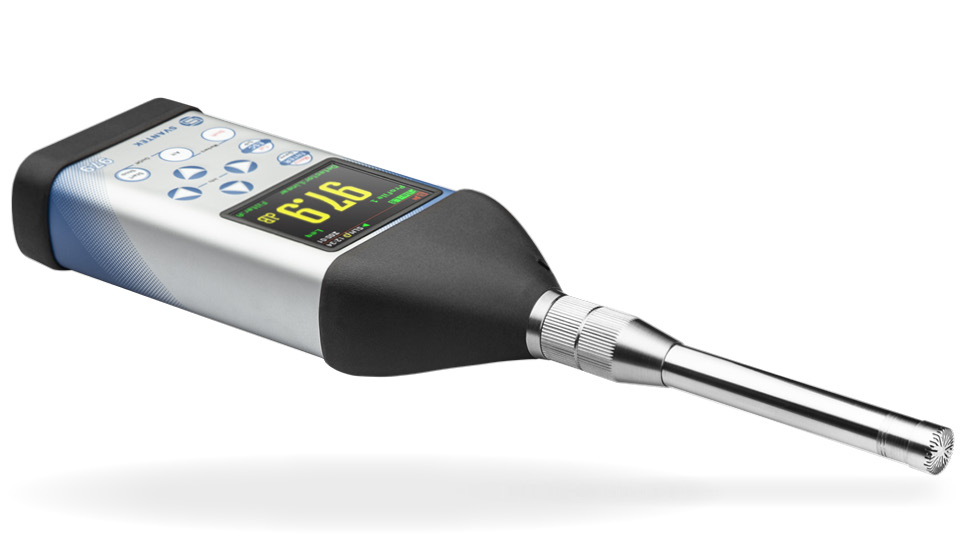

Hardware dedicated for Professionals

extremely robust and resistant housing, reinforced protection

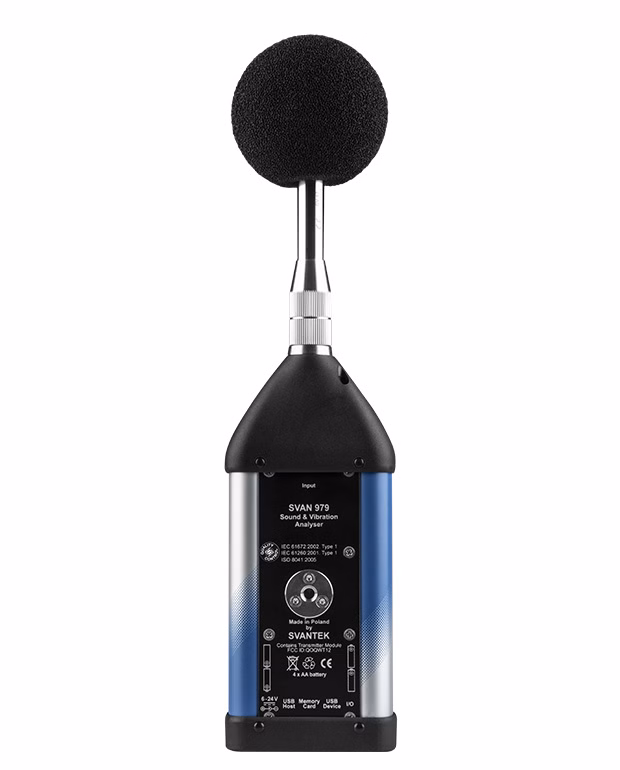

SVAN979 Sound Level Meter has been designed for professionals, its aluminium housing gives the comfort of a secure grip to the user and protects the hardware against the electromagnetic interference. The preamplifier has been reinforced with a metal collar for additional protection of the measurement path. Signal input consists of high quality omnidirectional GRAS 40 AE microphone allowing sound measurements from 3.15 Hz. Thanks to SV 17 preamplifier it is also possible to use microphones requiring 200 V polarisation voltage. The hardware also features a super contrast OLED 2.4” color display, built-in Bluetooth® interface for smartphone applications. SVAN979 Sound Level Meter is powered from 4xAA rechargeable batteries which come with a dedicated charger. External power supply is also provided. What is appreciated by experienced professionals - batteries can be exchanged on site.
SVAN979 Sound Level Meter

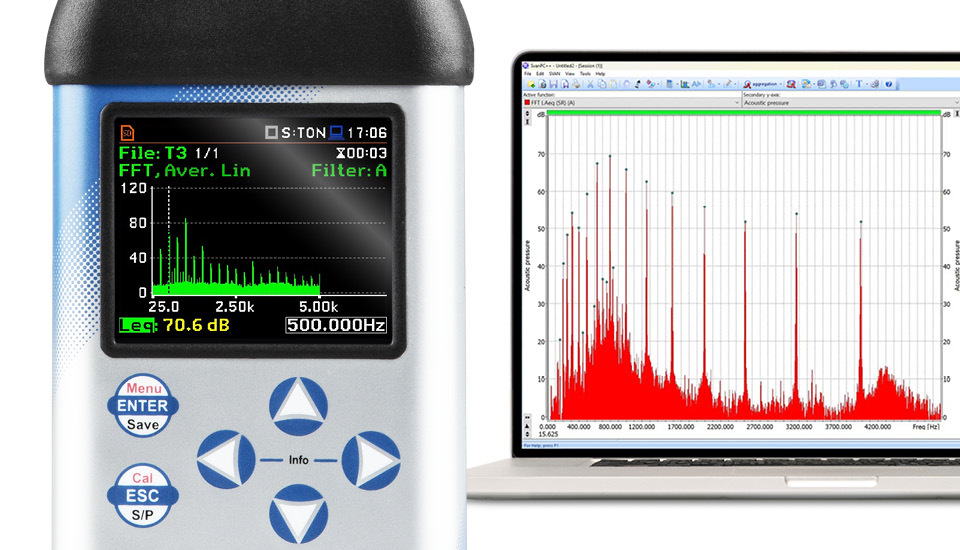

Tonality

is a common sound quality analysis in relation to human hearing.

Is a common sound quality analysis in relation to human hearing. Tonality determines annoying tones considered as a negative attribute of sound and calculates penalty value in dB which should be added to the noise level to indicate its annoyance. In accordance with ISO 1996-2 tonal analysis is obligatory if noise characteristics includes audible tones.
SVAN979 Sound Level Meter

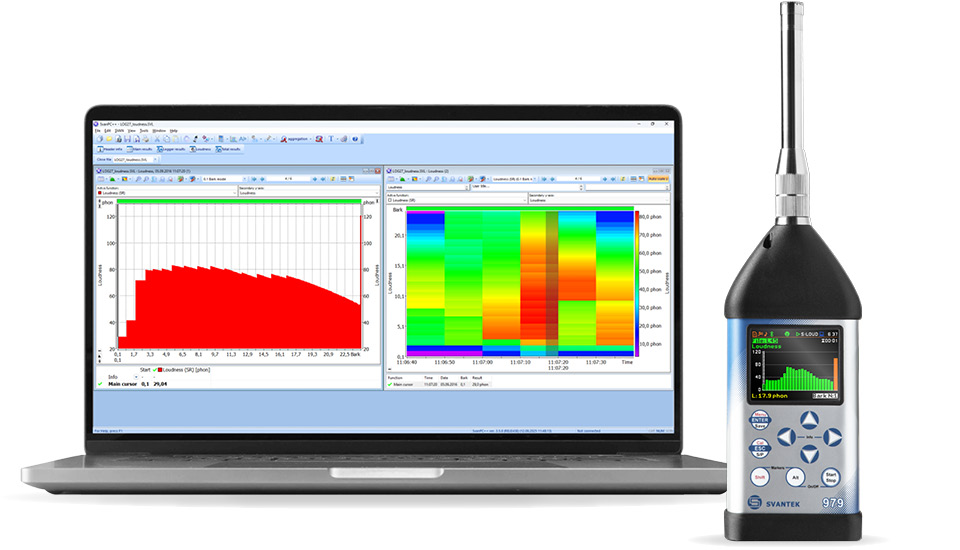

Loudness

is a measure of sound that corresponds to the subjective perception of humans, by taking into account the sensitivity of human hearing for different frequencies.

Is a measure of sound that corresponds to the subjective perception of humans, by taking into account the sensitivity of human hearing for different frequencies (Zwicker method according to ISO 532B standard). In many cases, loudness has been proven to be more reliable than A-weighted levels (and time history) in quantifying relatively low-level broadband sounds in agreement with subjective impression.
SVAN979 Sound Level Meter

Main

Applications

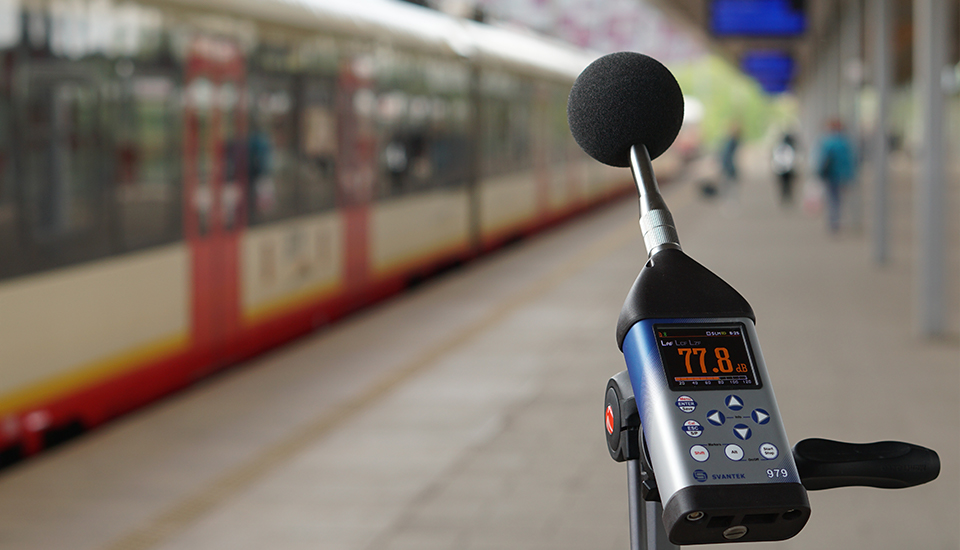

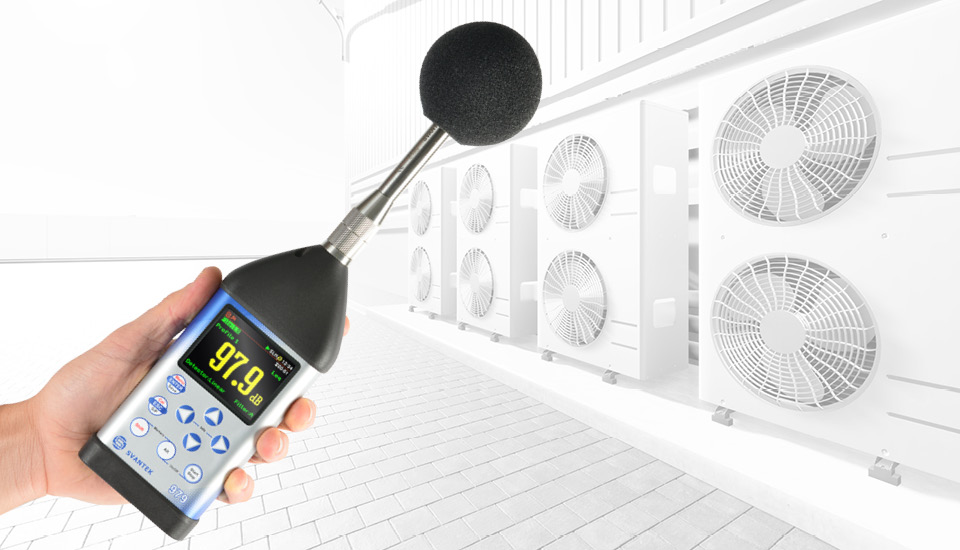

Sound measurements

all in one hand-held tool

The instrument can be used as a hand-held or easily attached to a tripod. For monitoring applications it can be placed in dedicated waterproof case. For building acoustic it can be operated from a smartphone application. The wide frequency range from 3.5 Hz and low internal noise of 12 dBA enable to use the SVAN 979 for acoustic engineering applications both in workplaces and in environment.
Read more

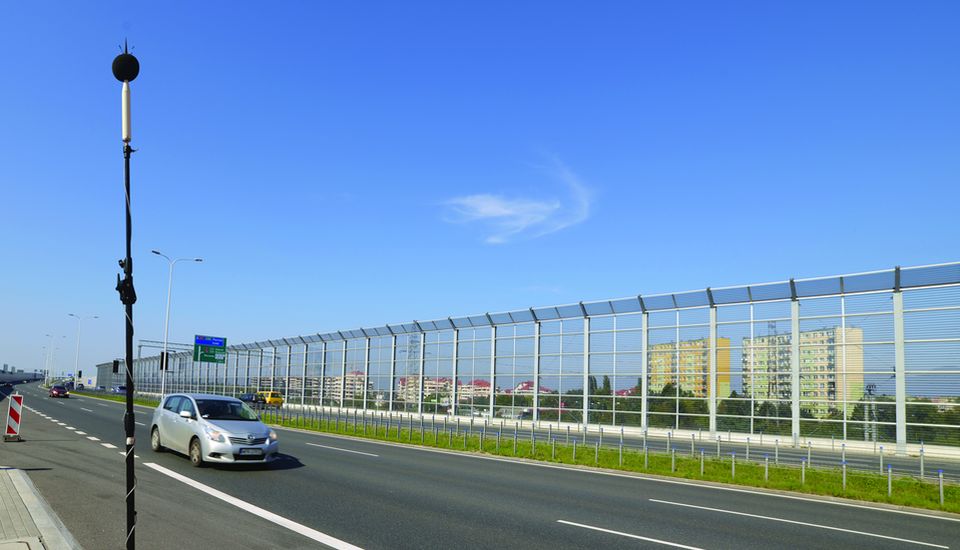

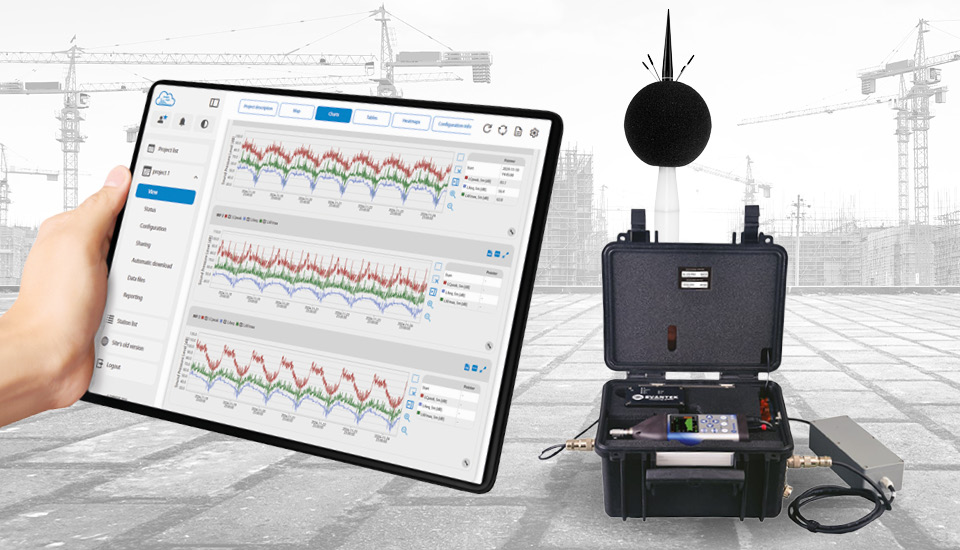

Environmental noise

upgrade to a monitoring station

With optional accessories SVAN 979 can be upgraded to a noise monitoring station. For such applications the instrument is housed in a dedicated IP 65-rated case that contains a lead-acid battery which operating time can be easily extended by connecting an external battery or solar panel. The intelligent charging unit enables use of a solar panel without expensive controllers and heavy batteries. The case is fitted with very robust, waterproof connectors (military standard) and is supplied with an IP 65 external power supply. The system is equipped with a 4G modem that supports the connection between PC and station.
Read more

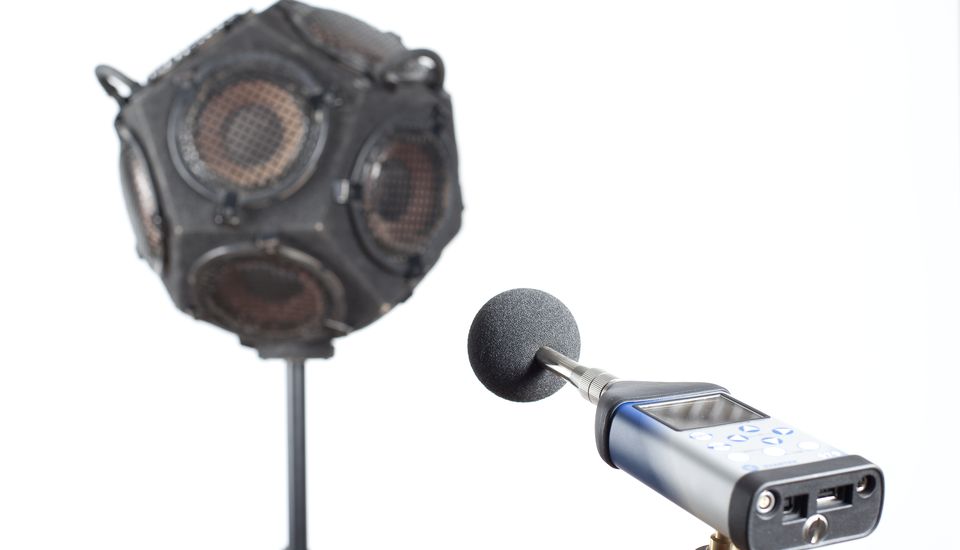

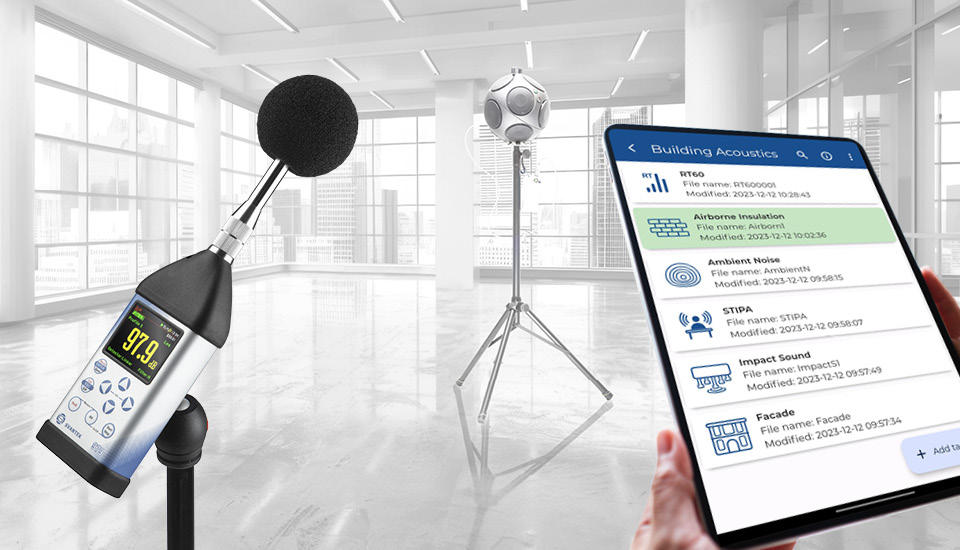

Building acoustics

use the smartphone app

One big advantage of SVAN 979 is the ability to make building acoustics measurements. The high accuracy along with a millisecond spectra logging allows users to perform all the measurements necessary to obtain facade, airborne or impact sound insulation results. SVAN 979 is proving to be invaluable for the measurement of building acoustics with their predefined setups making measurement at multiple points both easy and fast. Both the instrument and the sound source can be controlled remotely with the dedicated smartphone application.
Read more

Related

Videos

Building Acoustic App

Ask for

SVAN 979 – Class 1 Sound & Vibration Level Meter

SVAN 979 – Class 1 Sound & Vibration Level Meter
The kit consists of SVAN   979 Class 1 sound & vibration level meter with a detachable preamplifier SV 17 and high quality omni-directional GRAS 40AE microphone, compliant to IEC 61094-4. The list of accessories includes: SA 143 carrying case, SA 22 windscreen, 8 GB microSD card, four rechargeable AA batteries, USB cable, and pendrive with user manual. Each SVAN     979 has its factory calibration certificate and 36 months warranty card upon product registration.

Suggested options and accessories

See all

SVANPC++_BA - Building Acoustic Module License

SVANPC++_BA - Building Acoustic Module License

The optional PC software module provides a very powerful extension to the mobile application with the advanced calculations of reverberation time and sound insulation.

SV 80 - Accelerometer 100 mV/g, TNC top, 10-32 mounting hole

SV 80 - Accelerometer 100 mV/g, TNC top, 10-32 mounting hole

Accelerometer 100 mV/g, TNC top, 10-32 mounting hole

SA 47 - Carrying bag for 9xx and accessories

SA 47 - Carrying bag for 9xx and accessories

Carrying bag for 9xx and accessories (fabric material)







    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.
    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.
    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.

    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.




      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.
      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      Technical

      Specification

      SVAN 979 – Class 1 Sound & Vibration Level Meter

      Applications

      Sound measurements
      Environmental noise
      Occupational noise
      Building acoustics
      Hand-arm vibration
      Whole-body vibration
      Machine vibration
      Building/ground vibration

      Hardware Features

      Number of channels 1
      Self-vibration detection
      Auto-calibration
      Keyboard lock
      Remote communication
      Bluetooth
      Communication Interfaces USB, I/O, RS232, Bluetooth
      LED indicator
      Display
      Keyboard 9 keys
      Memory uSD 16 GB
      Battery type AA
      Operating time 8-12 hours
      Operating temperature range -10 °C to 50 °C
      Humidity range up to 90 % RH
      Weight 600 g
      Size 310 x 79 x 39 mm

      Sound measurements features

      Standards Class 1: IEC 61672-1:2013, Class 1: IEC 61260-1:2014
      Type approvals Yes
      Microphone type G.R.A.S. 40AE
      Preamplifier type SV 17
      Linear operating range to IEC 61672 22 dBA Leq÷140 dBA Peak
      Total measurement range 12 dBA Leq÷140 dBA Peak
      Internal noise <12 dBA Leq
      Frequency range 3.15 Hz ÷ 20 kHz
      Weighting filters A, B, C, Z, G
      Time constants Slow, Fast, Impulse
      Profiles per channel 3
      Min logging step 2 ms
      Statistics Ln (L1-L99)
      Statistics in octaves or third octaves
      Noise directivity detection
      Audio recording
      Voice coments
      1/1 octave
      1/3 octave
      1/6 octave option
      1/12 octave option
      FFT
      RT60
      STIPA option
      Signal generator
      Tonality option
      RPM option
      Cross spectrum
      Intensity
      User programmable filters option

      Vibration measurement features

      Standards ISO20816
      Number of channels 1
      Sensor type IEPE
      Input type IEPE
      1/1 octave
      1/3 octave
      WAV recodrning
      FFT
      RPM option
