Svantek » Products » SV 130 – Real-Time Whole-Body Vibration Monitor

Real-Time Whole-Body Vibration Monitor SV 130

Name: Real-Time Whole-Body Vibration Monitor SV 130
Brand: SVANTEK

The SV 130 is a plug-and-play remote dosimetry set for automated, unattended whole-body vibration monitoring of operators in vehicles. Built around the SVANTEK SV 100A whole-body vibration dosimeter and a weatherproof SD 311AW system controller, it measures daily vibration exposure on the operator’s seat in accordance with ISO 2631-1, without requiring any action from the worker. Powered directly from the vehicle’s 12 V supply, the set starts measuring automatically the moment the vehicle is powered on. Measurement data is transmitted to the SvanNET cloud platform through the controller’s GSM, Wi-Fi or Ethernet connectivity, where it is available for live preview and later post-processing within a dedicated Remote Dosimetry project.

Whole-Body Vibration

Remote Monitoring

Plug & Play

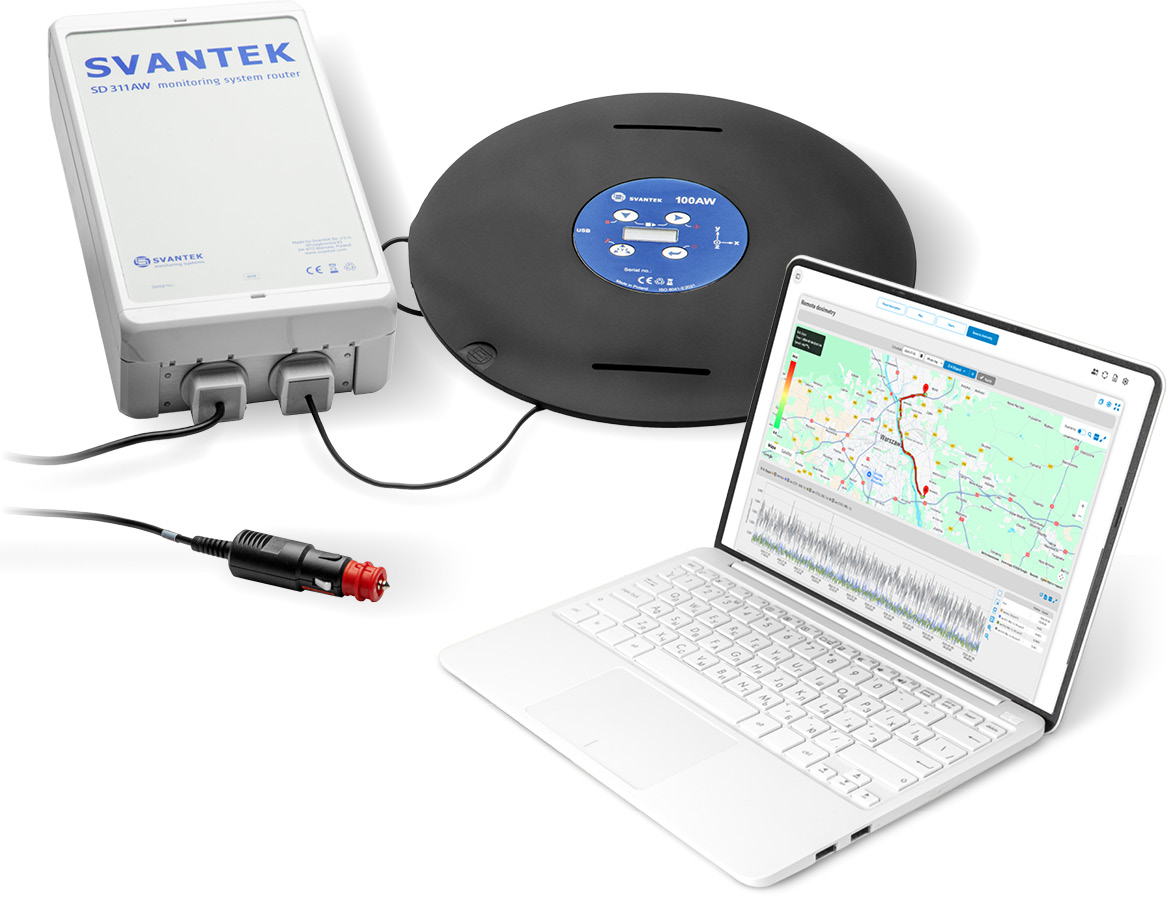

Automatic, Unattended Measurement: the set powers up and starts measuring whole-body vibration the moment the vehicle is switched on — true plug & play, with no operator involvement.
ISO 2631-1 Compliant Exposure Assessment: delivers A(8) daily exposure in RMS, VDV and Points, in line with ISO 2631-1 and the EU Vibration Directive 2002/44/EC.
Based on the Proven SV 100A: inherits the full functionality of the SV 100A whole-body vibration dosimeter — triaxial MEMS accelerometer and force-sensor operator detection — adapted for permanent, wired remote operation.
Operator Detection System (ODS): built-in force sensors ensure vibration exposure is calculated only while the driver is in actual contact with the seat, eliminating invalid data.
Flexible Remote Connectivity: the SD 311AW controller (based on the Teltonika RUT956) transmits data over GSM, Wi-Fi or Ethernet, with GNSS positioning; connectivity is chosen to match site availability.
12 V Vehicle Power: powered from the vehicle’s 12 V socket (cigarette lighter), enabling continuous in-vehicle monitoring.
Live Data & Post-Processing in SvanNET: results stream to a dedicated Remote Dosimetry project in SvanNET for live preview, secure storage and later analysis.
Weatherproof Controller: the SD 311AW is housed in an environmental enclosure with cable glands for reliable operation in demanding vehicle environments.

Features

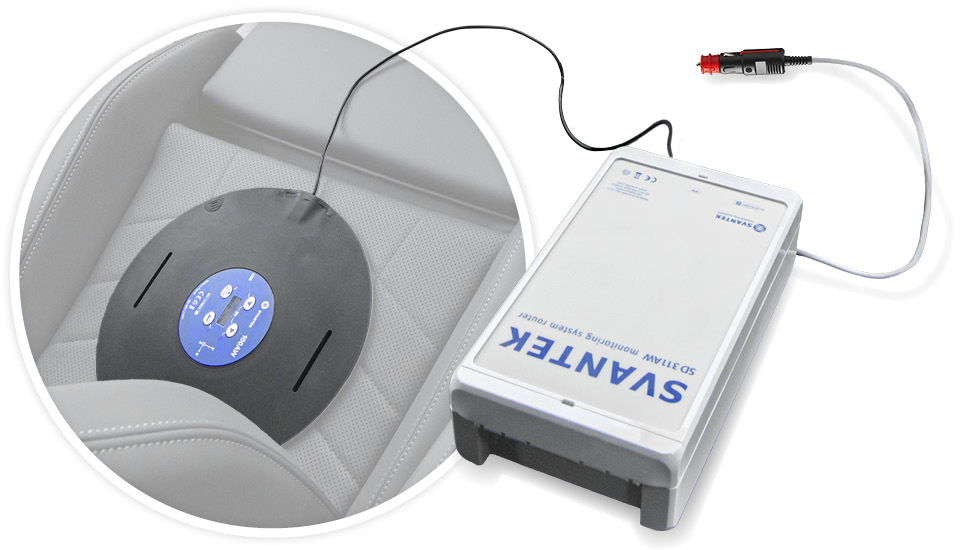

Plug & Play Remote Dosimetry

Automatic Start on Vehicle Power-Up

The SV 130 is designed around a simple plug-and-play principle. Once installed in the vehicle and connected to the 12 V supply, the set powers up and begins measuring whole-body vibration automatically. No interaction from the driver or operator is required at any point.

SV130 Plug & Play Remote Dosimetry SVANTEK Sound and Vibration Whole-Body Vibration Remote Dosimetry Set

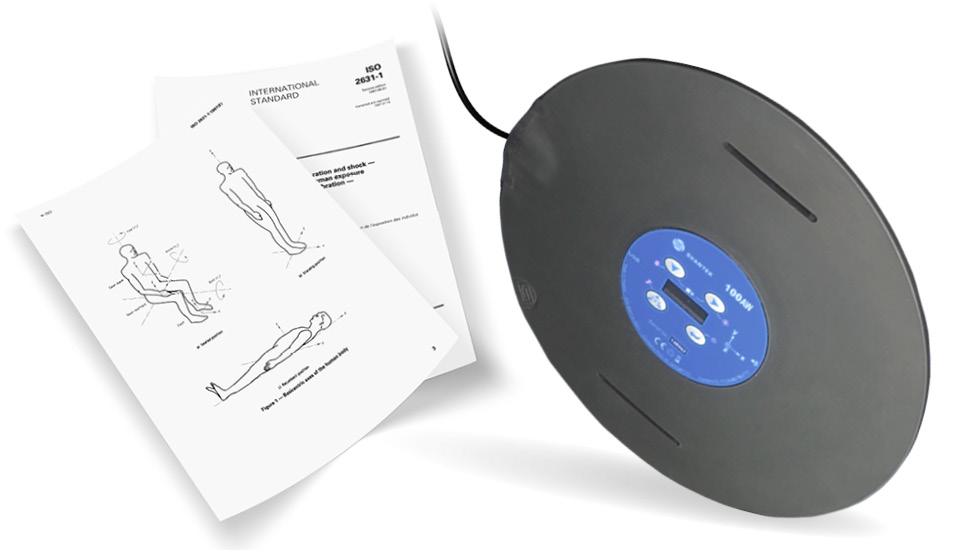

Whole-Body Vibration Exposure

A(8) Assessment to ISO 2631-1

The set measures the A(8) daily vibration exposure and the overall vibration total value on the operator's seat. Results are expressed in m/s² (RMS), m/s^1.75 (VDV) and Points, in accordance with ISO 2631-1 and the EU Vibration Directive 2002/44/EC. Measurement relies on the SV 100A dosimeter's triaxial MEMS accelerometer.

SV130 Whole-Body Vibration Exposure SVANTEK Sound and Vibration Whole-Body Vibration Remote Dosimetry Set

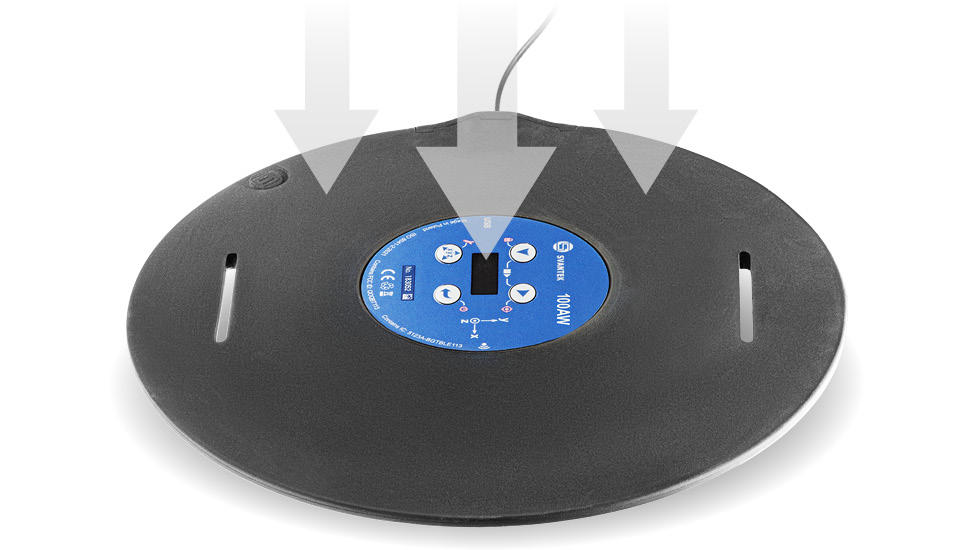

Operator Detection System

Force Sensors Eliminate Invalid Data

Built-in force sensors in the SV 100AW detect the presence of the driver on the seat. Vibration exposure is calculated only during actual contact with the vibrating surface, removing idle periods that would otherwise distort the A(8) result. This ensures the daily exposure reflects genuine working conditions.

SV130 Operator Detection System SVANTEK Sound and Vibration Whole-Body Vibration Remote Dosimetry Set

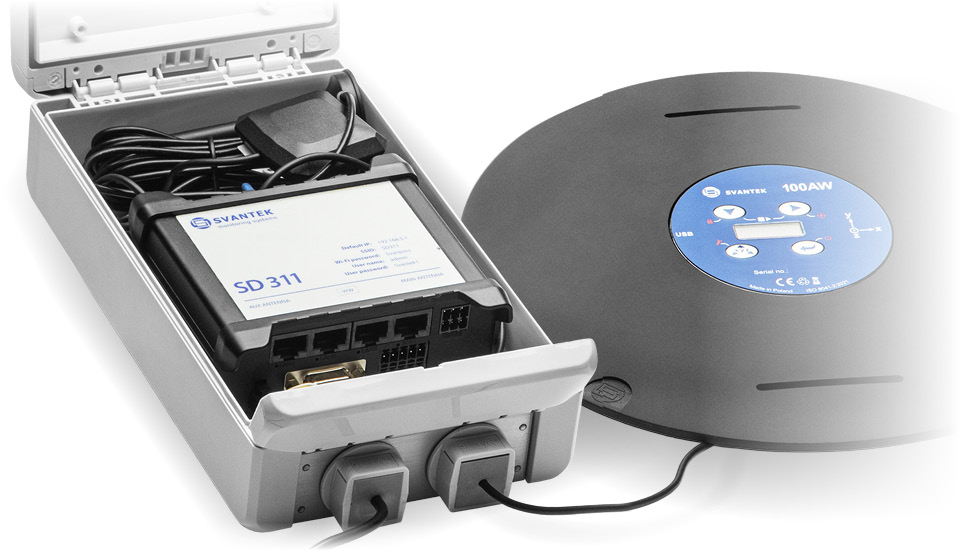

Flexible Remote Connectivity

GSM, Wi-Fi, Ethernet and GNSS

The SD 311AW controller, based on the Teltonika RUT956, provides GSM, Wi-Fi, Ethernet and GNSS connectivity. The connectivity type is selected according to availability and site conditions — configured remotely via the SD 311AW settings (Wi-Fi) or by inserting a SIM card. A SIM card is not included with the set.

SV130 Flexible Remote Connectivity SVANTEK Sound and Vibration Whole-Body Vibration Remote Dosimetry Set

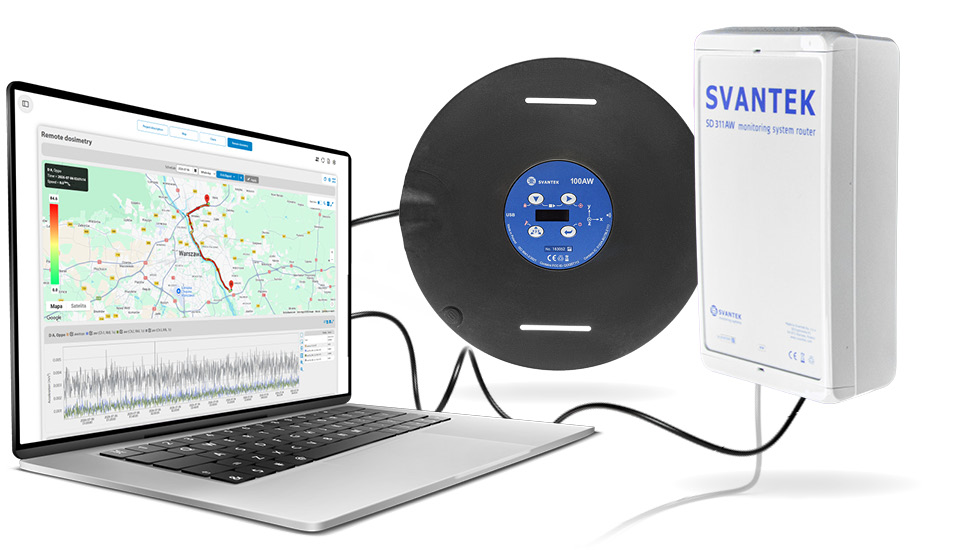

Cloud Monitoring via SvanNET

Live Preview and Storage

Measurement data is transmitted to the SvanNET cloud platform and collected in a pre-configured Remote Dosimetry project. Users can preview data live and access stored results for later post-processing. Centralised access means exposure data from vehicles can be reviewed from anywhere via a web browser.

SV130 Cloud Monitoring via SvanNET SVANTEK Sound and Vibration Whole-Body Vibration Remote Dosimetry Set

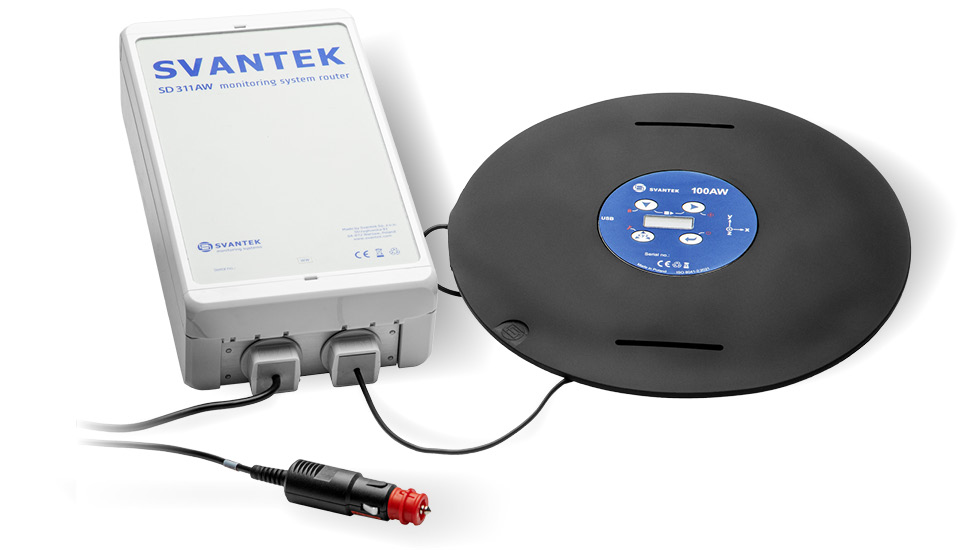

Wired Reliability

Permanent Cable Connection for Stable Data Transfer

To keep the link to the controller stable, the SV 100AW is a wired variant: its Bluetooth module is replaced by a permanently mounted cable, its keypad is locked and autostart is enabled. This guarantees uninterrupted data transfer between the dosimeter and the SD 311AW controller, delivering dependable, long-term unattended monitoring.

SV130 Wired Reliability SVANTEK Sound and Vibration Whole-Body Vibration Remote Dosimetry Set

Plug & Play Remote Dosimetry

Automatic Start on Vehicle Power-Up

Whole-Body Vibration Exposure

A(8) Assessment to ISO 2631-1

Operator Detection System

Force Sensors Eliminate Invalid Data

Flexible Remote Connectivity

GSM, Wi-Fi, Ethernet and GNSS

Cloud Monitoring via SvanNET

Live Preview and Storage

Wired Reliability

Permanent Cable Connection for Stable Data Transfer

Download the SV 130 Catalogue for complete set information

Our product catalogue provides detailed technical specifications and in-depth information on the SV 130's functionalities. Inside, you will find complete details on measured results, available filters, measurement ranges, power options and connectivity. The catalogue also contains useful information on SvanNET integration and system setup.

Download Catalogue (PDF)

SV130 Whole-Body Vibration Remote Dosimetry Set Data Sheet SVANTEK

Applications

Remote Whole-Body Vibration Monitoring in Vehicles

Unattended Exposure Assessment for Mobile Machinery

The SV 130 is the ideal solution for automated whole-body vibration monitoring of drivers and operators of vehicles and mobile machinery. Its plug-and-play design and 12 V vehicle power make it suitable for permanent installation across fleets, where exposure is assessed continuously without disrupting work. Live SvanNET access allows compliance with ISO 2631-1 and the EU Vibration Directive to be monitored across multiple vehicles at once.

SV130 Whole-Body Vibration Remote Dosimetry Set application SVANTEK Sound and Vibration

Check Availability & Price

Products in the enquiry (1)

I would like an offer for selected products

Contact via email Read more...

I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

Contact via phone Read more...

I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

Receiving newsletter Read more...

I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.

* Contact by authorised Svantek Distributor Read more...

I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

Specifications

SV 130 – Real-Time Whole-Body Vibration Monitor

Applications

Whole-body vibration

Hardware Features

Number of channels

Communication Interfaces

GSM, WiFi

Display

Keyboard

4 buttons

Memory

8 GB

Operating temperature range

-10 °C to 50 °C

Humidity range

up to 90 % RH, non-condensed

Weight

1200 grams (SV 100AW Dosimeter and SD 311AW Controller)

Vibration measurement features

Standards

ISO 2631-1, ISO 8041-2:2021

Number of channels

Sensor type

Tri-axial accelerometer MEMS

Measurement range

0.01 m/s² RMS ÷ 157 m/s² PEAK

Frequency range

0.1 Hz ÷ 180 Hz

WAV recording

option
