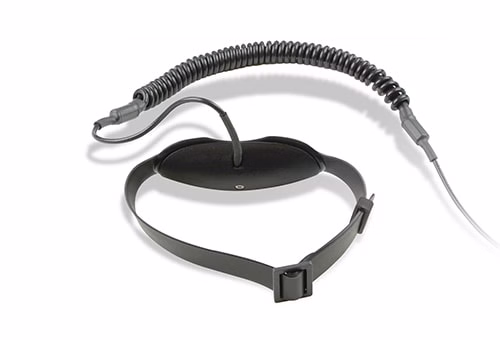

SV 105DF – Hand-arm vibration accelerometer with force detection for SV 106D
SV 105DF: Hand-arm vibration accelerometer with force detection for SV 106D human vibration meter. The accelerometer has TEDS memory that remembers the calibration factor transferred to the SV 106D instrument. The accelerometer is supplied with three adapters to perfectly match the grip of different vibrating tools. Each adapter includes an adjustable rubber strap for firmly and comfortably attaching the accelerometer to the human’s hand. This solution significantly limits disturbances to the operator, who doesn’t have to worry about holding the accelerometer.
The accelerometer is designed according to ISO 5349-2 to measure simultaneous triaxial vibration and contact force. The use of contact force enables to exclude periods of time when a hand is not with a contact with the vibrating tool.
For in-situ calibration and periodic verification, the SA 105D adapter (option) is necessary.
