SV 102A+

Class 1 Dual-Channel Noise Dosimeter

About

Class 1 SV102A+ Dual Channel Dosimeter is presenting new approach to occupational health and safety acoustic monitoring task. This dosimeter can be also used as a dual-channel class1 sound level meter and real-time 1/1 octave & 1/3 octave analyser. Octave analysis, providing direct data for the design of the ear-protectors, together with audio events recording function show the new reference standard on acoustic dose measurement field. The binaural dose measurement and octave analysis are simultaneously performed by this compact-size instrument. Three acoustic profiles per channel allow parallel measurements with independently defined filters and RMS detector time constants. Advanced time-history logging in each profile, together with spectra saving and Audio Events Recording provide a complete information about the measured signal. Data is stored in large 8 GB memory and can be easily downloaded to any PC using USB interface and Supervisor software.

The small and compact SV 15 preamplifier together with special mounting clip and dedicated headband enables an easy attachment of the microphone in extremely short distance to human ears. Calibration by measurement can be easily performed by direct usage of common acoustic calibrators.

SV102A+ Dual Channel Dosimeter is also able to perform the measurement inside human ear – with the usage of SV 25S – smart microphone with an automatic calibration function (TEDS). The SV 102A together with SV 25S are designed for individual real-world test of the earmuffs noise reduction ratio by means of MIRE technique (Microphone-In-Real-Ear)-measurements under headphones or earmuffs. With a special adapter, SV 25S can be also calibrated with available acoustic calibrators.

Svantek SV102A+
Dual Channel

Class 1

Bestseller

Main

Features

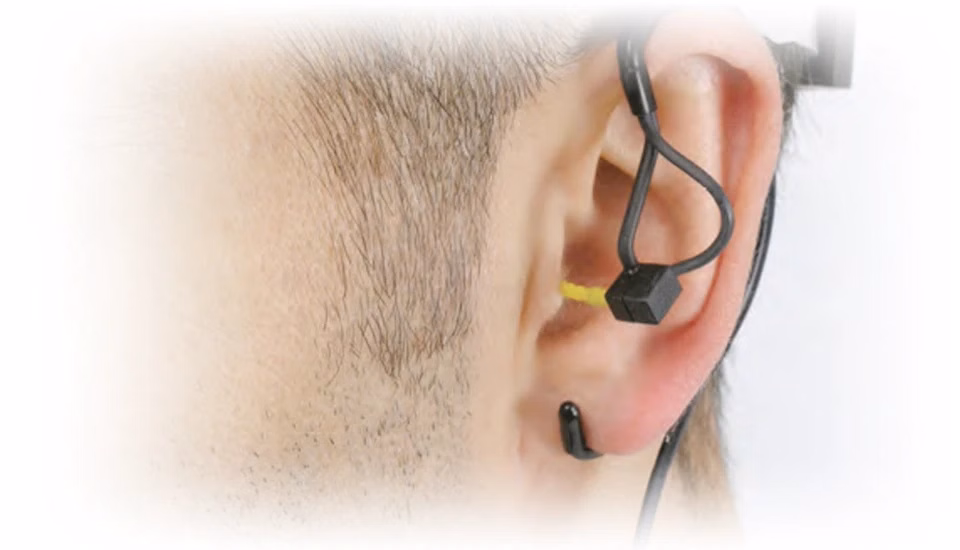

MIRE measurement technique

Microphone in real ear measurements

ISO 11904-1 MIRE (microphone in real ear) measurement takes sound measurements from the ear and performs the one-third octave band analysis. The SV 102A+ can perform such analyses using a special microphone probe SV 25S placed at the entrance of the ear canal. MIRE can be used to measure noise exposure in situations where normal dosimetry methods are inappropriate such as in a telephone call center where the sound comes from headphones. The option of MIRE measurements requires the SV 25S MIRE microphone and 1/3 octave analysis.
SV102A+ Dual Channel Dosimeter

Class 1 accuracy

Noise dosimeter and class 1 sound level meter in one device

The meter meets CLASS 1 requirements of IEC 61672 and it can be used when measuring at very low temperatures (from -10 'C) or when noise is dominated by the high frequencies as it is recommended by ISO 9612 hence the sampling rate of SV 102A+ is 48 kHz.
Svantek IEC

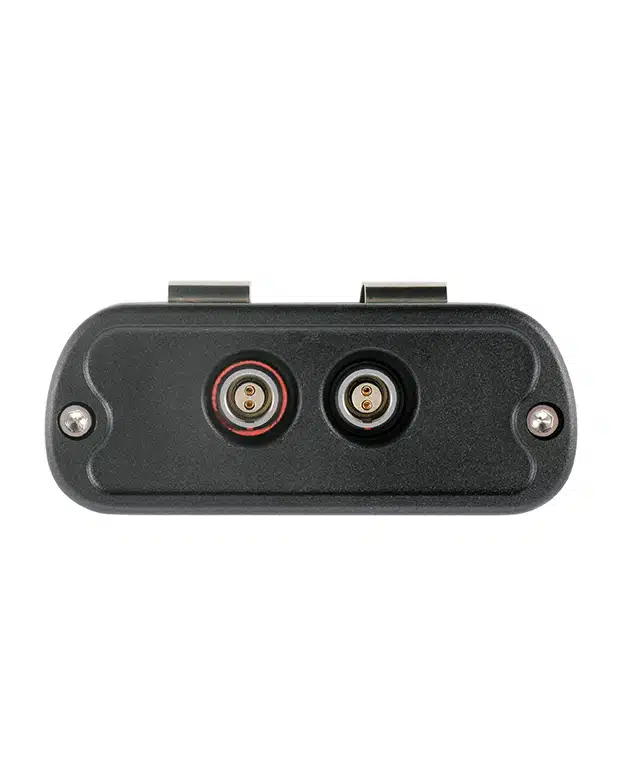

Dual-channel input

Class 1 measurements with two microphones

Two input channels of SV 102A+ enables possibility of simultaneous usage of two microphones which can be placed on both sides of the human head. With the use of MIRE microphone, it is also possible to place one microphone on the shoulder and the other inside the ear, which is used for verification of attenuation of hearing protectors or various headsets (e.g. military pilots).
SV102A+ Dual Channel Dosimeter

Main

Application

Occupational Noise

Class 1 noise measurements at work

The SV 102A+ is a unique class 1 dual-channel noise dosimeter designed for the accurate measurement of noise exposure in workplaces dominated by high frequencies and in cold temperatures below zero. Together with the MIRE (microphone in real ear) measurement option in accordance to ISO 11904-1 the the two-channel SV 102A+ provides a complete tool for noise measurement at work.
Read more
SV102A+ Dual Channel Dosimeter

Ask for

SV 102A+ Dual Channel Noise Dosimeter

SV 102A+ Dual Channel Noise Dosimeter
The standard SV 102A+ kit includes SV15 preamplifier with cable, SV 7052E microphone, 2x AA batteries, 8 GB memory card and a USB cable for communication with PC. Each SV 102A+ has its factory calibration certificate and a 36-MONTH WARRANTY upon product registration. The standard kit also includes license for PC software.

See all accessories

Open list

SF102A+_3OCT - License of 1/1 & 1/3 octave analysis for SV 102A+

SF102A+_3OCT - License of 1/1 & 1/3 octave analysis for SV 102A+

License of 1/1 & 1/3 octave analysis for SV 102A+

SF102A+_REC - License of Audio events recording for SV 102A+

SF102A+_REC - License of Audio events recording for SV 102A+

License of Audio events recording for SV 102A+

SV 15 - Dosimeter preamplifier with TEDS, integrated cable

SV 15 - Dosimeter preamplifier with TEDS, integrated cable

Dosimeter preamplifier with TEDS, integrated cable (microphone not included)







    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.
    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.
    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.

    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.




      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.
      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      Technical

      Specification

      SV 102A+ Dual Channel Noise Dosimeter

      Applications

      Sound measurements
      Occupational noise

      Hardware Features

      Number of channels 2
      Auto-calibration
      Keyboard lock
      Remote communication
      Bluetooth
      Communication Interfaces USB
      LED indicator
      Display
      Keyboard 4 buttons
      Memory 8 GB
      Battery type Two AA batteries (alkaline)
      Operating time > 16 h
      Operating temperature range from -10'C to 50'C
      Humidity range up to 90 % RH
      Weight 260g
      Size 95 x 83 x 33 mm
      Docking station required

      Sound measurements features

      Standards IEC 61252; ANSI S1.25-1991; Class 1: IEC 61672-1:2013, ISO 11904-1
      Microphone type ACO SV 7052E, prepolarised, 1/2” ; SV 25S, special microphone with probe for MIRE
      Preamplifier type SV 15
      Linear operating range to IEC 61672 45 dBA Leq÷ 141 dBA Peak
      Frequency range 20 Hz ÷ 20 kHz
      Weighting filters A, C and Z
      Time constants Slow, Fast, Impulse
      Statistics in octaves or third octaves
      Audio recording option
      Voice coments
      1/1 octave option
      1/3 octave option
