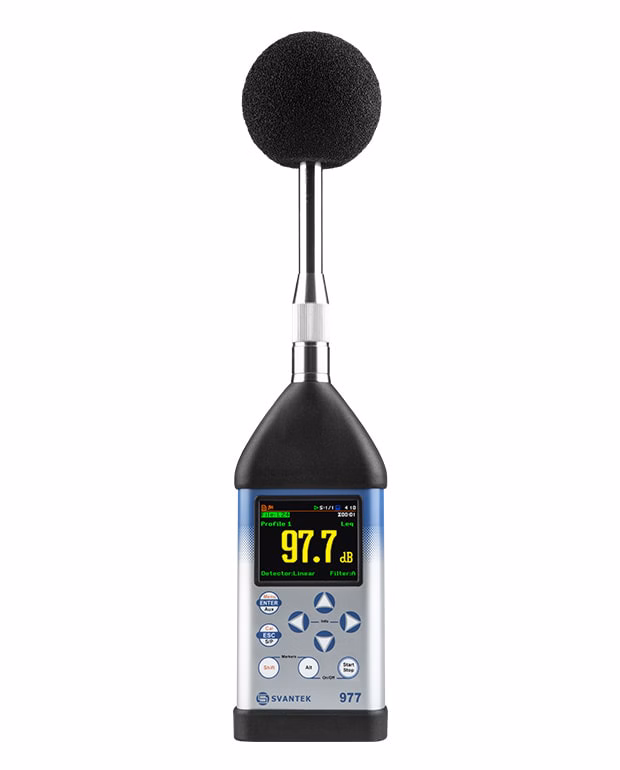

Sound and Vibration Meter

SV 977

The SV 977 Sound Meter is a multi-purpose instrument that combines the capabilities of a Class 1 Sound Level Analyzer, Vibration Meter, and Ultrasound Meter in a single device. The sound meter is highly advanced and versatile instrument that is suitable for a wide range of measurement applications, including building acoustics, occupational noise, and environmental noise.

Why Professionals Choose the SV 977 Sound Meter?

The SV 977 sound and vibration meter is a powerful and reliable tool that is suitable for professionals who need to measure sound and vibration levels in a variety of applications. It is important to note that the SV 977 is not only used by professionals in the UK, but also by professionals around the world in a variety of industries and fields. The SV 977 is a globally recognized and respected instrument for sound and vibration measurement, and is used by professionals in a range of applications and locations.

class 1
Class 1
separator

Bestseller
separator
mobile app sound level meter
Mobile App

Sound Meter

Features

background

Compliance with standards

Class 1 accuracy following BS EN 61672-1:2013

The SV 977D meets the Class 1 requirements for precision of various international standards, including BS EN 61672-1 Class 1 and ANSI S1.4. With an optional microphone, SV 977 provides analysis of the ultrasounds up to 40 kHz. Limits of permissible ultrasound levels are usually expressed in terms of Leq and Max values specified in 1/3 octave bands for 20 kHz, 25 kHz, 31.5 kHz and 40 kHz.
sv 977-sound-meter-and-analyser-octave-band
background

High Quality Sound Meter

SV 977 is a high-quality sound level meter

SV 977 is a high-quality sound level meter that is designed to meet the needs of professionals working in a variety of fields, including occupational health and safety, environmental noise assessment, and building acoustics. The sound meter uses a detachable preamplifier and a high-quality omni-directional microphone, both of which are compliant with relevant international standards. This helps to ensure that the meter provides accurate and reliable measurements.
high quality sound meter
background

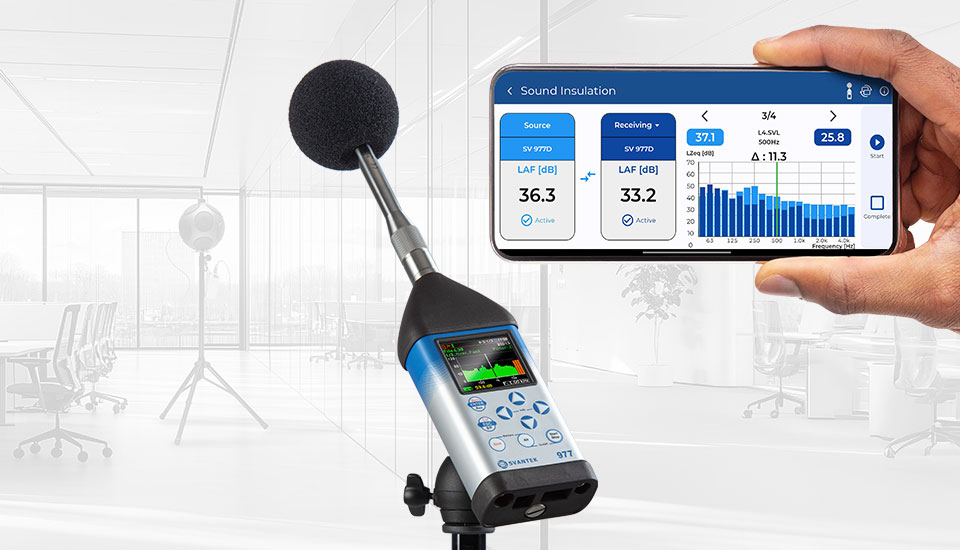

Building Acoustics App

Svantek's Building Acoustics app approved by SITMA

The built-in Bluetooth interface of the Svantek SV 977 Sound Level Meter can be used to connect the meter to a smartphone via a dedicated application. Svantek's Building Acoustic (BA) Assistant Smartphone Application, which supports the SV 977 is approved by the Sound Insulation & Testing Measurement Association (SITMA).
sound meter app 977 svantek
background

Sound analyser capabilities

Sound analysis is a useful tool for professionals

The SV 977 has the ability to record and analyze noise or vibration data over time, allowing professionals to better understand the dynamics of the noise and vibration environment. It can also perform octave band analysis, which can be useful for identifying specific frequency components of the noise or vibration. In addition, the sound meter allows to record a WAV data for noise sources identification.
octave analyser svantek 977
sv 977-sound-meter-and-analyser-octave-band

Compliance with standards

Class 1 accuracy following BS EN 61672-1:2013

Read more

high quality sound meter

High Quality Sound Meter

SV 977 is a high-quality sound level meter

Read more

sound meter app 977 svantek

Building Acoustics App

Svantek's Building Acoustics app approved by SITMA

Read more

octave analyser svantek 977

Sound analyser capabilities

Sound analysis is a useful tool for professionals

Read more

Main

Applications

background

Occupational Noise

Noise at work measurements

The Svantek SV 977 is a portable noise and vibration meter that is designed for measuring workers' exposure to noise in a variety of occupational settings. It meets the requirements of various international and British standards, such as HSE or ISO, making it suitable for use in a range of regulatory contexts. The sound meter has the unique capability to measure ultrasound frequencies up to 40 kHz, which can be useful for professionals working in industries or applications where high-frequency noise or vibration is present, such as cleaning, drilling, welding, or medical procedures. The SV 977 comes with dedicated Supervisor software that can help H&S professionals to evaluate and report on their measurement results using ready-made templates. This can save time and effort when preparing documents for regulatory compliance or other purposes.
Read more
svantek 977-occupational-noise-at-work
background

Building Acoustics

Measurement of acoustic insulation

The SV 977 sound meter can be used to calculate RT60 results, which measure the time it takes for the sound level in a room to decay by 60 decibels after the sound source has stopped. With the support of a mobile application called Assistant, the SV 977 helps the user calculate insulation in accordance with BS EN ISO 16283. During the measurement, the Assistant application allows the user to create a project containing measurements from the source and receiving rooms for different sound source positions. The project and measurement files are saved in the memory of the sound meter for easy reference and analysis.
Read more
building-acoustics-insulation-omni-source-sv-977
background

Environmental noise

Upgrade to a monitoring station

For outdoor noise measurements, the SV 977 can be used inside an IP 65-rated case. The light-weight microphone protection kit can be easily installed on a mast with standard mounting threads, allowing for easy and flexible setup. The case-type monitoring station is equipped with a 4G modem that enables remote communication with the internet. This means you can use your mobile phone or tablet to check the status of the noise monitoring station at any time, thanks to the SvanNET connectivity service. This service supports the connection between PC and station and allows the use of all types of SIM cards, regardless of whether they have a public or private IP.
Read more
environmental-noise-monitoring-977-svantek
svantek 977-occupational-noise-at-work

Occupational Noise

Noise at work measurements

Read more

building-acoustics-insulation-omni-source-sv-977

Building Acoustics

Measurement of acoustic insulation

Read more

environmental-noise-monitoring-977-svantek

Environmental noise

Upgrade to a monitoring station

Read more

Sound Meter

Videos

SV 977 Overview

Get an overview of the SV 977 sound level meter

Vibration Level Meter

Measure vibration levels easily with the SV 977

Building Acoustics Meter

Use the SV 977 for building acoustics measurements with a mobile application

Ask for

Sound meter SV 977
Sound meter SV 977
The kit includes an SV 977D Class 1 sound and vibration level meter which has the option for 1/1 and 1/3 octave installed. The kit also includes a detachable preamplifier (the SV 12L) and a high-quality MK 255 microphone, as well as a range of accessories such as a carrying case, a windscreen, a microSD card, batteries, and a USB cable. Each SV 977D comes with its own factory calibration certificate and a 36-month warranty card upon product registration.

See all accessories

Open list

SC 158 - USB-C to USB-A communication cable

SC 158 - USB-C to USB-A communication cable

USB-C to USB-A communication cable

SA22 - Windscreen for 1/2

SA22 - Windscreen for 1/2"" microphone (70 mm)

Windscreen for 1/2" microphone (70 mm)

SVANPC++EM - Environmental Module License

SVANPC++EM - Environmental Module License

The PC software module is designed for data post-processing from noise and vibration measurements. It provides all necessary functionalities for marking / removing / recalculation of the time-history records and presentation the calculated results in a form of reports (text, table and graphic forms).









    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.






      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.


      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      ]

      Product

      Specification

      Sound meter SV 977

      Applications

      Sound measurements
      Occupational noise
      Building acoustics
      Machine vibration

      Hardware Features

      Number of channels 1
      Auto-calibration
      Remote communication
      Bluetooth
      GPS module
      Communication Interfaces USB-C, I/O, RS232, Bluetooth 5.2
      Display
      Keyboard 9 keys
      Memory uSD 32 GB
      Battery type AA
      Operating time 12-16 hours
      Operating temperature range -10 °C to 50 °C
      Humidity range up to 90 % RH, non-condensed
      Weight 600 grams
      Size 343 x 79 x 39 mm

      Sound measurements features

      Standards Class 1: IEC 61672-1:2013, Class 1: IEC 61260-1:2014
      Type approvals approved according to WELMEC requirements
      Microphone type Microtech Gefell MK 255
      Preamplifier type SV 12L
      Linear operating range to IEC 61672 23 dBA Leq÷140 dBA Peak
      Total measurement range 16 dBA Leq÷140 dBA Peak
      Internal noise <16 dB LAeq
      Frequency range 3 Hz ÷ 20 kHz
      Weighting filters A, B, C, Z, LF, U, AU
      Time constants Slow, Fast, Impulse
      Profiles per channel 3
      Min logging step 2 ms
      Statistics Ln (L1-L99)
      Statistics in octaves or third octaves
      Audio recording option
      1/1 octave
      1/3 octave
      FFT option
      RT60 option
      STIPA option
      RPM option

      Vibration measurement features

      Standards ISO 20816
      Number of channels 1
      Sensor type IEPE
      1/1 octave
      1/3 octave
      WAV recording option
      FFT option
      RPM option
