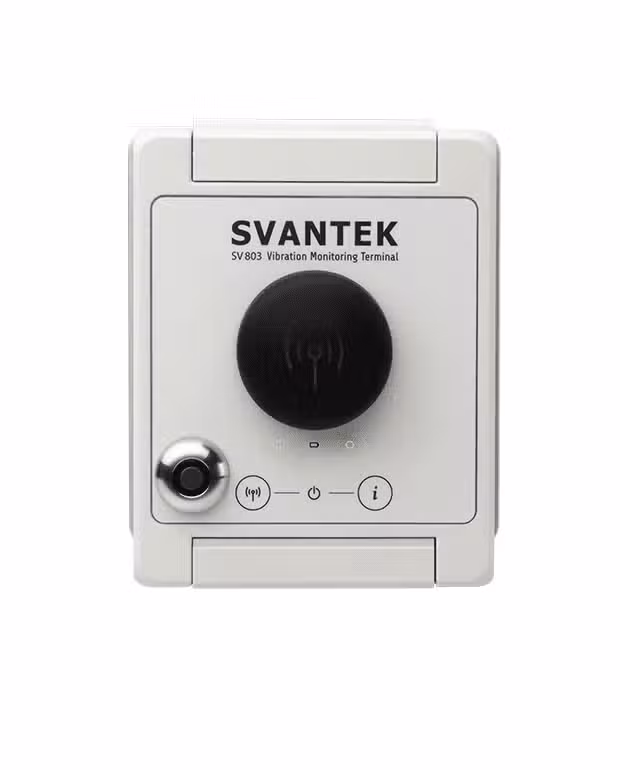

Wireless Vibration Monitor

SV 803

The SV 803, a new wireless vibration monitor from Svantek, represents the cutting edge of high-technology monitoring devices. Specifically designed for wireless vibration monitoring of both building and ground vibrations in a variety of environmental conditions, this device utilizes geophones as its primary vibration sensors. Geophones are well-known for their high sensitivity and, more importantly, their minimal impact on battery life. This means that the SV 803 can measure vibrations for prolonged periods without the need for frequent battery charging. The vibration monitoring terminal features a battery life of up to 6 months and, when connected to a solar panel, it can sustain ongoing operation.



Class 1 wireless vibration monitoring system

The new SV 803 vibration monitor has been engineered to meet the rigorous performance specifications of Class 1 as outlined in ISO 4866, BS 7385-1, and DIN 45669-1. These superior specifications enable the device to conduct building and ground vibration monitoring in accordance with measurement techniques outlined in DIN 4150-3 and BS 7385-2. The Class 1 classification of the device makes it an ideal choice for both engineering analysis and field monitoring, as it is capable of providing reliable and accurate measurements.



wireless vibration monitor
Wireless vibration monitor
separator
wireless vibration sensor geophone
Wireless vibration sensor geophone
separator
online vibration monitoring
Online vibration monitoring

Wireless Vibration Monitor

Catalogue

Online vibration monitoring

Now you can download the SV 803 wireless vibration monitor catalog, which has detailed technical information about this high-tech device. The SV 803 is made for monitoring applications in buildings and on the ground, and its wireless capabilities make it easy to set up and collect data. The device is equipped to measure and analyze a range of vibration parameters, such as peak particle velocity (PPV) and dominant frequency, utilizing fast Fourier transform (FFT) analysis to deliver an accurate and in-depth analysis of the data.
Download PDF
sv803 vibration monitoring station

Wireless Vibration Monitoring

System Features

background

AMS Wireless Vibration Monitor

Automatic Monitoring Services and the New SV 803 Vibration Monitor

Automatic Monitoring Services (AMS) are offered by Svantek's SvanNET platform for monitoring noise, vibration, and dust. The new SV 803 vibration monitor uses a 4G modem to send data from the sensor to the SvanNET without using wires. Within the scope of AMS, the SvanNET gives the vibration data in the form of reports that are ready to print and meet international building and ground vibration standards like ISO or DIN. Also, the monitoring system is set up so that alarms can come from both the SvanNET and the SV 803 vibration monitor to make sure it is reliable.
ams wireless vibration monitor
background

Vibration Analysis Tool

Building and Ground Vibration Events by DIN 4150-3 and BS 7385-2

With its advanced firmware, the SV 803 wireless vibration monitor can measure vibration velocity in line with DIN 4150-3 and BS 7385-2 standards, using the Peak Particle Velocity and Dominant Frequency method, which is based on fast Fourier transform (FFT) analysis. The device can analyze vibration events on its own and send SMS and email alerts directly from the onboard modem if an alarm goes off. This reduces the chance of transmission delays or missed alarms. Because of this, it is a great way to monitor vibration in different industrial settings in real time.
vibration analysis tool
background

Wireless Vibration Sensors Integrations

Integrate Vibration, Noise, Weather and Dust Measurements

The SV 803 vibration monitor goes well with the SV 307A dust and weather monitoring station and wireless sound monitor. These devices can be easily connected to a single monitoring network called SvanNET. This makes it possible to keep an eye on large areas like transportation and construction sites in an efficient and thorough way. SvanNET makes it possible to combine data from different sensors, like those that measure noise, vibration, dust, and weather, into a single, easy-to-use software platform. This makes it easy to understand and navigate. This all-in-one monitoring solution is very compatible and flexible, which makes it a great addition to any organization's monitoring tools.
noise vibration weather dust measurements integration
background

Mobile Application for Remote Connection

Bluetooth Connectivity for Remote Monitoring and Troubleshooting

The SV 803 wireless vibration monitor has Bluetooth connectivity, which makes it easy to change the settings of the device and see how it is doing right now. This feature lets you use a mobile app to check the system, which makes it very easy to fix problems in remote places. Since the mobile app can connect to both SvanNET and the vibration monitor via Bluetooth, support can be done from anywhere. This makes it possible to monitor and fix problems remotely, making it a useful solution for organizations that need to monitor from afar.
mobile appication for remote connection
ams wireless vibration monitor

AMS Wireless Vibration Monitor

Automatic Monitoring Services and the New SV 803 Vibration Monitor

Read more

vibration analysis tool

Vibration Analysis Tool

Building and Ground Vibration Events by DIN 4150-3 and BS 7385-2

Read more

noise vibration weather dust measurements integration

Wireless Vibration Sensors Integrations

Integrate Vibration, Noise, Weather and Dust Measurements

Read more

mobile appication for remote connection

Mobile Application for Remote Connection

Bluetooth Connectivity for Remote Monitoring and Troubleshooting

Read more

Remote Vibration Monitoring

Applications

background

Building and Ground Vibrations

Wireless Vibration Monitoring Equipment

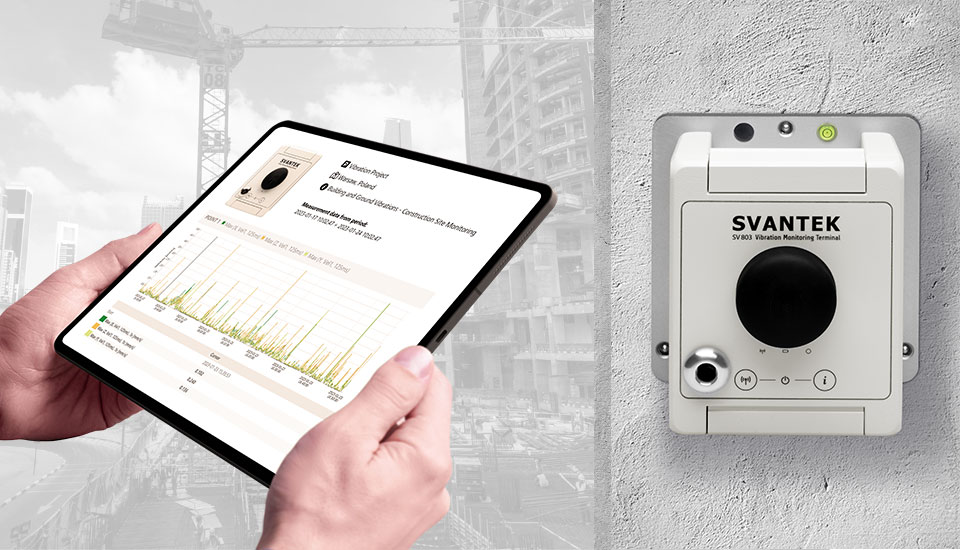

Wireless vibration monitoring equipment, such as the SV 803, is an essential tool for long-term projects in industries such as construction, mining, tunneling, and transportation. The device is fully autonomous and continuously monitors vibration levels, automatically initiating additional frequency analysis when an event is detected. The built-in GPS modem ensures precise time synchronization and provides information on the device's current location. This allows for remote access to the device, providing convenient data access and configuration capabilities. The ease of use and flexibility of wireless vibration monitors make it a valuable addition to any organization's monitoring capabilities.
Read more
remote vibration monitoring

Wireless Vibration Monitor

Videos

Video: The new SV 803 Wireless Vibration Monitor

Introducing the new SVANTEK SV 803 Wireless Vibration Monitor! This top-of-the-line device is perfect for any industry where vibration needs to be monitored.

Video: SV 803 System Features

Discover unique features of the new Wireless Vibration Monitor from Svantek.

Video: Replacing the battery pack

In this short video, we will guide you on how to easily replace the battery pack.

Wireless vibration monitor

SV 803 – Wireless Vibration Monitor

SV 803 – Wireless Vibration Monitor

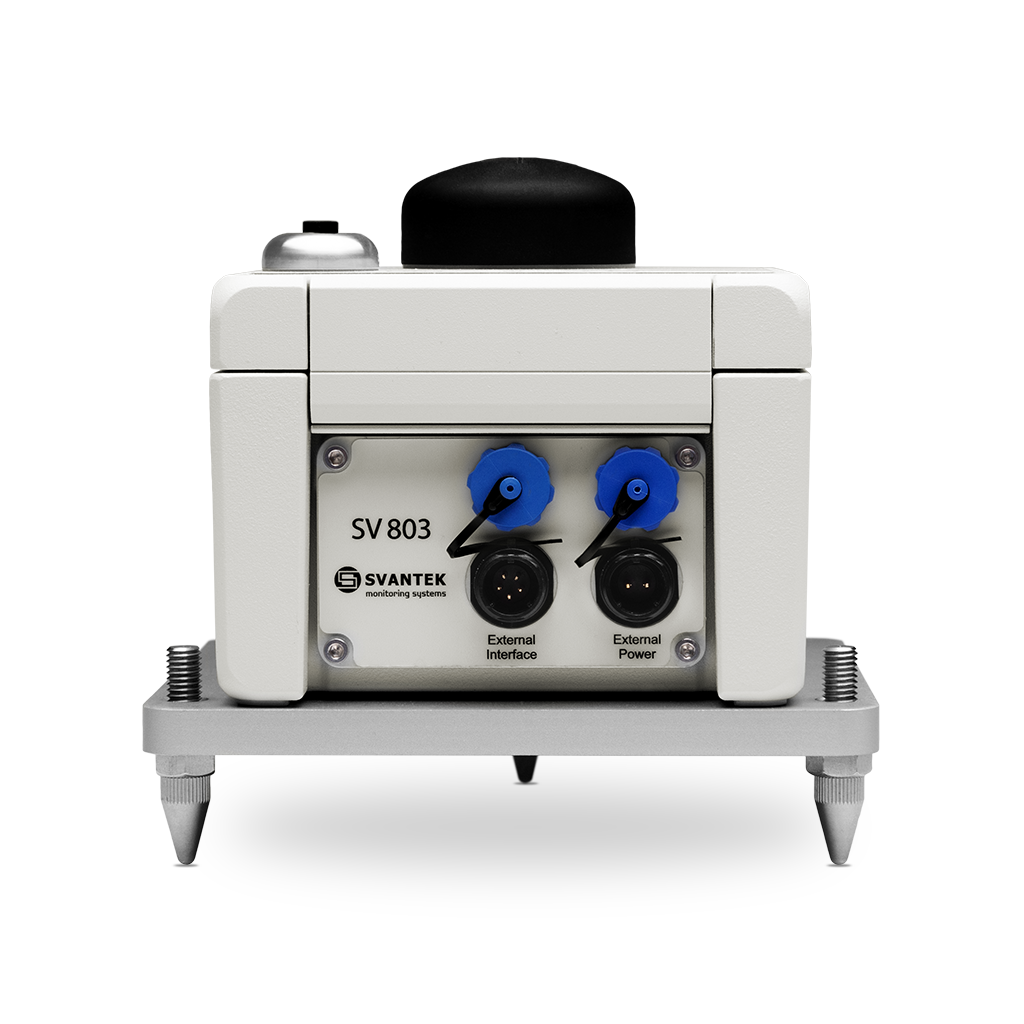

The vibration monitoring station is a comprehensive solution for monitoring vibrations in various environments. It is equipped with a built-in 4G modem and Bluetooth connectivity for easy data transfer. The package includes a number of essential components to ensure accurate and efficient monitoring. The SB 803 exchangeable battery pack provides long-lasting power, while the SB 83 battery charger ensures that the battery pack is always ready for use. The SA 800 leveling mounting base ensures that the monitoring station is stable and level, while the SC 816 USB-A cable facilitates data transfer. The ST 801 vertical geophone and the two ST 802 horizontal geophones are designed to detect vibrations in different directions. The SA 82 torque screwdriver is included for easy installation, and the SA 83 32 GB memory card provides ample storage for data logging.

See all accessories
SF 803_FTP - FTP/FTPS push/pull function for SV 803

SF 803_FTP - FTP/FTPS push/pull function for SV 803

FTP/FTPS push/pull function for SV 803

SB 803 - Exchangeable battery pack

SB 803 - Exchangeable battery pack

Exchangeable battery pack for SV 803 station

Open list (10)













    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

    SV 803 Vibration Monitor

    Specification

    SV 803 – Wireless Vibration Monitor

    Applications

    Building/ground vibration

    Hardware Features

    Number of channels 3
    Self-vibration detection
    Auto-calibration
    Remote system check
    Remote communication
    Bluetooth
    GPS module
    Communication Interfaces 4G, Bluetooth, 2xWEIPU
    LED indicator
    Display
    Keyboard 3 pushing buttons
    Memory 32 GB
    Battery type Li-Ion battery
    Operating time UNLIMITED with SB 803 battery pack and solar panel in power saving mode
    Operating temperature range -20 °C ÷ +50 °C
    Weight 3,5 kg including battery and mounting platform
    Size 163 x 128 x 115 mm
    IP rate IP67

    Vibration measurement features

    Standards DIN 45669-1:2020-06; ISO 4866:2010, Class 1; IEC 61260:2014, Class 1
    Number of channels 3
    Sensor type Tri-axial geophone
    Measurement range 3 um/s RMS ÷ 100 mm/s RMS (141 mm/s Peak)
    Frequency range 0,8 Hz ÷ 500 Hz (-3 dB)
    Profiles per channel 3
    Weighting filters DIN 80, DIN 315, VEL1, KB, HP
    Time constants Fast 125 ms in accordance to DIN 4150-2
    Min logging step 1s
    1/1 octave
    1/3 octave
    WAV recording
    FFT
