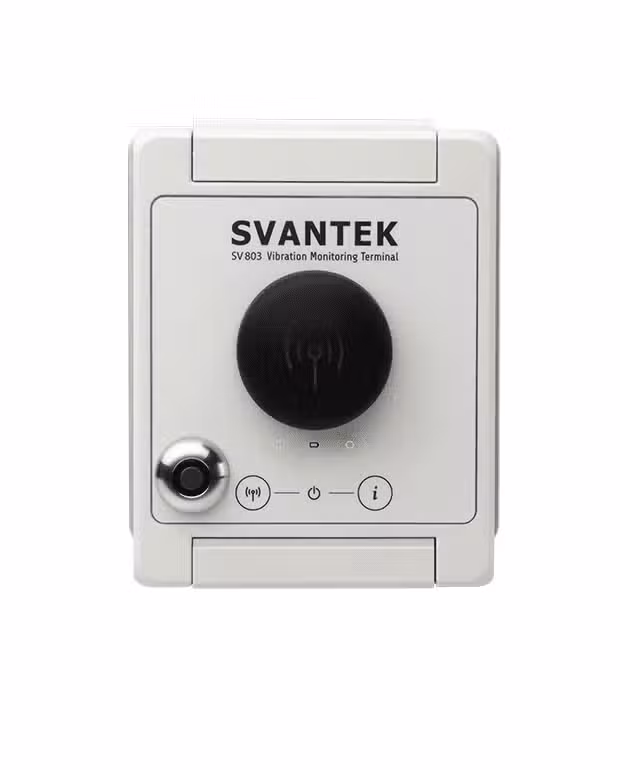

Wireless Vibration Monitor

SV 803

The SV 803 is a cutting-edge wireless vibration monitor from Svantek, designed to meet British Standards for building and ground vibration monitoring in the UK. This innovative device uses geophones for high sensitivity and energy efficiency, making it a reliable and sustainable solution for long-term vibration monitoring.

The SV 803 employs FFT analysis to determine the dominant vibration frequency in compliance with BS and DIN standards. Additionally, it offers the option to analyse RMS or PEAK velocity spectra in 1/3 octave bands, allowing for precise comparison with user-defined curves. These features make it ideal for applications requiring adherence to strict regulatory standards.

Class 1 wireless vibration monitoring system

The SV 803 vibration monitor is designed to meet the high standards of Class 1 as outlined in British Standard BS 7385-1 (ISO 4866) and DIN 45669-1, making it suitable for building and ground vibration monitoring in accordance with DIN 4150-3 and BS 7385-2. This device is ideal for both engineering analysis and field monitoring, as it provides reliable and accurate measurements.



wireless vibration monitor
Wireless vibration monitor
separator
wireless vibration sensor geophone
Wireless vibration sensor geophone
separator
online vibration monitoring
Online vibration monitoring

Wireless Vibration Monitor

Catalogue

Online vibration monitoring

The SV 803 wireless vibration monitor catalog is now available for download, providing detailed technical information about this high-tech device. Designed for monitoring buildings and ground vibrations, the SV 803's wireless capabilities make it easy to set up and collect data. Using fast Fourier transform (FFT) analysis, it can measure and analyze a wide range of vibration parameters, such as peak particle velocity (PPV) and dominant frequency.
Download PDF
sv803 vibration monitoring station

Wireless Vibration Monitoring

System Features

background

AMS Wireless Vibration Monitor

Automatic Monitoring Services in the UK

The UK's Automatic Monitoring Services (AMS) offered by the SvanNET platform for monitoring noise, vibration, and dust use the new SV 803 vibration monitor, which uses a 4G modem to transmit data wirelessly from the sensor to the SvanNET platform. This platform provides vibration data in the form of reports that are ready to print and meet international building and ground vibration standards like ISO or DIN. Additionally, the monitoring system is set up with alarms that can be triggered from both the SvanNET platform and the SV 803 vibration monitor for maximum reliability.
ams wireless vibration monitor
background

Vibration Analysis Tool

Building and Ground Vibration Events by BS 7385-2

The SV 803 wireless vibration monitor, with its advanced firmware, can measure vibration velocity in accordance with the British Standard BS 7385-2 using the Peak Particle Velocity and Dominant Frequency method, which is based on fast Fourier transform (FFT) analysis. The device is able to analyze vibration events independently and send SMS and email alerts directly from the onboard modem in case of an alarm, minimizing the risk of transmission delays or missed alarms. Because of this, it is a great way to monitor vibrations in real time in a variety of industrial settings.
vibration analysis tool
background

Wireless Vibration Sensors Integrations

Integrate Vibration, Noise, Weather and Dust Measurements

To meet the requirements of a construction site monitoring program in the UK, the SV 803 vibration monitor can be paired with the SV 307A dust and weather monitoring station and a wireless sound monitor, which can all be easily connected to a single monitoring network called SvanNET. This allows for efficient and thorough monitoring of large areas such as transportation and construction sites. SvanNET allows for the combination of data from various sensors, including those measuring noise, vibration, dust, and weather, into a single, user-friendly software platform, making it easy to understand and navigate. This all-in-one monitoring solution is highly compatible and flexible, making it a valuable addition to any organization's monitoring tools.
noise vibration weather dust measurements integration
background

Mobile Application for Remote Connection

Bluetooth Connectivity for Remote Monitoring and Troubleshooting

The SV 803 wireless vibration monitor features Bluetooth connectivity, allowing for easy adjustments to device settings and real-time monitoring via a mobile app. This allows for the ability to troubleshoot issues remotely, even in remote locations. The mobile app can connect to both the SvanNET and the vibration monitor through Bluetooth, enabling remote support. This feature makes it an ideal solution for organizations that need to monitor vibration from a distance.
mobile appication for remote connection
ams wireless vibration monitor

AMS Wireless Vibration Monitor

Automatic Monitoring Services in the UK

Read more

vibration analysis tool

Vibration Analysis Tool

Building and Ground Vibration Events by BS 7385-2

Read more

noise vibration weather dust measurements integration

Wireless Vibration Sensors Integrations

Integrate Vibration, Noise, Weather and Dust Measurements

Read more

mobile appication for remote connection

Mobile Application for Remote Connection

Bluetooth Connectivity for Remote Monitoring and Troubleshooting

Read more

Remote Vibration Monitoring

Applications

background

Building and Ground Vibrations

Wireless Vibration Monitoring Equipment

The SV 803 wireless vibration monitor is a very useful tool for industries like construction, mining, tunneling, and transportation where vibration levels need to be constantly checked. The device has a GPS modem built in for accurate time synchronization and location tracking. This makes it possible to access the device's data and settings from a distance. The fully autonomous operation, automatic initiation of additional frequency analysis, and ease of use of the wireless vibration monitor make it a valuable asset for any organization's monitoring needs.
Read more
remote vibration monitoring

Vibration Monitoring System

Videos

Introducing the SV 803: Wireless Vibration Monitoring for the UK

The SV 803 is a cutting-edge wireless vibration monitor from Svantek, designed to meet British Standards for building and ground vibration monitoring in the UK.

Wireless vibration monitor

Wireless Vibration Monitor SV 803

Wireless Vibration Monitor SV 803

The vibration monitoring station is a comprehensive solution for monitoring vibrations in various environments. It is equipped with a built-in 4G modem and Bluetooth connectivity for easy data transfer. The package includes a number of essential components to ensure accurate and efficient monitoring. The SB 803 exchangeable battery pack provides long-lasting power, while the SB 83 battery charger ensures that the battery pack is always ready for use. The SA 800 leveling mounting base ensures that the monitoring station is stable and level, while the SC 816 USB-A cable facilitates data transfer. The ST 801 vertical geophone and the two ST 802 horizontal geophones are designed to detect vibrations in different directions. The SA 82 torque screwdriver is included for easy installation, and the SA 83 32 GB memory card provides ample storage for data logging.

See all accessories
SF 803_FTP - FTP/FTPS push/pull function for SV 803

SF 803_FTP - FTP/FTPS push/pull function for SV 803

FTP/FTPS push/pull function for SV 803

SB 803 - Exchangeable battery pack

SB 803 - Exchangeable battery pack

Exchangeable battery pack for SV 803 station

Open list (10)













    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

    SV 803 Vibration Monitor

    Specification

    Wireless Vibration Monitor SV 803

    Applications

    Building/ground vibration

    Hardware Features

    Number of channels 3
    Self-vibration detection
    Auto-calibration
    Remote system check
    Remote communication
    Bluetooth
    GPS module
    Communication Interfaces 4G, Bluetooth, 2xWEIPU
    LED indicator
    Display
    Keyboard 3 pushing buttons
    Memory 32 GB
    Battery type Li-Ion battery
    Operating time UNLIMITED with SB 803 battery pack and solar panel in power saving mode
    Operating temperature range -20 °C ÷ +50 °C
    Weight 3,5 kg including battery and mounting platform
    Size 163 x 128 x 115 mm
    IP rate IP67

    Vibration measurement features

    Standards DIN 45669-1:2020-06; ISO 4866:2010, Class 1; IEC 61260:2014, Class 1
    Number of channels 3
    Sensor type Tri-axial geophone
    Measurement range 3 um/s RMS ÷ 100 mm/s RMS (141 mm/s Peak)
    Frequency range 0,8 Hz ÷ 500 Hz (-3 dB)
    Profiles per channel 3
    Weighting filters DIN 80, DIN 315, VEL1, KB, HP
    Time constants Fast 125 ms in accordance to DIN 4150-2
    Min logging step 1s
    1/1 octave
    1/3 octave
    WAV recording
    FFT
