Vibration Meter and FFT Analyser

SVAN 974

SVAN 974 Vibration Meter and FFT Analyser is intended for general vibration measurements and machinery condition monitoring. It can be used by consultants, maintenance services, industry R&D departments etc. Instrument allows parallel acceleration, velocity and displacement measurements. Three vibration profiles in SVAN 974 allow parallel measurements with independently defined filters and RMS detector time constants. Each profile provides a significant number of results (like RMS, Peak or Max). The advanced time-history logging for each profile provides the complete information about the measured signal. Measurements data stored to microSD card can be easily downloaded to any PC using the USB interface and SvanPC++ software.

Most of required weighting filters, like VelMF, meeting ISO 20816 standard requirements, are available with this instrument. Using the computational power of its digital signal processor, the SVAN 974 instrument can perform additionally the real-time 1/1 or 1/3 octave or FFT analysis. The SVAN 974 Vibration Meter offers also, parallel to the vibration measurement, the RPM measurement with Monarch laser tachometer. Instrument is powered from four AA standard or rechargeable batteries. The powering of the instrument from the USB interface is also provided. The robust and very compact case together with a light-weight design complete the exceptional features of this modern instrument.

Machine Vibration Measurements

Machine Vibration Measurement Techniques are described by the ISO 20816-1 standard. These vibration measurement techniques involve accelerometer placement, setting appropriate measurement parameters, executing the measurement, and interpreting the results. ISO Machine Vibration Measurement Technique facilitates accurate collection and analysis of vibration data. The ISO vibration analysis technique identifies potential faults such as bearing defects, misalignment, and imbalance, prompting timely corrective actions.


Machine Vibration
separator

Rotation Measurement
separator
Data post-processing
FFT Analysys

Application

Catalogue

SVAN 974 Vibration Meter and FFT analyser

Learn more about the SVAN 974 Vibration Level Meter and FFT Analyser designed to measure vibrations from machinery.
Download PDF
SVAN 974 Vibration Meter

Measurement

Applications

background

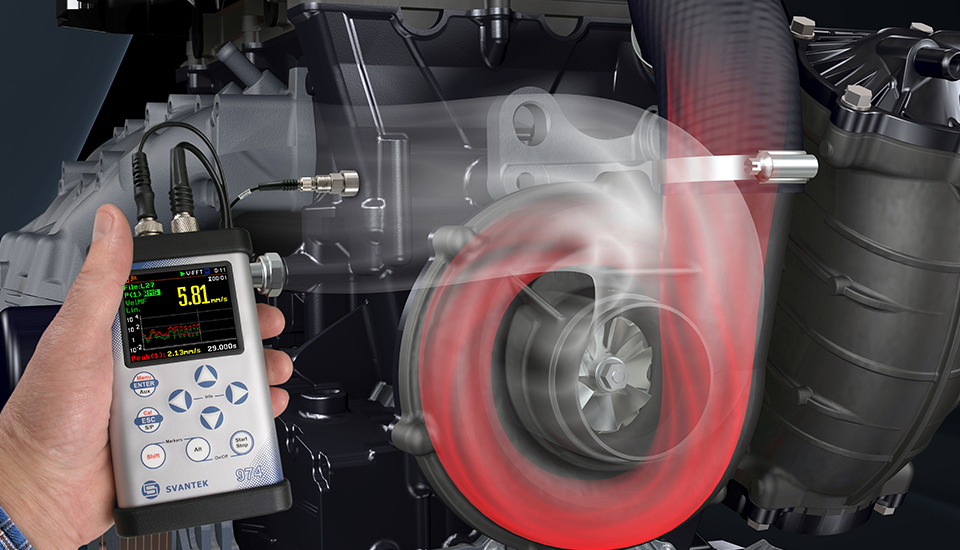

Machine Vibration

vibration frequency, displacement, velocity, and acceleration

Machine vibration is typically analyzed with measurements of the vibration frequency, displacement, velocity, and acceleration. The latter three — displacement, velocity, and acceleration — are time domain measurements, meaning their amplitudes are plotted versus time. ISO 20816-1 provides guidelines primarily for operational monitoring and acceptance tests providing limits for three primary vibration quantities: displacement, velocity and acceleration.
Read more
SVAN 974 Vibration Meter

Ask for

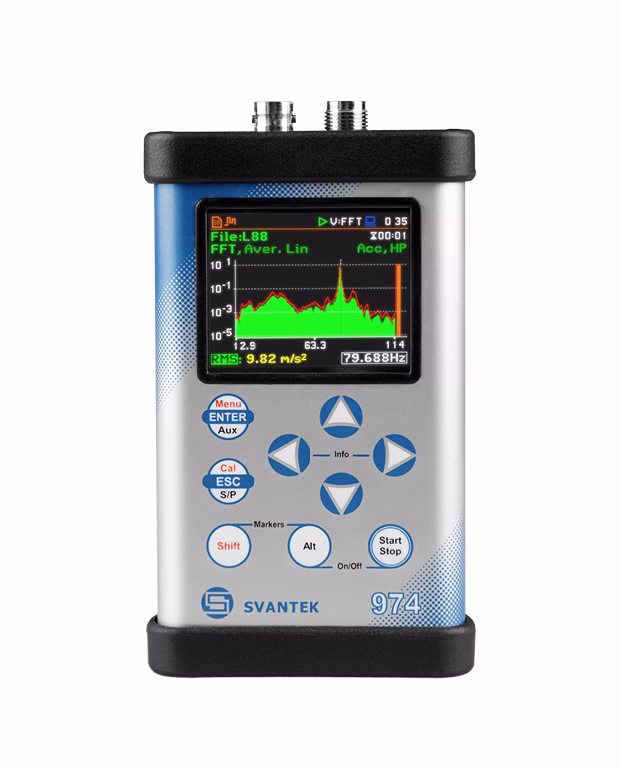

SVAN 974 – Vibration Meter and FFT analyser

SVAN 974 – Vibration Meter and FFT analyser

The kit consists of SVAN   974 together with SV80 accelerometer and SA27 mounting magnet, SC27 coil cable all packed in SA74 waterproof carrying case. The accessories list also contains 32 GB microSD card and pendrive with user manual. Each SVAN     974 has its factory calibration certificate and 36 months warranty upon product registration.

See all accessories
SF974_3 - License of 1/1 & 1/3 octave analysis options for SVAN 974

SF974_3 - License of 1/1 & 1/3 octave analysis options for SVAN 974

License of 1/1 & 1/3 octave analysis options for SVAN 974

License of RPM measurements for SVAN 974

Open list (9)













    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.










      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.


      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      ]

      Technical

      Specification

      SVAN 974 – Vibration Meter and FFT analyser

      Applications

      Hand-arm vibration
      Whole-body vibration
      Machine vibration
      Building/ground vibration

      Hardware Features

      Number of channels 1
      Self-vibration detection
      Auto-calibration
      Keyboard lock
      Remote communication
      Bluetooth
      Communication Interfaces USB, I/O
      LED indicator
      Display
      Keyboard 9 buttons
      Memory 32 GB
      Battery type AA
      Operating time 12h-16h
      Operating temperature range -10 °C to 50 °C
      Humidity range up to 90% RH
      Weight 390 grams
      Size 140x83x33 mm

      Vibration measurement features

      Standards ISO 20816-1
      Number of channels 1
      Sensor type IEPE
      Input type IEPE
      Measurement range 0.01 ms-2 RMS ÷ 500 ms-2 Peak
      Frequency range 0.5 Hz ÷ 14 kHz
      Profiles per channel 3
      Time constants From 100 ms to 10 s
      1/1 octave option
      1/3 octave option
      WAV recording option
      FFT
      RPM option
