SV 307 4G

Noise monitoring station

About

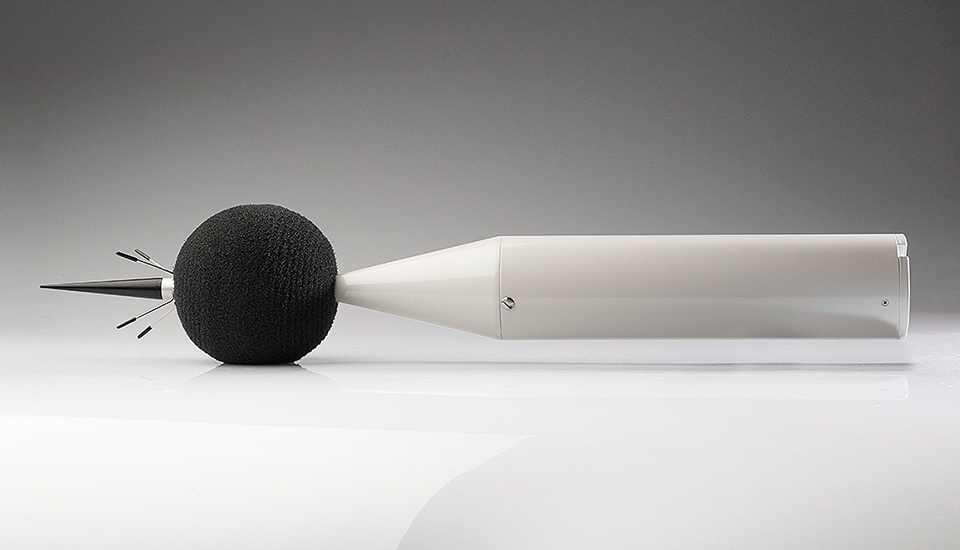

The SV307 Noise monitoring station is an innovative station dedicated for automated  noise monitoring. The station integrates  a class 1 sound level meter with 4G and GPS  modems. The waterproof housing of SV 307 can be removed to get an access to the user interface with a colour display and keypad. The SV307 Noise monitoring station is equipped with a patented MEMS microphone with a life-time warranty. The measurement data is stored on a removable micro SD card. The patented dual system check continuously monitors a microphone condition.


Class 1

NEW

MEMS Technology

Main

Features

All in One Noise Monitoring Station

noise levels, frequency analysis, audio, meteo, dust

The SV 307 is an all-in-one noise monitoring station which means that the sound level meter has been integrated with a 4G modem and outdoor enclosure. The instrument is designed to monitor noise levels and their spectra, record and audio signal and GPS localization. Microphone performance is constantly monitored by the patented dynamic system check. All meteorological quantities such as wind speed, wind direction, rain, humidity etc. or dust particles PM2.5 or PM10 can be stored together with the noise data when external sensors are connected.
SV307 Noise monitoring station

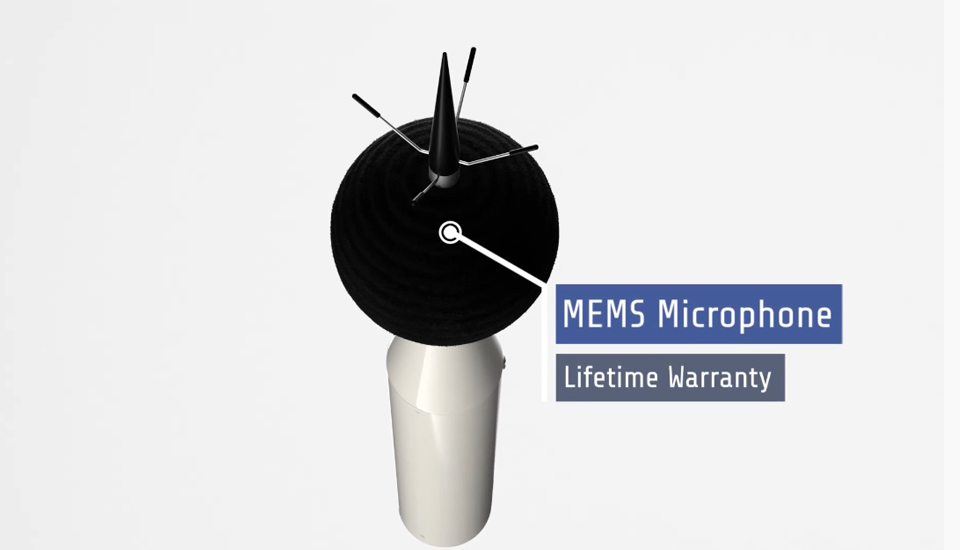

Life-time warranty on a microphone

patented MEMS microphone technology

MEMS (Micro Electro-Mechanical Systems) is a patented technology used in Svantek microphones. These type of sensors are very robust and resistant to mechanical damages. MEMS uses much less power than traditional sensors which extends the battery life-time. Additionally, small size of microphones enabled installation of a patented dynamic system check feature inside each microphone capsule that alerts users on microphones sensitivity failures. Svantek MEMS microphones have the life-time warranty.
SV307 Noise monitoring station

Designed for outdoor noise monitoring

smart solutions in a waterproof housing

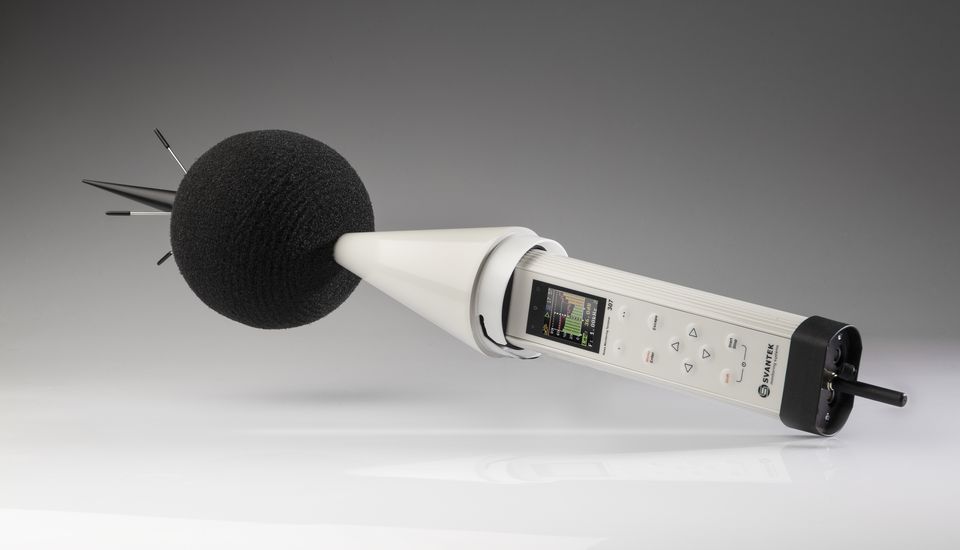

The SV 307 has an internal Li-Ion battery and interface for connecting solar panels. A waterproof mains adapter for charging the battery and powering the station is also included. The removable & weatherproof housing protects the SV307 noise monitoring terminal against extreme weather conditions. The housing can be removed to get an access to the user interface with a colour display and keypad.
SV307 Noise monitoring station

Live Audio Streaming

Listen to the live audio streaming with the SvanNET cloud solution

SV307 Noise monitoring station

Main

Applications

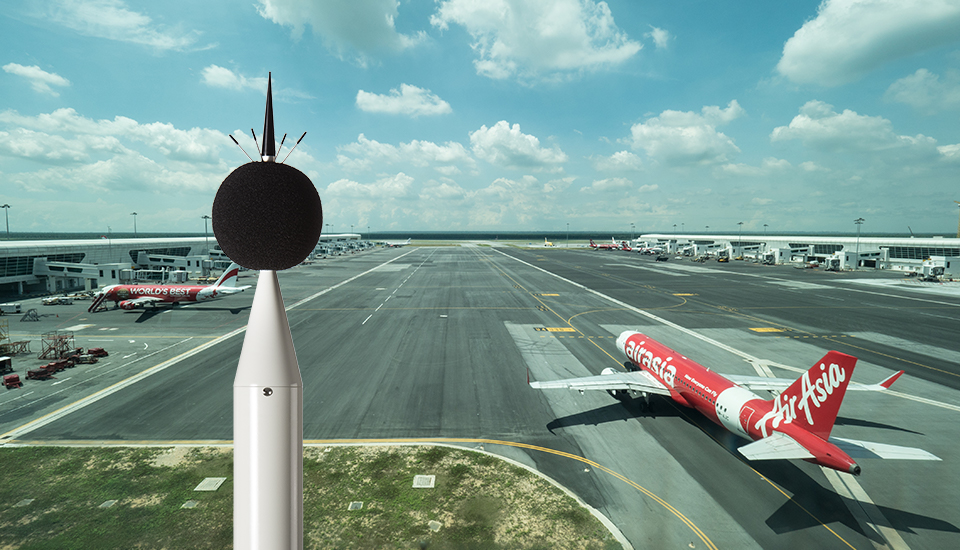

Environmental noise monitoring

measure all types of noise in environment

The SV 307 is designed to long-term and short-term noise monitoring applications such road, air and rail traffic, industrial plants or construction sites. The station firmware has a functionality of advanced triggers that supports an unattended measurements. A unique feature of SV 307 is its ability to steam an audio signal so the user can listen to the noise in real-time (audio-streaming function).
Read more

Product

Videos

Ask for

SV 307 – 4G Integrated noise monitoring station

SV 307 – 4G Integrated noise monitoring station
The SV 307 is an integrated Noise Monitoring Terminal which means that the sound level meter has been integrated with a 4G modem and outdoor enclosure. The waterproof power supply is also provided for continuous operation in the field. Each SV 307 has its factory calibration certificate and 36-MONTHS WARRANTY CARD. The part of the kit is the new MEMS microphone with a life-time warranty.

Suggested options and accessories

See all

SF307_3 - License of 1/1 & 1/3 octave analysis options for SV 307

SF307_3 - License of 1/1 & 1/3 octave analysis options for SV 307

License of 1/1 & 1/3 octave analysis options for SV 307

SF307_15 - License of audio event recording for SV 307

SF307_15 - License of audio event recording for SV 307

License of audio event recording for SV 307

SvanNET_1A - Account for 1 station - 1 year

SvanNET_1A - Account for 1 station - 1 year

SvanNET Projects account provides full functionality of cloud service such as: automatic control of measurement point, data sharing with other users, WYSIWYG reports, additional alarms, data publishing in a form of a public website, data storage and more.







    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.
    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.
    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.

    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.




      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.
      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      Technical

      Specifications

      SV 307 – 4G Integrated noise monitoring station

      Applications

      Sound measurements
      Environmental noise

      Hardware Features

      Number of channels 1
      Intrisic safety
      Self-vibration detection
      Auto-calibration
      Keyboard lock
      Remote communication
      Bluetooth
      Communication Interfaces 4G, USB, RS232
      LED indicator
      Display
      Keyboard 8 keys
      Memory uSD 16 GB
      Battery type Li-Ion
      Operating time 5-6 days
      Operating temperature range -20 °C to 50 °C
      Humidity range up to 95 % RH
      Weight 1800 g
      Size 680 x 80 mm
      IP rate IP 65

      Sound measurements features

      Standards Class 1: IEC 61672-1:2013, Class 1: IEC 61260-1:2014
      Type approvals pending
      Microphone type MEMS
      Preamplifier type Integrated
      Linear operating range to IEC 61672 30 dBA Leq÷128 dBA Peak
      Total measurement range 23 dBA Leq÷128 dBA Peak
      Internal noise less than 23 dBA Leq
      Frequency range 20 Hz ÷ 20 kHz
      Weighting filters A, B, C, Z, LF
      Time constants Slow, Fast, Impulse
      Profiles per channel 3
      Min logging step 100 ms
      Statistics Yes
      Statistics in octaves or third octaves
      Noise directivity detection
      Audio recording option
      1/1 octave option
      1/3 octave option
      Tonality
