Ask for price

Class 1 Noise Monitoring Station

SV 307A

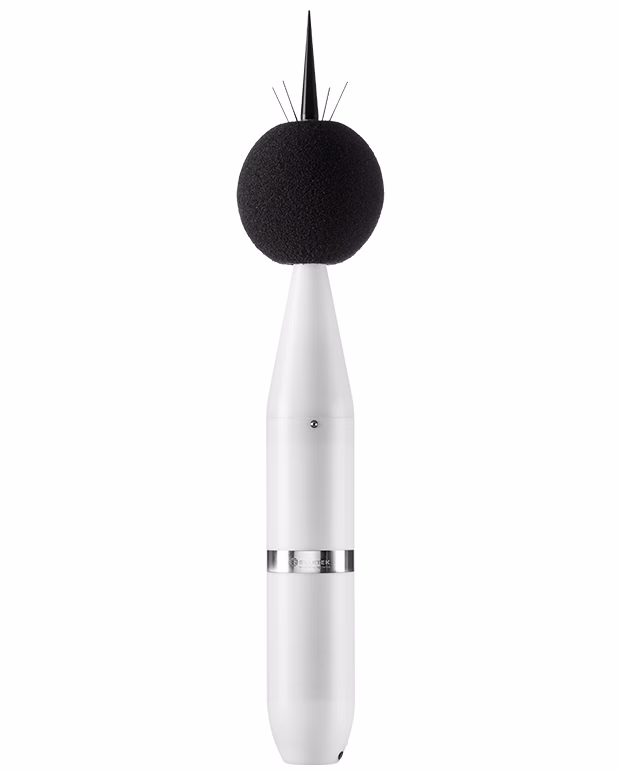

SV307A Noise monitoring station is the newest version of the all-in-one noise monitoring station based on a patented MEMS microphones technology covered by the life-time warranty. The SV307A Noise monitoring station has been designed for the permanent noise monitoring in all weather conditions – it uses smart solutions to control the internal temperature and to detect any hardware failures. The new housing is made of strengthen material that protects internal electronics: class 1 sound level meter with 4G and GPS modems. The SV307A Noise monitoring station measures noise levels, statistics and spectra together with audio files that can be triggered on level or time. The advanced triggering provides also possibility of the noise prediction to alarm the user before certain noise levels are reached. Moreover, with the SvanNET Service it is possible to connect to SV 307A to listen the live noise from the microphone!

Noise Monitor with MEMS microphone Approved by PTB

In 2022, the Physikalisch-Technische Bundesanstalt (PTB) has granted the world’s first Class 1 Sound Level Meter with MEMS microphone approval to SV 307A Noise Monitor. It is an important turning point in the history of MEMS microphones in environmental sound monitoring.

Type Approved
Type Approved
technologia MEMS
MEMS microphone
New Features
Patented

Application

Catalogues

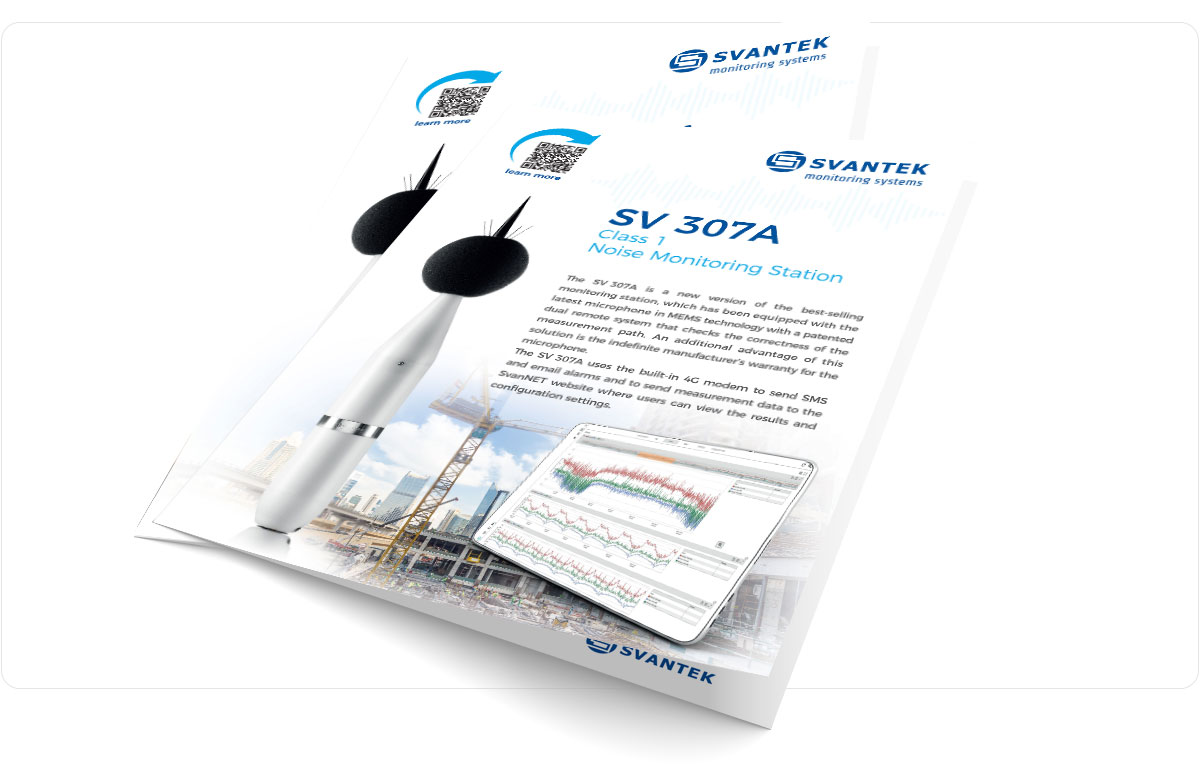

SV 307A Noise Monitor

Learn more about the new features of SV 307A and its superior specifications. Find out more about smart monitoring and functions such as advanced triggering or audio streaming.
Download PDF

Application Note on Environmental Noise & Vibration Monitoring

See an example of the use of multi-point environmental noise and vibration monitoring in a building demolition project in London.
Download PDF

Hardware

Features

PTB Approved!

the world’s first Noise Monitoring Station with type approval!

In March 2022, the Physikalisch-Technische Bundesanstalt (PTB) has granted the world’s first Class 1 Sound Level Meter with MEMS microphone approval to SV 307A Noise Monitor. It is an important turning point in the history of MEMS microphones in environmental sound monitoring.

All-in-one Noise Monitoring Terminal

made for environmental noise monitoring

The new version of the SV 307A has an improved external housing for operation in conditions of high sunlight exposure and low temperatures, a new high-speed 4G modem and an improved microphone in the MEMS technology with the life-time warranty. For the continuous operation the system can be powered from AC mains or solar panel and the large internal battery can power the system for 5 days.
SV307A Noise monitoring station

Patented dual system check

unattended measurements with smart solutions

The continuous system check uses MEMS microphones located very close to each other, such that all microphones are exposed to the same acoustic field. In case the levels measured by the reference microphone and the measurement microphones differ by more than a particular threshold, the SV 307A system check triggers an alarm. Additionally, the inbuilt sound source producing level about 100 dBA at 1 kHz can be used for automated or manual system check.
SV307A Noise monitoring station

Noise, meteo, dust

connect the weather or dust monitor

The SV 307A can be integrated directly with dedicated weather monitoring module or dust monitor. All meteorological values such as wind speed, wind direction, rain, humidity etc. or dust particles PM2.5 or PM10 can be stored together with the noise data when external sensors are connected. Moreover, the advanced triggering system can use weather or dust parameters for alarm triggering!
SV307A Noise monitoring station

PTB Approved!

the world’s first Noise Monitoring Station with type approval!

Read more

SV307A Noise monitoring station

All-in-one Noise Monitoring Terminal

made for environmental noise monitoring

Read more

SV307A Noise monitoring station

Patented dual system check

unattended measurements with smart solutions

Read more

SV307A Noise monitoring station

Noise, meteo, dust

connect the weather or dust monitor

Read more

Noise monitoring

Applications

Environmental noise

Permanent noise monitoring

The SV 307A has been designed for a continuous, class 1 noise monitoring in all weather conditions. The monitoring station is fully automatic, it measures and stores noise levels, statistics and spectra. The measurement time is synchronized with a GPS. Additionally, it can record triggered audio in a form of WAV files. All is stored in 32 GB internal memory and transferred via 4G modem to the SvanNET Web Service, where data can be viewed and organised in a form of reports. The SV 307A uses patented system check to continuously verify the microphone performance and triggers an alarm whenever the microphone failure is detected.
Read more

Product

Videos

Video: NEW SV 307A Noise Monitor

Discover unique features of the world's No 1 Noise Monitoring Station with the MEMS microphone

Video: It's here: All-in-one Noise Monitoring Station

Learn more about SV 307A Noise monitoring station, the newest version of the all-in-one noise monitoring station.

Ask for SV 307A

SV 307A – Noise monitoring station
SV 307A – Noise monitoring station
The SV 307A is an integrated Noise Monitoring Terminal which means that the sound level meter has been integrated with a 4G modem and outdoor enclosure. The waterproof power supply is also provided for continuous operation in the field. Each SV 307A has its factory calibration certificate and 36-MONTHS WARRANTY CARD. The part of the kit is the new MEMS microphone with a life-time warranty.

See all accessories

Open list

SF 307A_3 - License for 1/1 and 1/3 octave to SV 307A

SF 307A_3 - License for 1/1 and 1/3 octave to SV 307A

The firmware function of 1/1 and 1/3 octave allows the determination of the influence of high or low frequencies on overall values and helps to identify noise sources.

SF 307A_15 - License of Audio Recording to SV 307A

SF 307A_15 - License of Audio Recording to SV 307A

The firmware option of Audio Recording to WAV. It is synchronized with a noise time-history and can be played back in the software enabling the noise sources recognition. Audio Recording can be triggered on threshold or time.

SvanNET_1A - Account for 1 station - 1 year

SvanNET_1A - Account for 1 station - 1 year

SvanNET Automatic Monitoring Services: Automatic control of 1 measurement point;







    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.
    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.
    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.

    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.




      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.
      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      Technical

      Specification

      SV 307A – Noise monitoring station

      Applications

      Sound measurements
      Environmental noise

      Hardware Features

      Number of channels 1
      Auto-calibration
      Remote system check
      Keyboard lock
      Remote communication
      Bluetooth
      GPS module
      Communication Interfaces 4G, USB, RS232
      LED indicator
      Display
      Keyboard 8 keys
      Memory uSD 32 GB
      Battery type Li-Ion
      Operating time 5-6 days
      Operating temperature range -20 °C to 60 °C
      Humidity range up to 99 % RH
      Weight 2200 g
      Size 680 x 80 mm

      Sound measurements features

      Standards Class 1: IEC 61672-1:2013, Class 1: IEC 61260-1:2014
      Type approvals PTB Type Approval
      Microphone type MEMS patented
      Preamplifier type Integrated
      Linear operating range to IEC 61672 30 dBA Leq÷128 dBA Peak
      Total measurement range 23 dBA Leq÷128 dBA Peak
      Internal noise less than 23 dBA Leq
      Frequency range 20 Hz ÷ 20 kHz
      Weighting filters A, B, C, Z, LF
      Time constants Slow, Fast, Impulse
      Profiles per channel 3
      Min logging step 100 ms
      Statistics Ln (L1-L99)
      Statistics in octaves or third octaves
      Noise directivity detection
      Audio recording option
      Audio streaming option
      1/1 octave option
      1/3 octave option
