Hand-Arm Vibration Dosimeter

SV 103

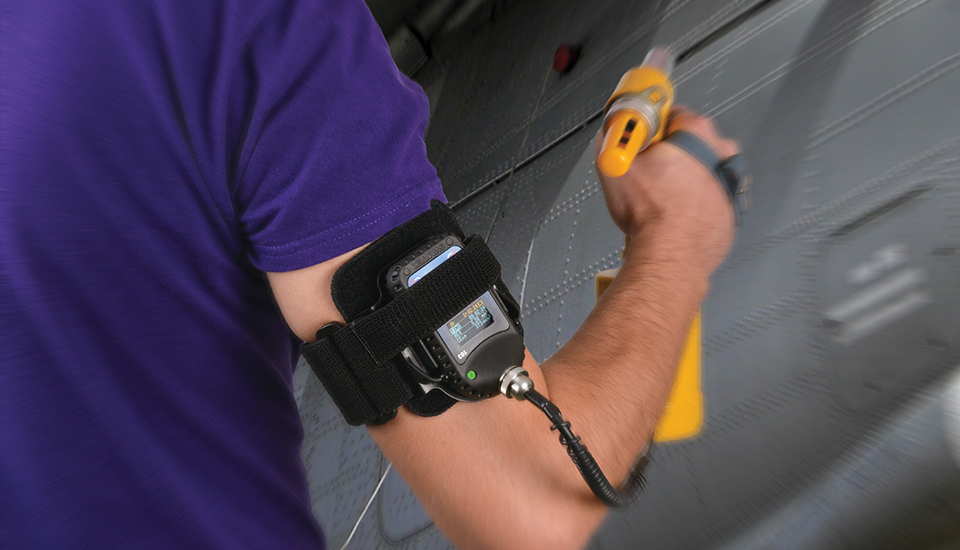

SV 103 Human Vibration Meter (Personal Human Vibration Exposure Meter) is dedicated to hand-arm vibration measurements. The instrument meets ISO 8041:2021 and is the ideal choice for making measurements according to ISO 5349 and European Directive 2002/44/EC. The SV 103 Human Vibration Meter significantly decreases the measurement uncertainty as the instrument is attached to the user’s arm and is small enough to take daily vibration exposure measurements without interfering with normal working activities.

The SV 103 Human Vibration Meter uses our latest accelerometer, the SV 107, that has a contact force sensor in addition to the standard accelerometer. Contact force is the sum of grip force and push force and is therefore a measurement of how firmly a user is holding the vibrating tool. This is a recommendation of the new standards and the reading from the contact force sensor is also displayed on the screen.

The SV 107 accelerometer is based on MEMS, the very latest in transducers technology. MEMS gives many advantages including shock resistance, very low power consumption and frequency response down to DC. The usage of MEMS breaks the technological barrier of a weight and dimensions additionally reducing the cost of the complete system.







Hand Arm SVANTEK
Hand-Arm Vibration
separator
SVANTEK
Force sensor
separator
OLED SVANTEK
OLED display

Application

Catalogue

SV 103 Hand-Arm Vibration Dosimeter

Unique dosimeter with FORCE detection , which automatically obtains information about the period that the hand is in contact with the vibrating surface and evaluates the total contact time per day in order to calculate the A(8) exposure.
Download PDF

Main

Features

background

ISO 5349-2 and European 2002/44/EC

A(8) vibration exposure both in m/s² and points

SV 103 measures the A(8) vibration exposure in accordance with the ISO 5349-2 and European 2002/44/EC both in m/s² and points. The exposure time is automatically selected with the force detection sensor and can be verified in the PC software.
5349 SVANTEK
background

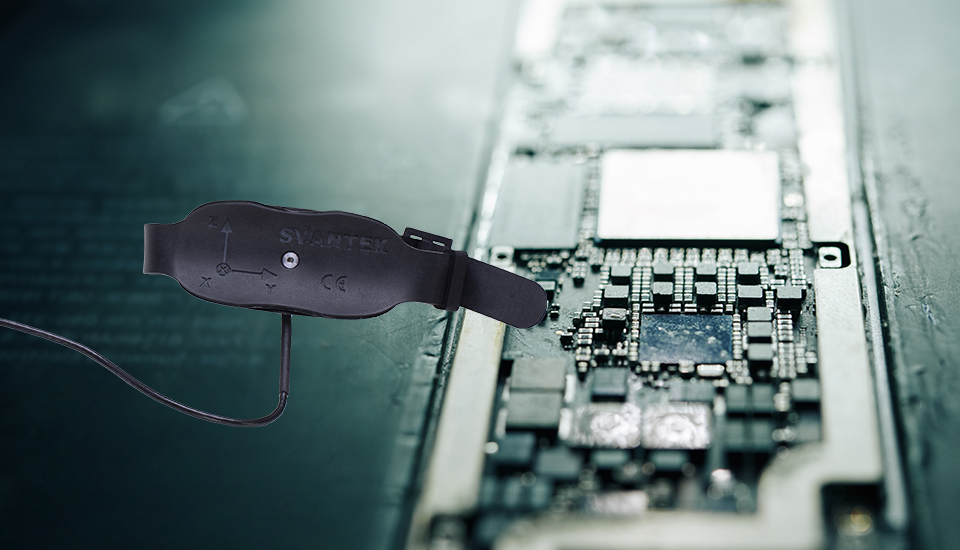

MEMS accelerometers

The robust triaxial accelerometer

The SV 107 tri-axial MEMS accelerometer is extremely robust, SHOCK RESISTANT, uses very low power and is free of the DC-shift effect that adversely affects systems based on piezoelectric accelerometers. The SV 107 TRI-AXIAL accelerometer meets requirements of the ISO 5349 and is worn on the palm of the hand so it can be used underneath gloves.
SV103 Human Vibration Meter
background

Contact force

Detection of the contact of the hand with a tool

ISO 5349-2 defines that hand-arm vibration measurement should be made when worker’s hands makes contact with the vibrating surface until the contact is broken. With the SV 107 vibration sensor, it became possible to automatically obtain information about the period that the hand is in contact with the vibrating surface and to obtain the daily exposure time.
SV103 Human Vibration Meter
5349 SVANTEK

ISO 5349-2 and European 2002/44/EC

A(8) vibration exposure both in m/s² and points

Read more

SV103 Human Vibration Meter

MEMS accelerometers

The robust triaxial accelerometer

Read more

SV103 Human Vibration Meter

Contact force

Detection of the contact of the hand with a tool

Read more

Measurement

Applications

background

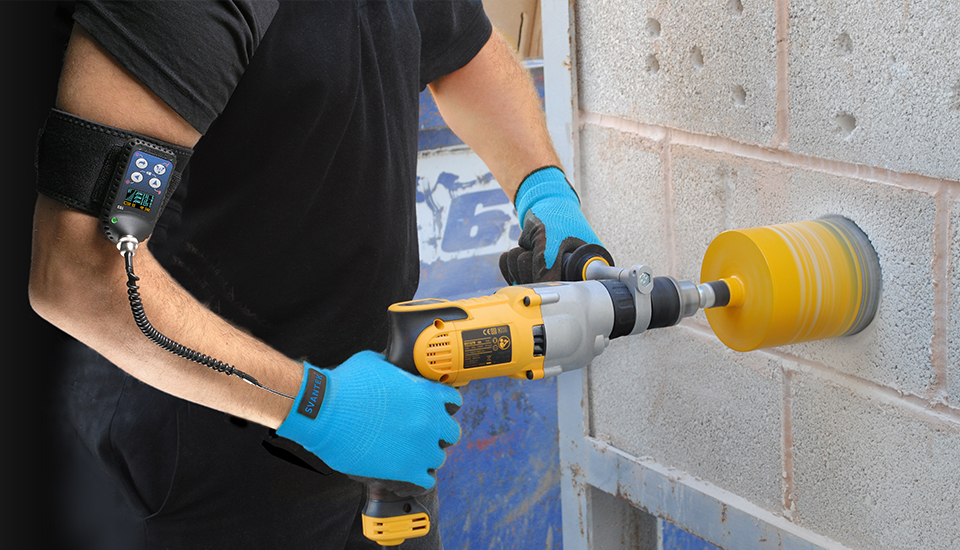

Hand-Arm Vibration

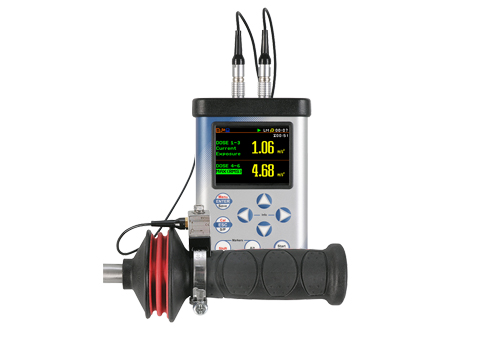

Hand-arm vibration meter
in accordance to ISO 5349 and ISO 8041

Hand-arm vibration occurs when one or both of the upper limbs is in contact with a vibrating surface (e.g. power tools, steering wheels and levers to control vehicles). Changes in the human body resulting from contact with mechanical vibrations are recognized as an occupational disease called “vibration syndrome” (or “vibration disease”). The only effective way to avoid vibration disease is by prevention. The ISO 5349 contributes to the gathering of consistent data in order to improve occupational safety. In particular, ISO 5349 specifies the general requirements for the measurement and evaluation of human exposure to hand-transmitted vibration.
Read more
SV103 Human Vibration Meter

Product

Videos

SV 103 Hand-Arm Vibration Meter

Hand-arm vibration panel with Supervisor software

Ask for

SV 103 – Personal Human Vibration Exposure Meter

SV 103 – Personal Human Vibration Exposure Meter

The standard SV 103 kit includes personal vibration meter together with a detachable triaxial accelerometer SV107 with set of adapters for a hand mounting. The USB cable for the communication with PC software (license for PC software is included) and the SA 54 charger for recharging the inbuilt battery is provided. Each SV103 has its factory calibration certificate and 36-months warranty upon registration.

See all accessories
SF103_3OCT - License of 1/1 & 1/3 octave analysis for SV 103

SF103_3OCT - License of 1/1 & 1/3 octave analysis for SV 103

License of 1/1 & 1/3 octave analysis for SV 103

SF103_WAV - License for wave recording for SV 103

SF103_WAV - License for wave recording for SV 103

SF103_WAV - License for wave recording for SV 103

Open list (7)













    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.










      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.


      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      ]

      Technical

      Specification

      SV 103 – Personal Human Vibration Exposure Meter

      Applications

      Hand-arm vibration
      Whole-body vibration

      Hardware Features

      Number of channels 3
      Communication Interfaces USB
      Display
      Keyboard 4 buttons
      Memory 32 GB
      Battery type Ni-MH
      Operating time 24 h
      Operating temperature range -10 °C to 50 °C
      Humidity range up to 90 % RH, non-condensed
      Weight 160 grams
      Size 88 x 49.5 x 19.2 mm

      Vibration measurement features

      Standards ISO 8041:2021, ISO 5349-1:2001; ISO 5349-2:2001;
      Number of channels 3
      Sensor type MEMS
      Measurement range 0.2 m/s2 RMS ÷ 2000 m/s2 Peak
      Frequency range 0.1 ÷ 2000 Hz
      Profiles per channel 2
      Time constants Linear
      1/1 octave option
      1/3 octave option
      WAV recording option
