803 geophones vertical

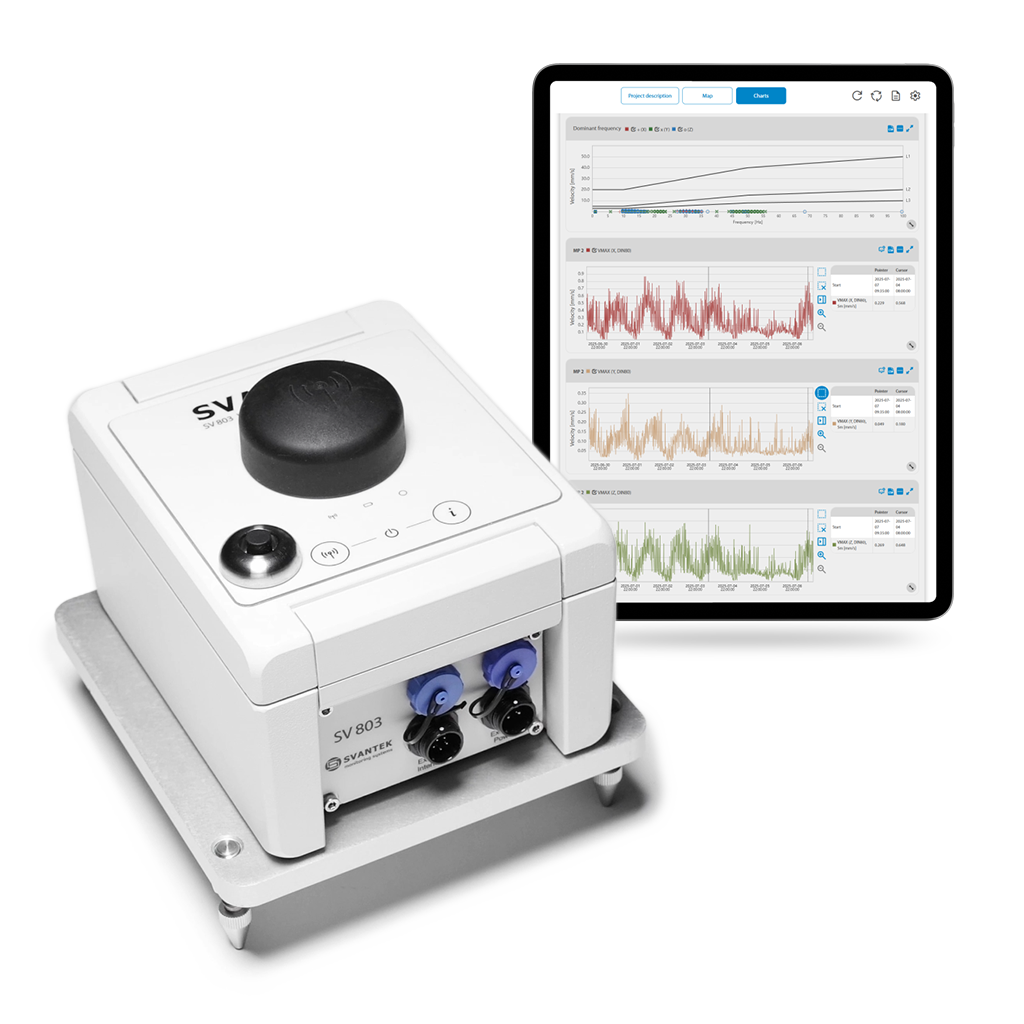

Vibration Monitor
SV 803

Building and Ground Vibrations

77_Ground vibration

Building
Ground
Vibrations

class 1

Class 1
Vibration
ISO 4866

40_DinStandard

DIN 4150-3
BS 7385-2
VC Curves

4G communication

4G Transfer
SvanNET
Online Platform

16_ppv

PPV
WAV & FFT
1/3 OCTAVE

wireless vibration monitor 803 svantek

4G modem

3-axial vibration sensors (geophones)

Solar panel connector

Waterproof connectors military standard

External antenna connector

Bluetooth modem

internal battery (up to 6 months)

IP 67 housing

Buildings and ground vibrations
Smart Monitoring

  • 3-year warranty for hardware
  • 3-axial vibration measured simultaneously
  • PPV, VDV, FFT, 1/3 OCTAVE, and WAV recording
  • DIN, BS, VC limit curves inbuilt
  • User adjustable limit curves
  • Vibration events compared to limit curves directly in the device
  • Instant SMS and email alarms

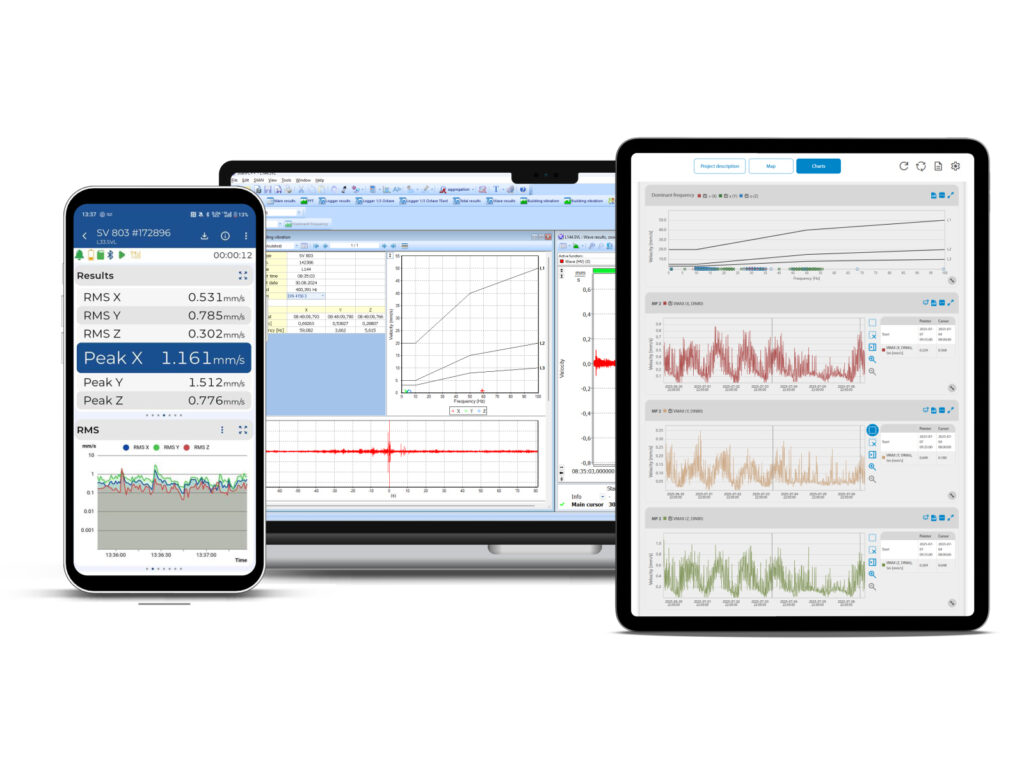

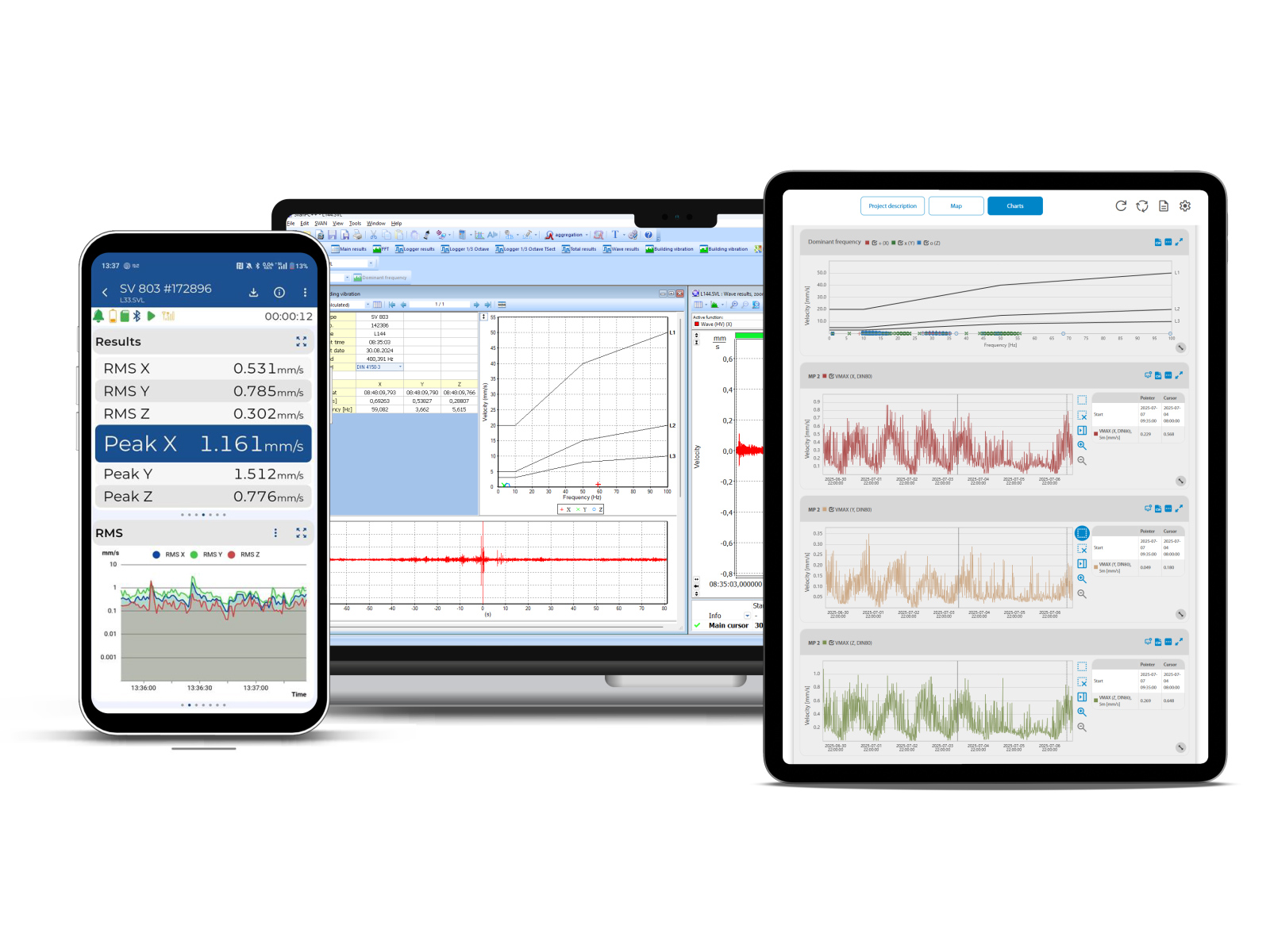

  • Remote access to vibration and noise data via SvanNET cloud service
  • Automatic reporting from the SvanNET cloud service
  • Powering from the internal battery, mains, or solar power

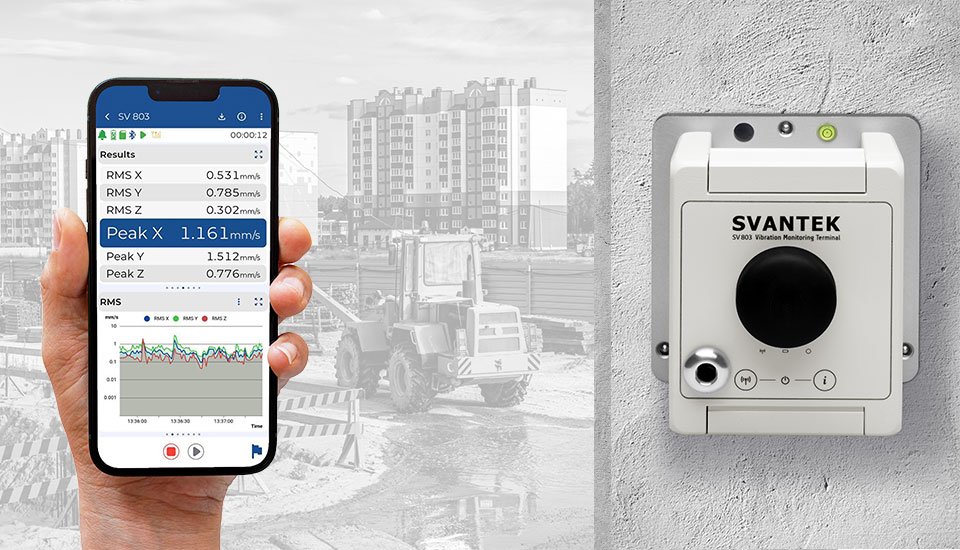

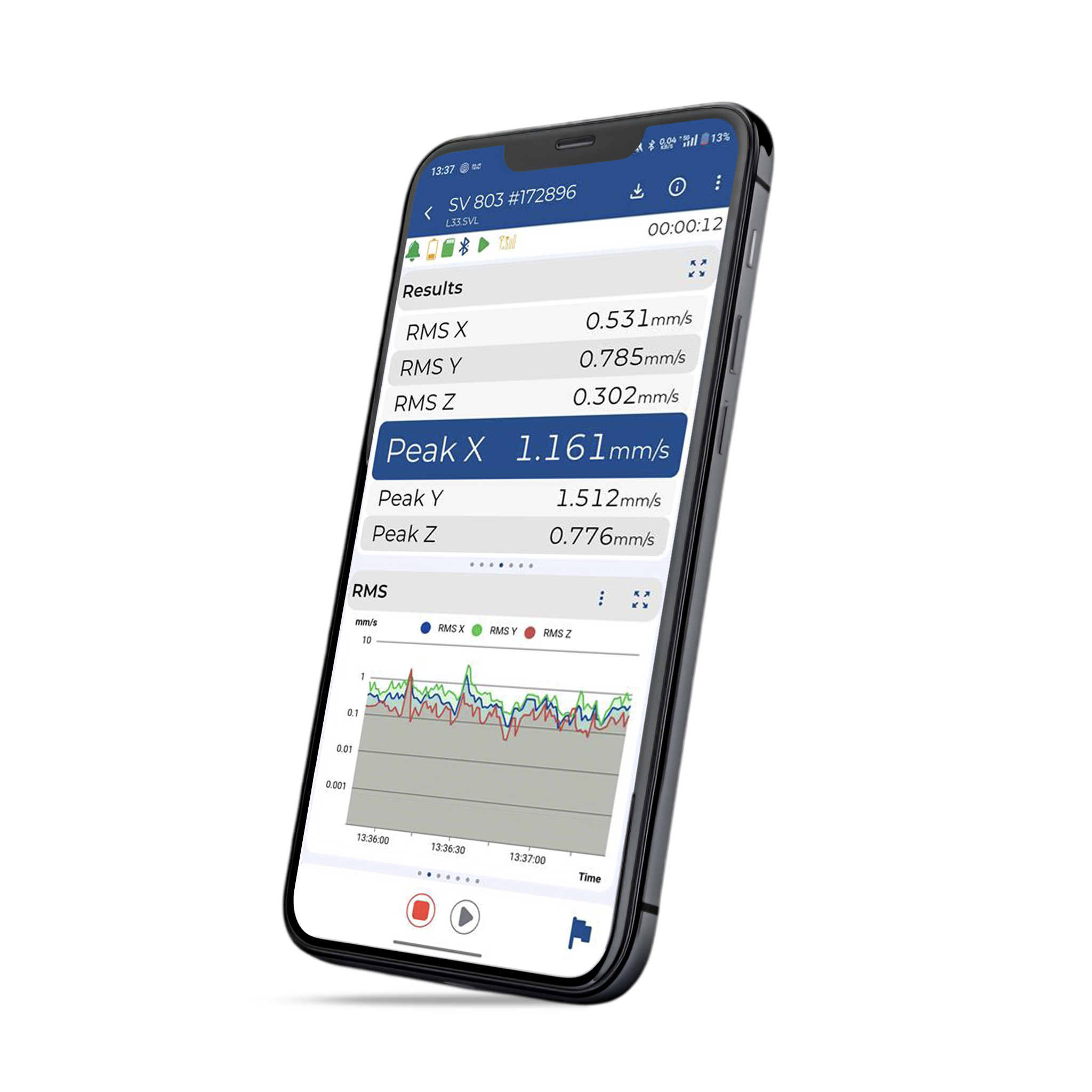

  • Bluetooth modem for mobile app
building-and-vibration-applications

Class 1 Noise
MEMS sensor

Class 1 Vibration
Geophone Sensor

Pre-construction &
Construction surveys

Dust moniotring

Vibration Monitoring Applications

  • Pre-construction & construction surveys
  • Construction vibration monitoring
  • Piledriving equipment vibration levels
  • Drilling and blasting monitoring
  • Blast demolition
  • Dust Monitoring
  • Machine vibration monitoring
  • Ground vibration monitoring
  • Construction instrumentation & monitoring software
  • Underground mining
  • Road and railway vibration tracking
