Ask for price

Noise dosimeter

SV 104A

The SV 104A is an advanced personal noise dosimeter compliant with UK regulations like the Control of Noise at Work Regulations 2005 and British Standard BS EN 9612. It features Bluetooth connectivity and is supported by the Assistant smartphone app. Users can customize settings via PC software, which are then saved in the device’s memory for quick access.

The dosimeter comes with a durable MEMS microphone with a lifetime warranty and includes a tri-axial vibration accelerometer to filter out anomalies in noise measurements. Its voice comment feature and broad measurement range of 43 dB to 141 dB make it versatile for various UK work environments.

The device stands out for its auto-calibration function, user-friendly OLED display, and ample 8 GB storage. It’s designed for ease of use, making it a reliable and comprehensive choice for noise monitoring in the UK.

What is noise dosimeter used for?

In the UK, a noise dosimeter is primarily used for monitoring and assessing occupational noise exposure in compliance with the Control of Noise at Work Regulations 2005. It helps employers identify areas or tasks where workers are exposed to hazardous noise levels and need protective measures. The device is often used in various industries such as manufacturing, construction, and entertainment to ensure that noise levels remain within legal limits, thereby safeguarding workers’ hearing health. It can also be used in legal proceedings as evidence of compliance or non-compliance with noise regulations.

patented sound level meter
Patented
separator
technologia MEMS
MEMS
separator
mobile app sound level meter
Bluetooth Dosimeter
separator
frequency analysis
Octave Bands

Sound dosimeter

Catalogue

Sound Dosimeter

Did you know, that our patented MEMS microphone used in SV 104A personal acoustic dosimeters is resistant to accidental mechanical shocks and has a life-time warranty?
Download PDF
sound dosimeter pdf

Dosimeter for noise

Features

background

Personal noise dosimeter

Wearable dosimeter for noise

In the UK, a personal noise dosimeter is a specialized device worn by workers to measure their individual exposure to noise levels over a specified period. The device helps in complying with the Control of Noise at Work Regulations 2005, which aim to protect employees from hearing damage due to excessive noise exposure. Unlike stationary noise meters, personal noise dosimeters are attached to the worker's clothing and provide a more accurate representation of the worker's actual noise exposure throughout the day. The data collected can be used to assess whether protective measures, such as ear protection or changes in work processes, are needed to reduce noise exposure to safe levels.
personal noise dosimeter
background

Noise dosimetry testing

Identify noise sources with your noise dosimeter

Noise dosimetry testing is conducted to comply with the Control of Noise at Work Regulations 2005. The noise dosimeter is typically worn by workers throughout their work shift to measure their exposure to noise levels. This is an unattended type of measurement, meaning it runs automatically without requiring constant supervision. However, there are challenges such as the dosimeter being accidentally dropped or removed by workers. Advanced features like octave analysis and built-in vibration detection can identify such anomalies, making it easier to exclude them from the final noise exposure calculations. Additionally, audio recording option, helps in identifying and excluding unwanted noise sources that are not related to the work being performed, such as radio music. This ensures that the noise level data collected is as accurate as possible, aiding in the effective management of noise risks in the workplace.
noise dosimetry testing
background

Bluetooth dosimeter

Dosimeter noise monitoring app

The Bluetooth® dosimeter features a interface that allows for seamless interaction with mobile devices like smartphones or tablets. Using the Assistant Pro app, users can start and stop measurements remotely. The app also provides real-time previews of the current noise levels being recorded. Additionally, the app is equipped with an alarm feature that notifies users when preset noise limits are exceeded, offering an extra layer of safety and convenience in monitoring noise exposure.
bluetooth dosimeter
background

Noise dosimeter calibration

Auto-calibration facility that simplifies the calibration process

To streamline noise dosimetry measurements, the SV 104A dosimeter features an auto-calibration function. Upon detecting a calibration signal, the device automatically calibrates itself and saves the calibration data. This data is stored alongside the measurement file, both before and after the measurement is taken. This ensures accuracy and simplifies the process, eliminating the need for manual calibration.
dosimeter calibration
background

Vibration event detection

inbuilt tri-axial vibration sensor by BS EN 9612

In compliance with BS EN 9612, the SV 104A dosimeter comes equipped with an inbuilt tri-axial vibration sensor. This sensor is designed to detect mechanical shocks and vibrations that could potentially skew noise measurement results. It also identifies periods when the dosimeter is not in use by the worker. These events are recorded and marked in the device's time history, allowing for easy exclusion from the overall noise dose calculation. This feature enhances the accuracy and reliability of the noise measurements.
How do you wear a noise dosimeter
personal noise dosimeter

Personal noise dosimeter

Wearable dosimeter for noise

Read more

noise dosimetry testing

Noise dosimetry testing

Identify noise sources with your noise dosimeter

Read more

bluetooth dosimeter

Bluetooth dosimeter

Dosimeter noise monitoring app

Read more

dosimeter calibration

Noise dosimeter calibration

Auto-calibration facility that simplifies the calibration process

Read more

How do you wear a noise dosimeter

Vibration event detection

inbuilt tri-axial vibration sensor by BS EN 9612

Read more

Personal noise monitoring

Application

background

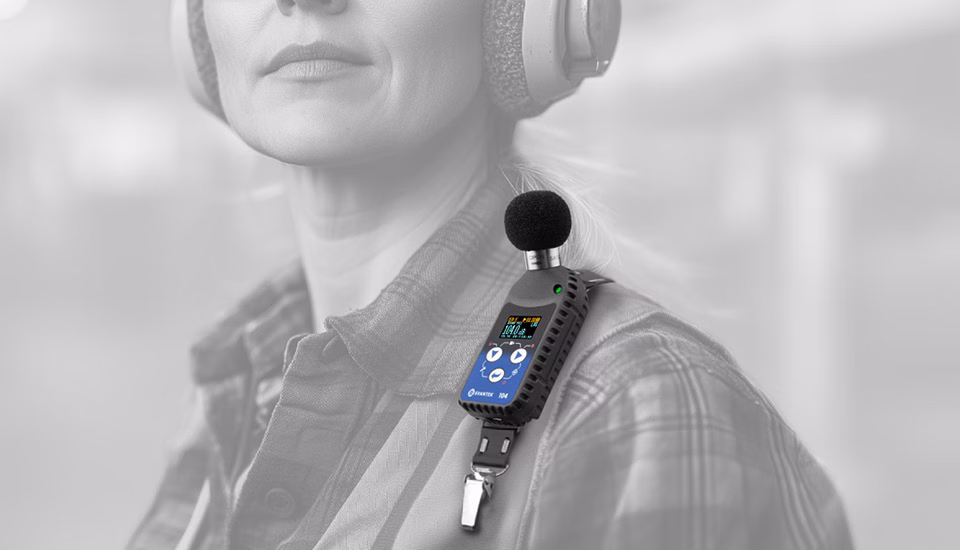

Occupational Noise

Control of Noise at Work Regulations 2005

In the UK, personal noise monitoring in the workplace is primarily governed by the Control of Noise at Work Regulations 2005. This regulation aims to protect workers from excessive noise levels that could lead to hearing loss or other health issues. Personal noise dosimeters are often used for this type of monitoring. These are small devices worn by workers throughout their shift to measure their exposure to noise. The dosimeter collects data on noise levels in different work environments and activities, allowing employers to assess whether they are in compliance with legal limits. The data can also be used to identify areas or tasks where noise reduction measures are needed. The device typically measures noise exposure in terms of the equivalent continuous sound level (LAEQ) and peak noise levels, aligning with British standards such as BS EN 9612.
Read more
occupational noise

Personal noise dosimeter

Videos

New generation of noise dosimeters

The story of SV104 noise dosimeter, the first dosimeter with a MEMS microphone

Noise Dosimeter SV 104A

Discover unique features of the SV 104A noise dosimeter

Noise dosimeters application

How loud a Speedway match is? See how the dosimeter is used in practice

Configuration for noise measurement

Use of the Supervisor Software with noise dosimeters

Buy noise dosimeter kit

Noise dosimeter

Noise dosimeter

The standard SV 104A kit includes ST 104A shock resistant MEMS microphone, windscreen with a steel mounting thread and a USB cable for communication with PC. The instrument has an inbuilt 8 GB memory and a long-range Bluetooth interface for communication with Assistant application. Each SV 104A has its factory calibration certificate, 36-MONTH WARRANTY CARD and LIFE-TIME WARRANTY card on MEMS microphone. The standard kit also includes license for PC software and Assistant application for smart-phones.

See all accessories
SF104A_3OCT - License of 1/1 & 1/3 octave analysis for SV 104A

SF104A_3OCT - License of 1/1 & 1/3 octave analysis for SV 104A

License of 1/1 & 1/3 octave analysis for SV 104A

SF104A_WAV - License of Audio events recording for SV 104A

SF104A_WAV - License of Audio events recording for SV 104A

License of Audio events recording for SV 104A

Open list (9)













    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.










      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.


      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      ]

      Noise dosimeter

      Specification

      Noise dosimeter

      Applications

      Sound measurements
      Occupational noise

      Hardware Features

      Number of channels 1
      Intrisic safety
      Self-vibration detection
      Auto-calibration
      Remote system check
      Keyboard lock
      Remote communication
      Bluetooth
      Communication Interfaces USB 2.0, Bluetooth® 4.0, electrical contacts
      LED indicator
      Display
      Keyboard 3 push buttons
      Memory 8 GB
      Battery type Li-Ion rechargeable cell
      Operating time operation time > 48 hours
      Operating temperature range from -10 o C to 50 o C
      Humidity range up to 90 % RH
      Weight 121 grams
      Size 88 x 49.5 x 19.2 mm
      IP rate IP 65
      Docking station required

      Sound measurements features

      Standards IEC 61252 Ed 1.2 (R2017); ANSI S1.25-1991 (R2020) Class 2 IEC 61672-1 (2013)
      Microphone type ST 104A MEMS microphone, 1/2” housing, patented
      Preamplifier type Integrated
      Linear operating range to IEC 61672 53 dBA RMS ÷ 141 dBA Peak
      Total measurement range 43 dBA RMS ÷ 141 dBA Peak
      Frequency range 20 Hz ÷ 10 kHz
      Weighting filters A, C and Z
      Time constants Slow, Fast, Impulse
      Exchange rates 2, 3, 4, 5, 6
      Criterion levels Selectable
      Profiles per channel 3 with independent settings of filters (x) and time constants (y)
      Min logging step 1s logger step
      Statistics LN (LEQ STATISTICS)
      Statistics in octaves or third octaves
      Audio recording option
      Voice coments
      1/1 octave option
      1/3 octave option

      Noise dosimeter
