Building Acoustics PRO App

your smart companion for comprehensive acoustic measurements

The Svantek Building Acoustics PRO is a smartphone application designed for sound insulation measurements using SVANTEK sound level meters in the UK. Through Bluetooth, it sets up the sound level meter according to ISO 16283 standards. The app provides a step-by-step guide to sound insulation measurements and can handle two sound level meters at once, making the process quicker.

During the measurement, if the data seems off or incorrect, the app sends out an alert to prevent mistakes. Once the measurement is complete, the app allows you to create a report with the sound insulation results.

Sound Insulation Measurements for SITMA users

SITMA users value the ability to directly upload building acoustics measurement files from their phones immediately after a test. The Building Acoustics PRO app presents sound insulation results in tables, plots, and spectrum views. Additionally, the app facilitates ISO 16283 report generation with just a single click. It saves these measurement results as a project, capturing data from both the source and receiving rooms across different sound source positions. If further processing is required, this project can be downloaded to the SvanPC++ Building Acoustic Software.


Bluetooth®
separator

Mobile application
separator

Reverberation Time
separator

STIPA

Building Acoustics App

Features

background

Sound Insulation by ISO 16283

ISO 16283 report generation with just a single click

The Building Acoustics PRO App provides a structured walkthrough for users undertaking building acoustic measurement procedures. This includes measurements like Airborne, Façade, Tapping machine, or Rubber ball. Additionally, the app allows users to enhance their measurement projects by incorporating photos and detailed descriptions into the report.
sound insulation measurement
background

Support for SITMA

quick file upload to the SITMA portal directly from the app

SITMA users value the ability to directly upload building acoustics measurement files from their phones immediately after a test. The Bilding Acoustics PRO app presents sound insulation results in tables, plots, and spectrum views.
SITMA reporting
background

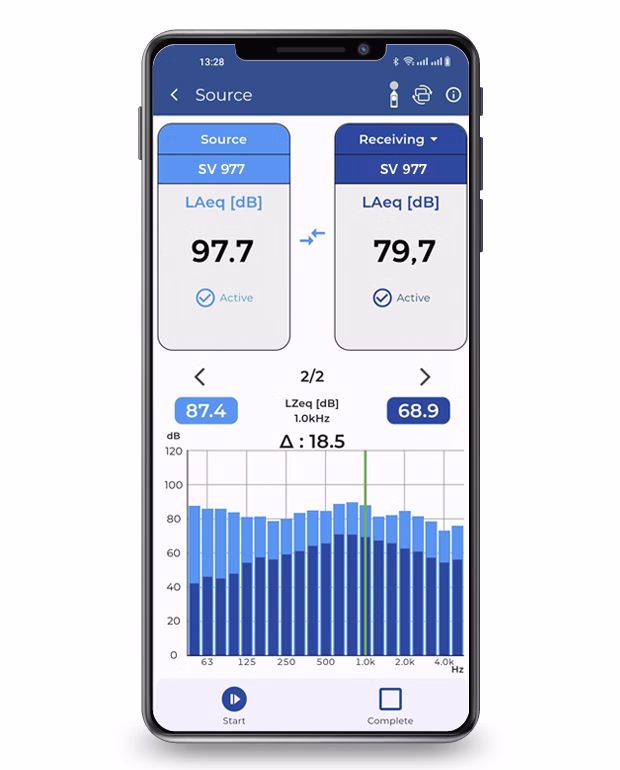

2x Sound Level Meters

The app can support two SV 971A’s at the same time

The Building Acoustic PRO App is designed with a focus on increasing user efficiency. Notably, it facilitates the concurrent use of two Sound Level Meters during a single test. This feature has the potential to cut the test duration in half, providing users with considerable time savings.
two sound level meters measurement
sound insulation measurement

Sound Insulation by ISO 16283

ISO 16283 report generation with just a single click

Read more

SITMA reporting

Support for SITMA

quick file upload to the SITMA portal directly from the app

Read more

two sound level meters measurement

2x Sound Level Meters

The app can support two SV 971A’s at the same time

Read more

Building Acoustics

Applications

background

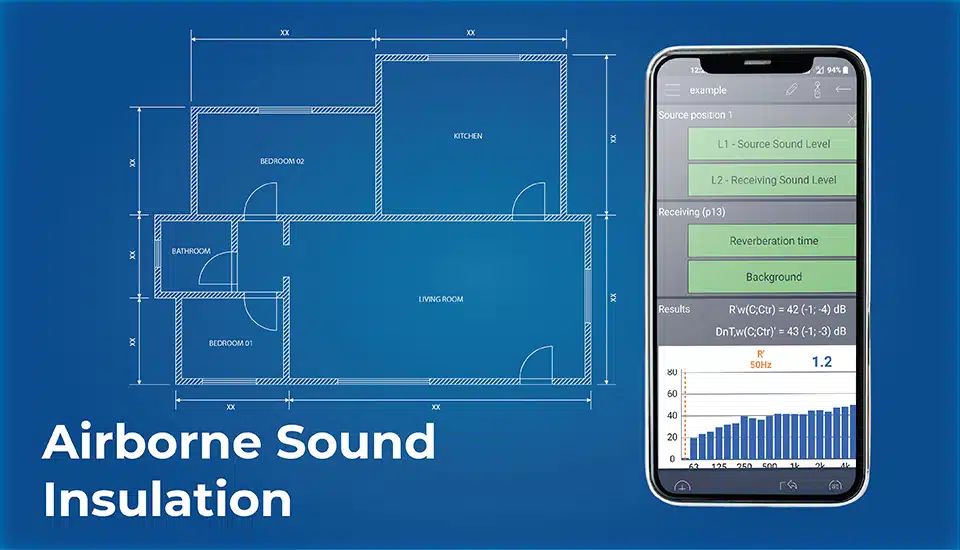

Airborne Sound Insulation

step-by-step ISO 16283 measurement with the mobile App

The Building Acoustics PRO App can measure Airborne Sound Insulation using one or two SVANTEK sound level meters at the same time. It aids users in capturing sound levels at both the source and receiving locations, as well as determining reverberation time and background noise. All data collected can be used to produce reports compliant with the ISO 16283 standard. The results display calculated values such as the apparent sound reduction index R’w(C;Ctr), standardized level difference DnT,w(C;Ctr), and R’ values across twenty-one 1/3-octave bands, with central frequencies ranging from 50 Hz to 5 kHz. Both discrete points and scanning methods are available. To assist users, the App has the capability to incorporate previous measurements, like background noise and reverberation time, into the calculations.
Read more
airborne sound insulation
background

Impact Sound Insulation

with a tapping machine or rubber ball supported by the mobile application

The Building Acoustics PRO App facilitates the measurement of impact sound insulation in line with the ISO 16283 standard, employing both tapping machine and rubber ball methods. Via Bluetooth, the App establishes a real-time connection with the SVANTEK sound level meter. It then utilises the retrieved measurements to compute values like the normalised impact sound pressure level L’n,w(C1), the standardised impact sound pressure level L’nT,w(C1), and L’n values across twenty-one 1/3-octave bands, with central frequencies spanning from 50 Hz to 5 kHz. The software also enables users to specify multiple source positions, with each section providing the option to include supplementary measurements of airborne sound contribution.
Read more
impact sound insulation
background

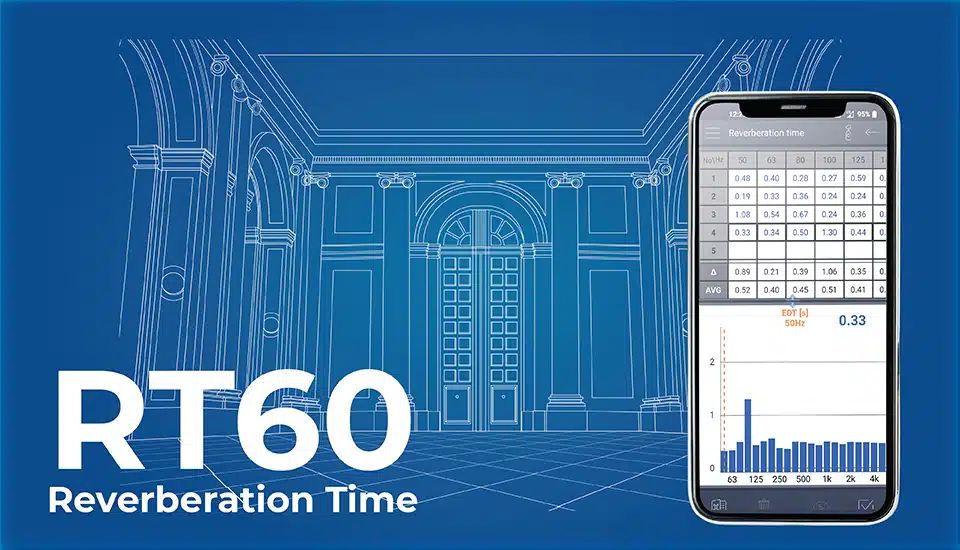

Reverberation Time RT60

remote user interface for decay and impulse reverberation time measurement methods

The new Building Acoustics PRO App offers a user-friendly interface for SVANTEK sound level meters equipped with Bluetooth and the option for reverberation time measurements. It becomes particularly handy when the sound level meter is positioned on a tripod. The real-time Bluetooth connectivity between the app and the meter simplifies both the setup and the downloading of RT60 Reverberation Time results. Guiding the user through the reverberation time measurements, the app provides settings for both the Impulse and Decay methods.
Read more
reverberation time measurement
background

Façade Sound Insulation

calculation of apparent sound reduction index in the mobile app

The Building Acoustics PRO App provides an intuitive user interface for measurements of building façade sound insulation. During the configuration, the application presents the user with a graphical example of a speaker position relative to the external wall in accordance with the standard requirements. The Bluetooth interface makes it possible to measure the airborne insulation with two sound level meters simultaneously – at the source outside the building and in the receiving room. For the user’s convenience, it is also possible to import previous reverberation time and background measurements from other projects. The App presents the calculated apparent sound reduction index R’45,w(C;Ctr) and R’45 values in twenty one 1/3-octave bands with central frequencies from 50 Hz to 5 kHz and provides on-site reporting.
Read more
facade insulation
background

STIPA measurements

mobile app for speech transmission index for public address system measurements

The Building Acoustics PRO App is tailored to assist with STIPA measurements using SVANTEK sound level meters. The application connects directly to the meter, streamlining the process by configuring settings and fetching results in real-time for the necessary STIPA computations. Setup is straightforward, thanks to predefined configurations aligned with widely recognized standards such as IEC 60268-16, AS 1670.4, DIN 0833-4, PN-EN 60849:2001, PNEN 50849:2017, and PN-B-02151-4:2015. Users have the option to incorporate ambient noise into the STI assessment. On the measurement display, users can view comprehensive results encompassing the STI index, STI category (Cat.), LAeq, LCeq, LZeq, a results error status indicating the accuracy of the measurement, and modulation indexes m(f1), m(f2) for seven octave bands with central frequencies ranging from 125 Hz to 8 kHz. Upon completion of measurements, the app facilitates the creation of an editable MS Excel report.
Read more
stipa measurement
airborne sound insulation

Airborne Sound Insulation

step-by-step ISO 16283 measurement with the mobile App

Read more

impact sound insulation

Impact Sound Insulation

with a tapping machine or rubber ball supported by the mobile application

Read more

reverberation time measurement

Reverberation Time RT60

remote user interface for decay and impulse reverberation time measurement methods

Read more

facade insulation

Façade Sound Insulation

calculation of apparent sound reduction index in the mobile app

Read more

stipa measurement

STIPA measurements

mobile app for speech transmission index for public address system measurements

Read more

Building Acoustics Assistant App

Videos

Building Acoustics PRO App - What's new?

Introducing the latest tutorial showcasing the all-new features and updated user interface of the SVANTEK Building Acoustics PRO app.

Building Acoustics PRO App - RT60 measurement

Reverberation time measurement (RT60) using the Building Acoustics PRO mobile application.

Ask for

Building Acoustics PRO App

Building Acoustics PRO App

Building Acoustics Pro application, your smart companion for comprehensive acoustic measurements.

Compatible with Svantek sound level meters equipped with Bluetooth® interface, like SV 977D and SV 971A, this advanced app transforms your acoustic measurement and analysis experiences.

Our sophisticated software streamlines the sound insulation measurement process, following the guidelines outlined by ISO 16283. With a user-friendly interface, it efficiently presents sound insulation results on the display and generates ISO-compliant reports at your convenience. Additionally, this versatile application can be utilized alongside SP 95 Impact Ball for meticulous sound insulation testing in lightweight structures. A project involving measurements from source and receiving rooms for variable sound source positions is effortlessly created during the measurement. Ensuring comprehensive documentation, each project is securely saved in the sound meter's memory, accompanied by relevant measurement files. For a more personalized experience, the Building Acoustics Assistant Pro enables you to add PHOTOS and VOICE comments to the measurement projects, making it an indispensable tool for professionals and enthusiasts alike. For Speech Transmission Index (STIPA) measurements with SV 977D, the application follows the IEC 60268-16:2011 procedure. By leveraging the Bluetooth® interface, it connects to SV 977D, displaying STIPA results and securely saving them in the device's memory.
