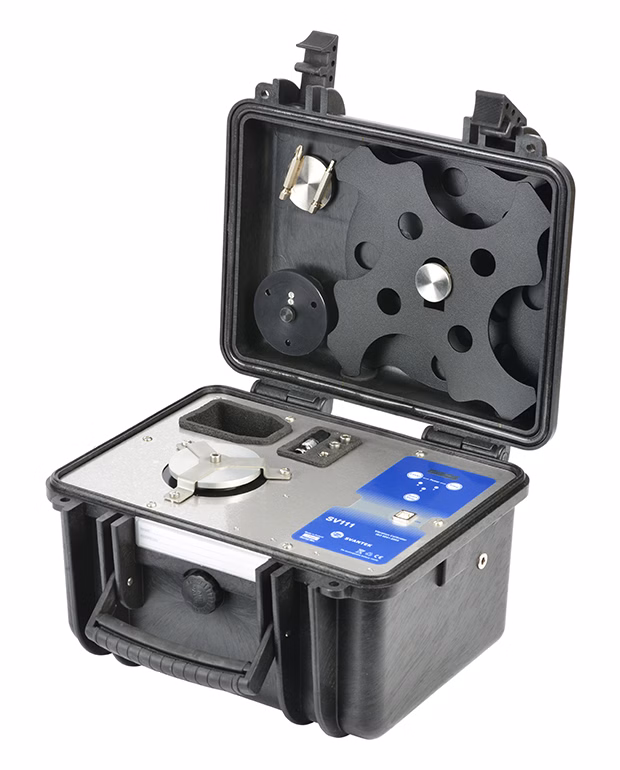

Portable Vibration Calibrator

SV 111

SV 111 Portable Vibration Calibrator is a multi-frequency vibration calibrator designed for in-situ checks according to ISO 8041. The SV 111 is suitable for calibration checks of various types of vibration meters at different frequencies from 16 Hz up to 640 Hz. Depending on the selected frequency user may select level of calibration from 1 m/s2 to 10 m/s2. Shaker can be loaded with large weight up to 1 kilogram at 16 Hz.

The design of the calibrator is based on the built-in triaxial reference accelerometer and microprocessor-controlled shaker. Following ISO 8041 requirement the reference accelerometer measures the cross-axis / transverse vibrations to detect interference on the calibration signal. Faults caused by transverse vibrations are indicated by three LEDS on the calibrator’s panel. This unique solution ensures the excellent stability of the calibration level & frequency independently from mass of the testing object.

For calibration checks of tri-axial sensors set of dedicated adapters is available including a special adapter to Svantek whole-body sensors (seat-pads) for direct mounting on the shaker. Other types of vibration transducers can be conveniently attached using mounting stud, mounting disc or dedicated adapter.








Bestseller
separator
SV110 Vibration Calibrator
ISO 8041
separator
New Features
In-situ checks

Application

Catalogue

SV 111 Vibration Calibrator

Elevate calibration precision with the SV 111 Portable Vibration Calibrator: ISO 8041 Compliant, Multi-Frequency Excellence from 16 Hz to 640 Hz!
Download PDF
sv111 vibration calibrator catalogue

Main

Features

background

Multi-frequency calibrator

Calibration at four frequencies 16 Hz, 80 Hz, 160 Hz and 636 Hz

Calibrator is suitable for all types of vibration transducers for ACCELERATION, VELOCITY and DISPLACEMENT at 15.92 Hz; 79.6 Hz; 159.2 Hz and 636.6 Hz. Depending on the frequency selected, the user may choose the level of calibration from 1 m/s2 to 10 m/s2. Maximum load of 1 kg at 15.92 Hz enables the calibration of the seat accelerometers. The maximum weight of 300 grams at 79.58 Hz enables calibration of accelerometers together with mounting magnets attached.

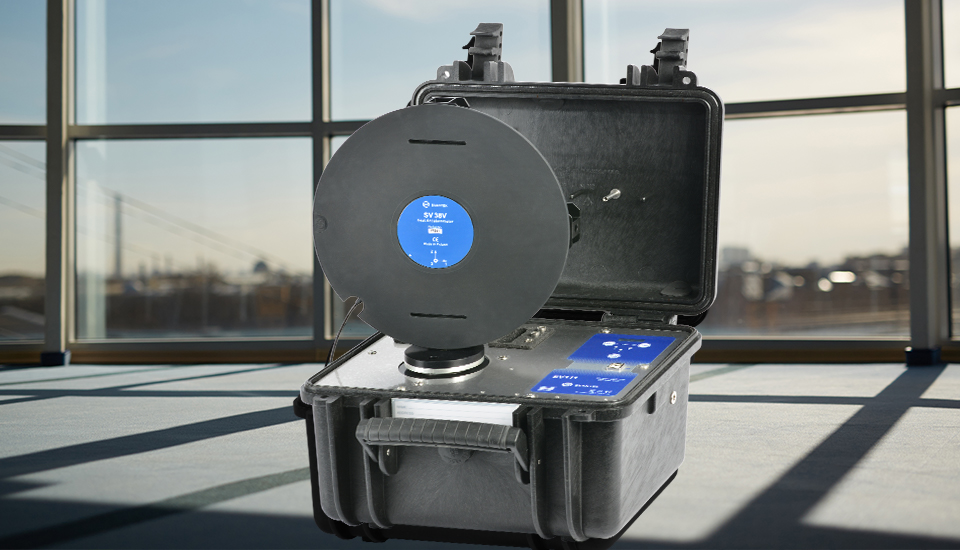

sv111 portable vibration calibrator
background

Design in accordance to ISO8041

Dedicated for in-situ checks of seat accelerometers and hand-arm sensors

The SV111 Portable Vibration Calibratorr is designed for in-situ checks in accordance with the ISO 8041 standard - before and after series of measurements. The device is intended for operation in the field to check that an instrument is working correctly, hence the calibrator is housed in a portable hard-case.
calibration system regulation iso8041
background

Built-in reference sensor

System detects and signals errors during calibration

In accordance with ISO 8041 requirements the reference accelerometer will measure cross-axes / transverse vibrations to detect any interference to the calibration signal. Three LEDs will light up on the calibrator panel whenever a fault caused by transverse vibrations is detected. This unique feature ensures the stability of the calibration level & frequency independently of the object being tested.
reference sensor built-in

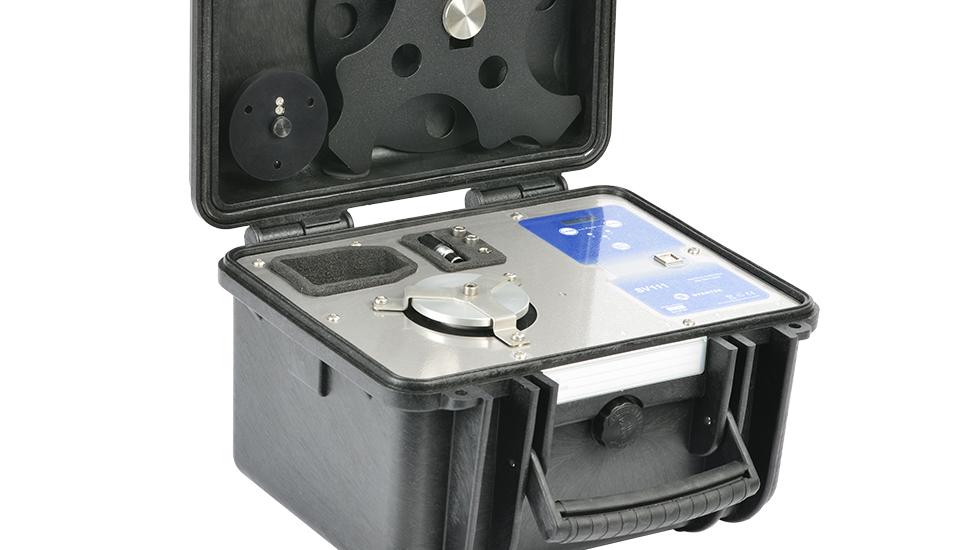

sv111 portable vibration calibrator

Multi-frequency calibrator

Calibration at four frequencies 16 Hz, 80 Hz, 160 Hz and 636 Hz

Read more

calibration system regulation iso8041

Design in accordance to ISO8041

Dedicated for in-situ checks of seat accelerometers and hand-arm sensors

Read more

reference sensor built-in

Built-in reference sensor

System detects and signals errors during calibration

Read more

Product

Videos

Vibration calibrator tutorial

See how to use the vibration calibrator in practice

Ask for

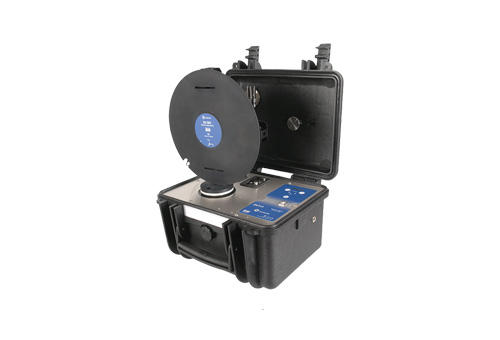

SV 111 – Portable Vibration Calibrator

SV 111 – Portable Vibration Calibrator

The SV 111 is designed to calibrate a variety of vibration meters at different frequencies from 16 Hz up to 640 Hz. Depending on the frequency selected, the user may choose the level of calibration from 1 m/s2 to 10 m/s2. The shaker can be loaded with up to 1 kilogram mass.

See all accessories
SV_CA_VC - Vibration calibrator calibration

SV_CA_VC - Vibration calibrator calibration

Vibration calibrator calibration

SV_CA_SV111 - Factory calibration of SV 111 vibration calibrator

SV_CA_SV111 - Factory calibration of SV 111 vibration calibrator

Factory calibration of SV 111 vibration calibrator

Open list (3)













    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

    Technical

    Specification

    SV 111 – Portable Vibration Calibrator

    Applications

    Hand-arm vibration
    Whole-body vibration
    Machine vibration
    Building/ground vibration

    Hardware Features

    Self-vibration detection
    Communication Interfaces USB
    LED indicator
    Display
    Keyboard 3 buttons
    Battery type rechargeable 6 V / 12 Ah
    Operating time up to 20 hours
    Operating temperature range -10 °C ÷ 50 °C
    Humidity range 25% ÷ 85%
    Weight 8200 grams
    Size 395 x 270 x 194 mm

    Vibration measurement features

    Frequency range 15.92 Hz; 79.58 Hz; 159.2 Hz; 636.6 Hz
