Vibration Calibrator

SV 111

A vibration calibrator, like the SV 111 Vibration Calibrator, is a sophisticated instrument tailored for conducting on-site calibration checks. This type of calibrator is specifically designed to align with the BS EN ISO 8041 standard. Key components include a built-in triaxial reference accelerometer and a microprocessor-controlled shaker. These elements work in tandem to both generate and monitor vibration signals, ensuring accuracy and precision in the calibration process. The device detects any interference in the calibration signal, with any errors promptly indicated by three LEDs on the calibrator’s panel. This setup guarantees exceptional stability in both the calibration level and frequency, regardless of the mass of the object being tested. Such stability is crucial for accurate calibration, making the device an essential tool in various technical and industrial settings in the UK.

What is the use of vibration calibrator?

The primary use of a vibration calibrator is the verification of both uniaxial and triaxial vibration sensors. These include a range of accelerometers used in different contexts: hand-arm, whole-body, and industrial applications. The calibrator allows for checking these sensors at a variety of frequencies (from 16 Hz to 640 Hz) and vibration amplitudes (from 1 m/s² to 10 m/s²). This range ensures versatility for different sensor types and application requirements in the UK. The calibrator’s shaker can handle substantial weights, up to 1 kilogram at 16 Hz, making it particularly suitable for calibrating seatpad accelerometers for whole-body vibration assessments. Triaxial accelerometers are tested using various optional adapters, enabling orientation changes, while uniaxial sensors can be directly mounted on the calibrator’s plate. Additionally, industrial sensors equipped with magnets can be attached to the plate using a special disc.

bestseller
Bestseller
separator
iso
BS EN ISO 8041
separator

In-situ checks

Calibration system

Catalogue

SV 111 Vibration Calibrator

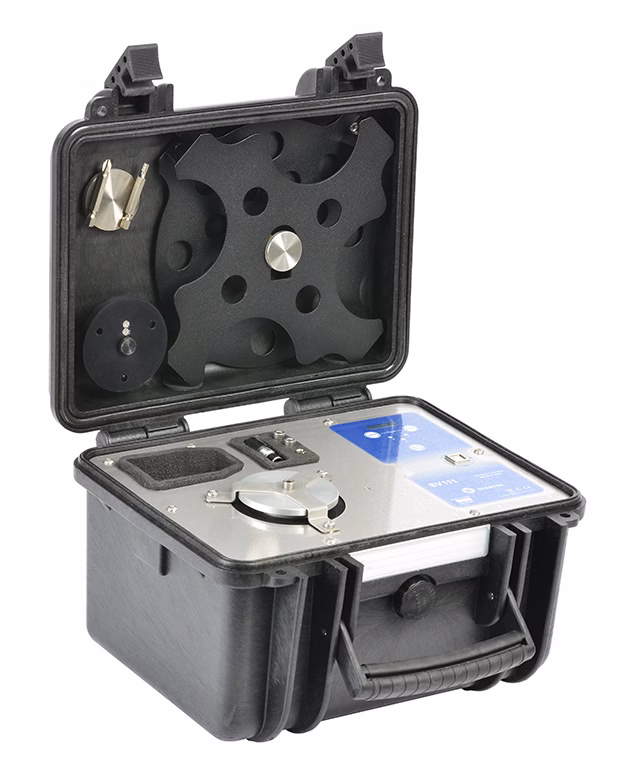

The SV 111 is housed in a portable hard-case, making it ideal for field operations. It features a simple user interface with three push-buttons for frequency and amplitude selection and an OLED graphical screen for displaying selected settings. The hardware is robust, backed by a 3-year warranty. It's designed to perform reliable in-situ checks before and after series of measurements, ensuring instruments are working correctly.
Download PDF
vibration calibrator

Equipment

Features

background

Multi-Frequency and Versatile Calibration

Compatibility with various accessories and instruments

The SV 111 is capable of calibrating various types of vibration meters at frequencies from 16 Hz to 640 Hz. It offers a broad range of calibration intensities from 1 m/s² to 10 m/s², making it suitable for a wide array of vibration sensors including those for hand-arm, whole-body, and industrial applications. It can calibrate all types of vibration transducers for acceleration, velocity, and displacement at specific frequencies (15.92 Hz, 79.6 Hz, 159.2 Hz, and 636.6 Hz).
SV111 Portable Vibration Calibrator
background

BS EN ISO 8041 Specification Compliance

Dedicated for in-situ checks of seat accelerometers and hand-arm sensors

The SV 111 adheres to the ISO 8041-1:2017 standards, ensuring high accuracy and reliability in vibration calibration. The calibrator maintains tight control over amplitude and frequency errors and keeps transverse vibration and harmonic distortion within specified limits, ensuring high precision in calibration. It features a built-in rechargeable battery allowing for up to 20 hours of continuous operation, enhancing its field usability.
calibration system regulations
background

Robust and Reliable

Versatile, reliable, and user-friendly solution for professionals

The SV 111 is housed in a portable hard-case, making it ideal for field operations. It features a simple user interface with three push-buttons for frequency and amplitude selection and an OLED graphical screen for displaying selected settings. The hardware is robust, backed by a 3-year warranty. It's designed to perform reliable in-situ checks before and after series of measurements, ensuring instruments are working correctly. It can calibrate objects up to 1 kilogram at 15.92 Hz, demonstrating its capability to handle a variety of sensor types and sizes.
vibration sensor inside
SV111 Portable Vibration Calibrator

Multi-Frequency and Versatile Calibration

Compatibility with various accessories and instruments

Read more

calibration system regulations

BS EN ISO 8041 Specification Compliance

Dedicated for in-situ checks of seat accelerometers and hand-arm sensors

Read more

vibration sensor inside

Robust and Reliable

Versatile, reliable, and user-friendly solution for professionals

Read more

Vibration calibrator

Applications

background

Industrial Vibration

Suitable tool for calibrating industrial vibration sensors in the UK

The SV111 Portable Vibration Calibrator is well-suited for industrial vibration applications in the UK, owing to its wide frequency calibration range (16 Hz to 640 Hz) and the capability to adjust calibration levels from 1 m/s² to 10 m/s². This versatility ensures its applicability across various industrial settings, where different machinery and equipment require precise vibration monitoring. Compliant with the ISO 8041 standard, the SV 111 assures adherence to international calibration norms, a crucial aspect for industrial sectors in the UK. The calibrator's robust design, coupled with its portability, makes it ideal for on-site use in diverse industrial environments, where sensors are often larger and more robust. Additionally, it can handle significant weights up to 1 kilogram at 16 Hz, accommodating a range of industrial vibration sensors. Its built-in reference sensor and error detection system provide the necessary accuracy and stability for industrial vibration analysis, ensuring reliable calibration of sensors used for monitoring acceleration, velocity, and displacement – key parameters in industrial vibration assessment.
Read more
machine vibration meter
background

Hand-Arm Vibrations

Calibrate hand-arm vibration sensors

The calibrator's design aligns with ISO 8041 standards, which include guidelines for hand-arm vibration measurements. The SV 111 is used to verify vibration meters assessing risk of vibration exposure to workers at 80 and 160 Hz. Excessive exposure to hand-arm vibrations can lead to health issues like Hand-Arm Vibration Syndrome (HAVS). The use of calibrator enables on-site calibration and verification of the meters' accuracy. This capability is crucial for maintaining consistent and reliable monitoring of vibration levels, thereby protecting worker health and ensuring compliance with occupational health and safety regulations.
Read more
Frequency Analysis
background

Whole-Body Vibration

Seatpad testing at 16 Hz and 1 m/s²

The SV111 Portable Vibration Calibrator is adept at calibrating sensors for whole-body vibration measurements, following the ISO 2631 standard. This standard is crucial for assessing vibrations affecting the entire body, which are common in environments where workers operate heavy machinery or vehicles. A key feature of the SV 111 is its ability to calibrate whole seatpads, an essential component in measuring whole-body vibrations. The calibrator can test these seatpads at 16 Hz and 1 m/s², which is a significant aspect of its functionality.
Read more
What causes whole body vibration
machine vibration meter

Industrial Vibration

Suitable tool for calibrating industrial vibration sensors in the UK

Read more

Frequency Analysis

Hand-Arm Vibrations

Calibrate hand-arm vibration sensors

Read more

What causes whole body vibration

Whole-Body Vibration

Seatpad testing at 16 Hz and 1 m/s²

Read more

Vibration calibrator

Videos

Vibration calibrator tutorial

See how to use the vibration calibrator in practice

Vibration calibrator

Vibration Calibrator

Vibration Calibrator

The SV 111 is designed to calibrate a variety of vibration meters at different frequencies from 16 Hz up to 640 Hz. Depending on the frequency selected, the user may choose the level of calibration from 1 m/s2 to 10 m/s2. The shaker can be loaded with up to 1 kilogram mass.

See all accessories
SV_CA_VC - Vibration calibrator calibration

SV_CA_VC - Vibration calibrator calibration

Vibration calibrator calibration

SV_CA_SV111 - Factory calibration of SV 111 vibration calibrator

SV_CA_SV111 - Factory calibration of SV 111 vibration calibrator

Open list (3)













    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.


    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

    Technical

    Specification

    Vibration Calibrator

    Applications

    Hand-arm vibration
    Whole-body vibration
    Machine vibration
    Building/ground vibration

    Hardware Features

    Self-vibration detection
    Communication Interfaces USB
    LED indicator
    Display
    Keyboard 3 buttons
    Battery type rechargeable 6 V / 12 Ah
    Operating time up to 20 hours
    Operating temperature range -10 °C ÷ 50 °C
    Humidity range 25% ÷ 85%
    Weight 8200 grams
    Size 395 x 270 x 194 mm

    Vibration measurement features

    Frequency range 15.92 Hz; 79.58 Hz; 159.2 Hz; 636.6 Hz
