SV 100A

Whole-Body Vibration Dosimeter

About

The SV 100A is a wireless whole-body vibration exposure meter suitable for whole-body measurements in accordance with ISO 2631-1. Suitable for taking measurements both on the seat and seat-back, the device uses the very latest technology and is ease of use. The instrument is equipped with 4 push buttons and a small OLED display that allows basic configuration in the field.

The device is equipped with both RMS and RMQ detectors which allows the calculation of Daily Vibration Exposure A(8) based on RMS and VDV simultaneously. All measurement results are stored in a large 8 GB internal memory which allows continuous recording over long periods. The standard 2.0 USB interface allows fast data download and is also used for battery recharging.

For advanced users, the SV 100A offers frequency analysis in 1/1 or 1/3 octaves and time domain signal recording to wave format in accordance to ISO 2631-5 that is compatible with popular recalculation software. The SV 100A is fully configurable with our Supervisor software. It can quickly and easily be setup for all the weighting filters required by ISO standards.

Svantek
whole-body vibration

OLED display

smart-phone application

Main

Features

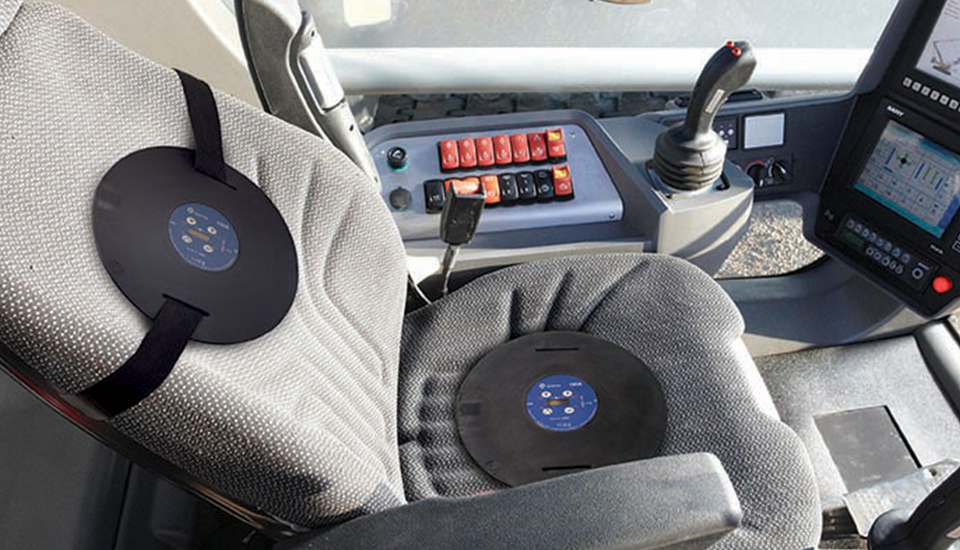

Automatic presence detection

Built-in force sensors detect presence of a vehicle driver

The information from built-in force sensors in the SV 100A is recorded together with triaxial vibration data for automatic indication of the real exposure time for the calculation of the A(8) vibration exposure. The sensitivity of force sensors can be adjusted in the SV100A firmware.
SV100A SVANTEK

ISO 2631-1 and EU Vibration Directive

measures the A(8) and the overall vibration total value (VECTOR) in accordance with ISO 2631-1 and EU Vibration Directive

The SV 100A measures the A(8) vibration exposure and the overall vibration total value (VECTOR) in accordance with ISO 2631-1 and EU Vibration Directive. The A(8) result is given in: m/s2 (RMS), m/s1.75 (VDV) and Points. The SV 100A monitors the time left to limits and activates the alarm when the limits are reached.
ISO SVANTEK

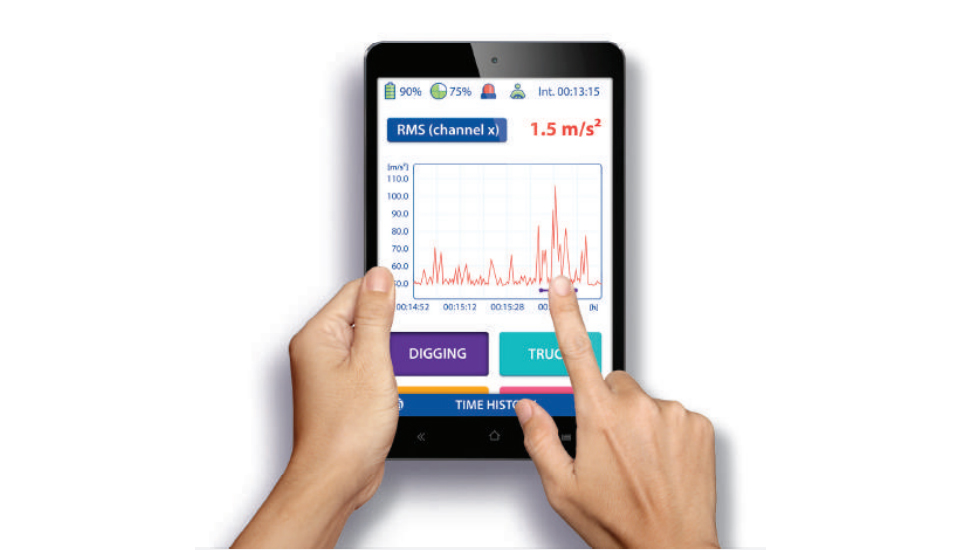

Assistant application and GPS

dedicated smart-phone application

The SV 100A wireless BT interface enables current results to be previewed on a smart-phone or tablet using our Assistant application. The smart-phone application also signals an alarm when the set vibration limits are exceeded. The Assistant enables correlation of GPS data with the vibration data and plots them on a map. This solution gives a powerful tool for projecting the A(8) vibration exposure with respect to the vehicle speed and road conditions.
Assistant App SVANTEK

Motion sickness

vibrations with frequencies below 0.5 Hz

Vibrations with frequencies below 0.5 Hz cause so called motion sickness, primarily in the standing and sitting postures. This type of vibrations are typical for ships and other sea vessels. The most recognized symptoms of motion sickness are dizziness and vomiting. The SV 100A is capable to measure vibration frequencies from 0.1 Hz which makes it suitable for motion sickness measurements in accordance to ISO 2631-1. The low frequency vibrations are measured in vertical axis with Wf weighting filter.
SVANTEK
SV100A SVANTEK

Automatic presence detection

Built-in force sensors detect presence of a vehicle driver

Read more

ISO SVANTEK

ISO 2631-1 and EU Vibration Directive

measures the A(8) and the overall vibration total value (VECTOR) in accordance with ISO 2631-1 and EU Vibration Directive

Read more

Assistant App SVANTEK

Assistant application and GPS

dedicated smart-phone application

Read more

SVANTEK

Motion sickness

vibrations with frequencies below 0.5 Hz

Read more

Main

Applications

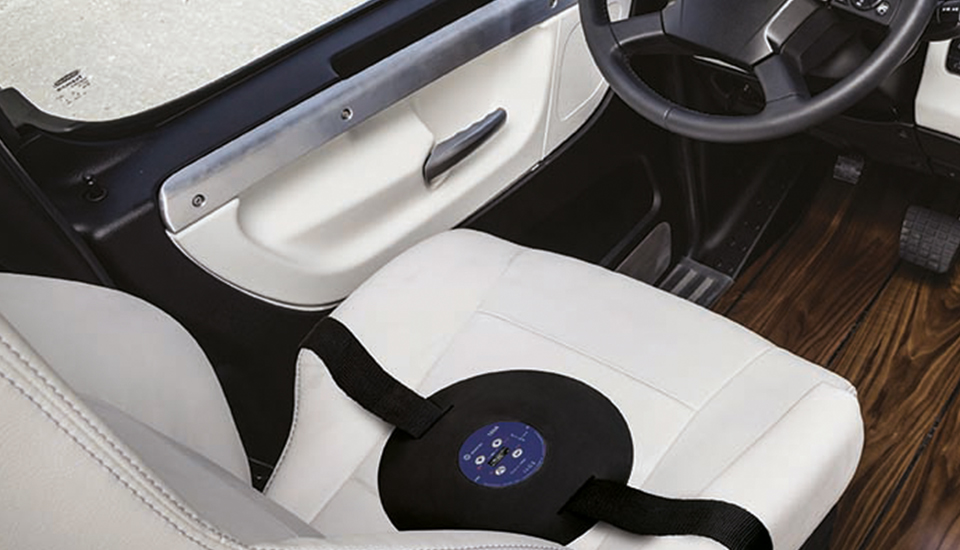

Whole-body vibration

suitable for taking measurements both on the seat and seat-back

The SV 100A measures the A(8) vibration exposure and the overall vibration total value (VECTOR) in accordance with ISO 2631-1 and EU Vibration Directive. The A(8) result is given in: m/s2 (RMS), m/s1.75 (VDV) and Points. The SV 100A monitors the time left to limits and activates the alarm when the limits are reached. When changing the orientation of the SV 100A to the vertical, the directions of axes and weighting filters are automatically adjusted in accordance to ISO 2631-1.
Read more
SV100A SVANTEK

Ask for

SV 100A – Whole-Body Vibration Dosimeter
SV 100A – Whole-Body Vibration Dosimeter
The standard SV 100A kit includes built-in 8 GB memory and USB cable for the communication with PC software (license for PC software is included). The license for Assistant application is also included. The SA 54 charger for recharging an inbuilt battery is provided. The kit is delivered in the SA 145 carrying case. Each SV 100A has its factory calibration certificate and 36-months warranty from the registration date.

See all accessories

Open list

SF100A_3OCT - License of 1/1 and 1/3 octave analysis for SV 100A

SF100A_3OCT - License of 1/1 and 1/3 octave analysis for SV 100A

License of 1/1 and 1/3 octave analysis for SV 100A

SF100A_WAV - License for wave recorder for SV 100A

SF100A_WAV - License for wave recorder for SV 100A

License for wave recorder for SV 100A

SF100A_WF - Wf frequency weighting option for SV100A

SF100A_WF - Wf frequency weighting option for SV100A

License for Wf frequency weighting to SV100A for measurements of effects of vibration on the incidence of motion sickness







    or fill your contact details:

    Products in the enquiry (1)

    I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

    I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

    I hereby consent to receiving from SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81, via electronic means to the e-mail address I have provided, the newsletter and marketing information on the products and services offered by SVANTEK SP. Z O.O., within the meaning of the Act on providing services by electronic means.

    I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

    Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

    I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.




      or fill your contact details:

      Products in the enquiry (1)

      Please select desired dates:

      I hereby consent to the processing of my personal data, i.e. my full name and e-mail address, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of receiving marketing information on the products and services offered by SVANTEK SP. Z O.O. via electronic means of communication, in particular via e-mail, in accordance with the provisions of Article 10 sec. 1 and 2 of the Act on providing services by electronic means.

      I hereby consent to the processing of my personal data, i.e. my full name and phone number, by SVANTEK SP. Z O.O. with its registered office in Warsaw at ul. Strzygłowska 81 for the purpose of marketing activities with the use of telecommunications terminal equipment and automatic calling machines within the meaning of the Telecommunications Act.

      I declare that I have been informed that my data may be transferred to entities that process personal data on behalf of the Administrator, in particular to distributors - such entities process data on the basis of an agreement with the Administrator and exclusively in accordance with its instructions. In such cases, the Administrator requires third parties to maintain the confidentiality and security of information and verifies that they provide appropriate measures to protect personal data.

      Some of the entities processing personal data on behalf of the Administrator are established outside the EEA. In connection with the transfer of your data outside the EEA, the Administrator verifies that these entities provide guarantees of a high level of personal data protection. These guarantees stem in particular from the obligation to apply the standard contractual clauses adopted by the Commission (EU). You have the right to request a copy of the standard contractual clauses by sending a request to the Controller.

      I declare that I have been informed on my right to withdraw my consent to the processing of my personal data at any time, to access the provided personal data, to rectify, erase, restrict processing and object to the processing of my data, as well as the right to lodge a complaint with the President of the of the Personal Data Protection Office in the event of an infringement of the provisions of GDPR.

      Technical

      Specification

      SV 100A – Whole-Body Vibration Dosimeter

      Applications

      Hand-arm vibration
      Whole-body vibration

      Hardware Features

      Number of channels 3
      Communication Interfaces USB, Bluetooth
      Keyboard 4 keys
      Memory 8 GB
      Battery type Ni-MH rechargeable cells
      Operating time >24 h
      Operating temperature range from -10 °C to 50 °C
      Humidity range up to 90 % RH, non-condensed
      Weight Approx. 500 grams
      Size o/ 235mm x 12 mm

      Vibration measurement features

      Standards ISO 8041:2005; ISO 2631-1:1997; ISO 2631-2:2003; ISO 2631-5:2004;
      Number of channels 3
      Sensor type MEMS
      Measurement range 0.01 m/s2 RMS ÷ 157 m/s2 PEAK
      Frequency range 0.1 Hz ÷ 180 Hz
      Profiles per channel 2
      Weighting filters Wd, Wk, Wm, Wb (ISO 2631) and corresponding Band Limiting Filters according to ISO 8041:2005
      Time constants Linear
