Human Vibration

Hand-Arm and Whole-Body Vibration Measurement System

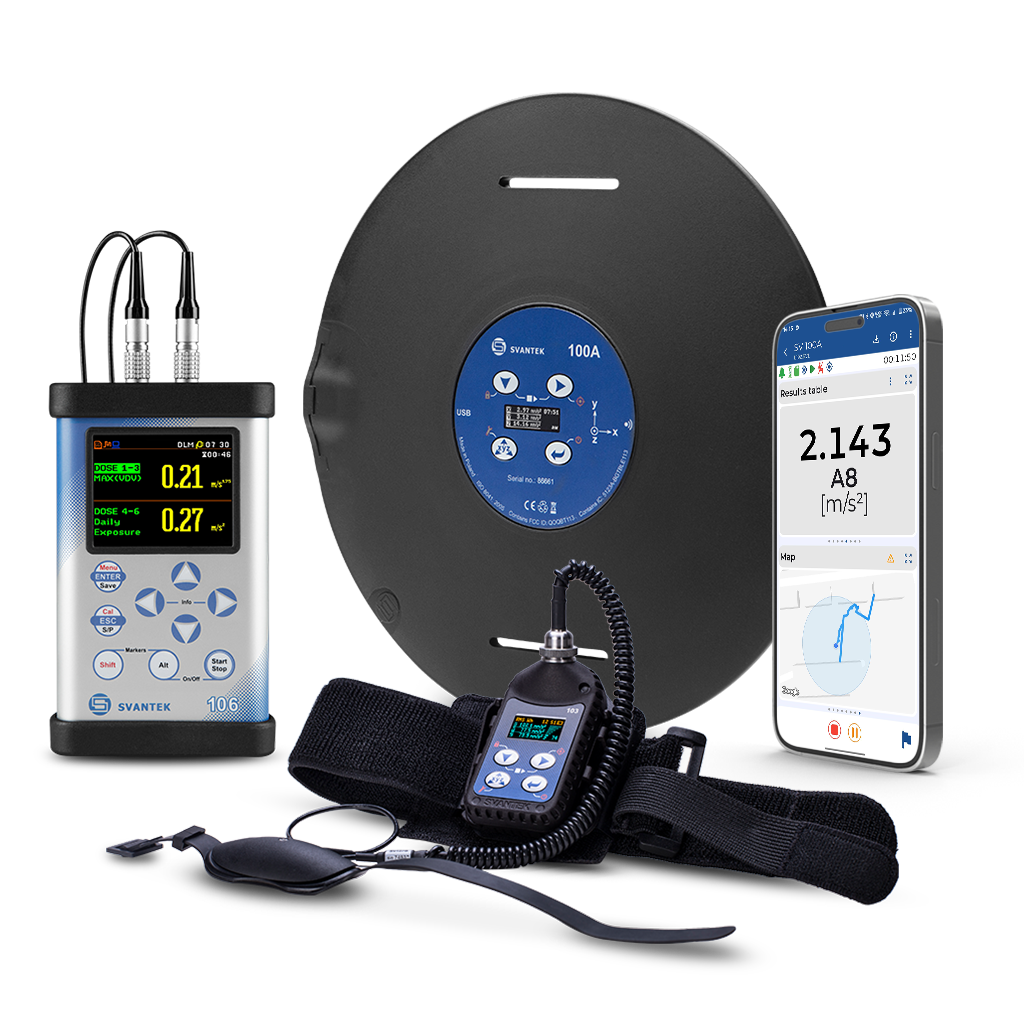

Human vibration meters

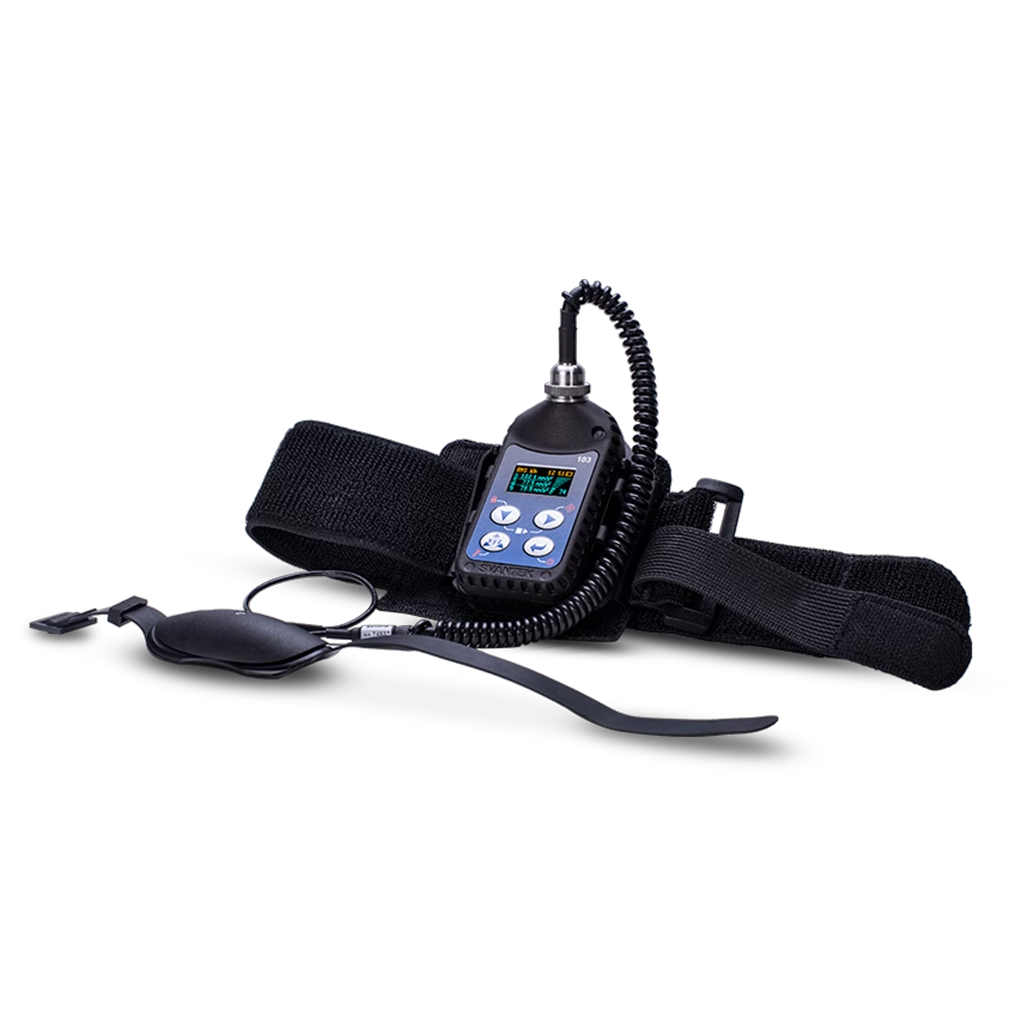

SV 103

Hand-arm vibration dosimeter

3-channel, ISO 8041-2, ISO 8041-1 ,ISO 5349

Worn on the hand or under gloves, it runs unattended to log full-shift HAV from hand-held power tools for H&S / HSE teams and military crews (drills, grinders, chipping hammers, mowers).

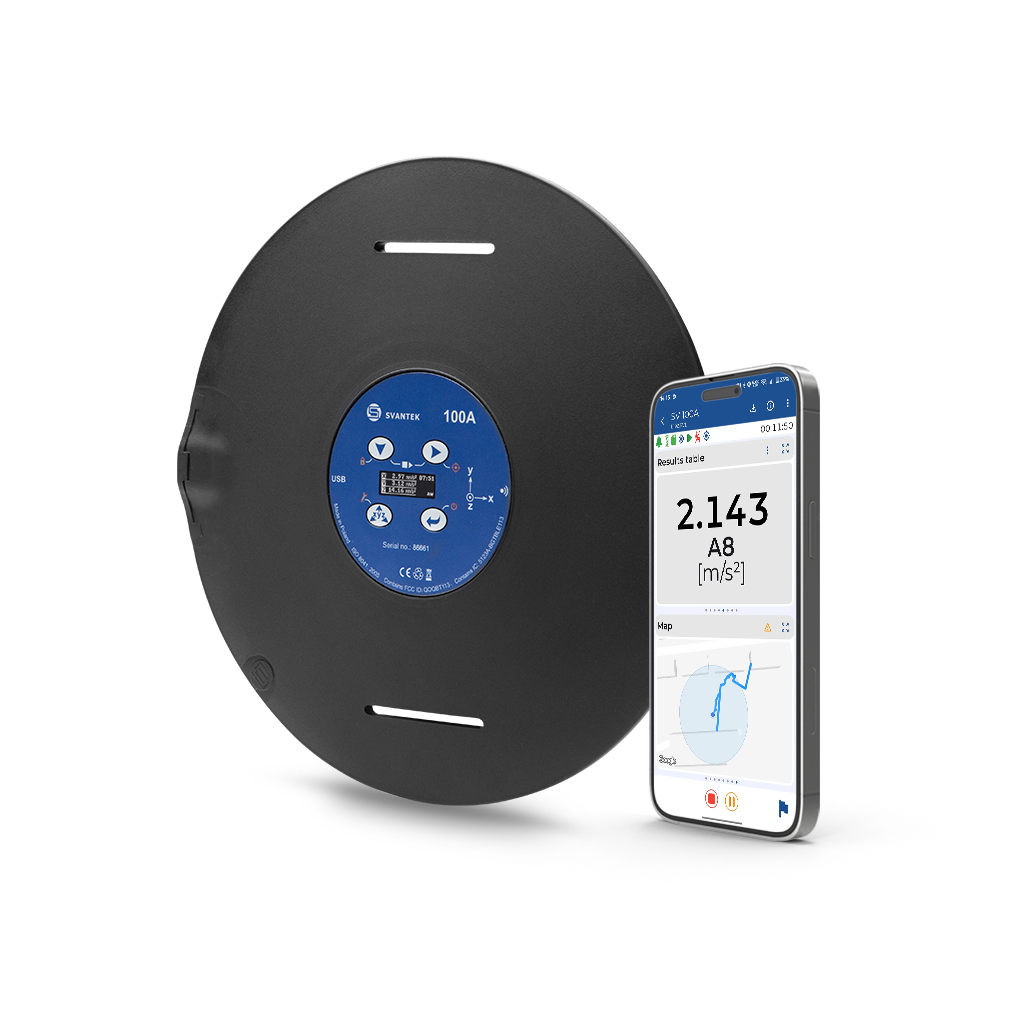

SV 100A

Wireless whole-body vibration meter

3-channel, ISO 8041-1, ISO 8041-2, ISO 2631

Mounted on the seat and backrest, it operates wirelessly and unattended for full-day routes with mobile-app GPS tracking across cars, trucks, buses, ships, aircraft, helicopters, and military vehicles.

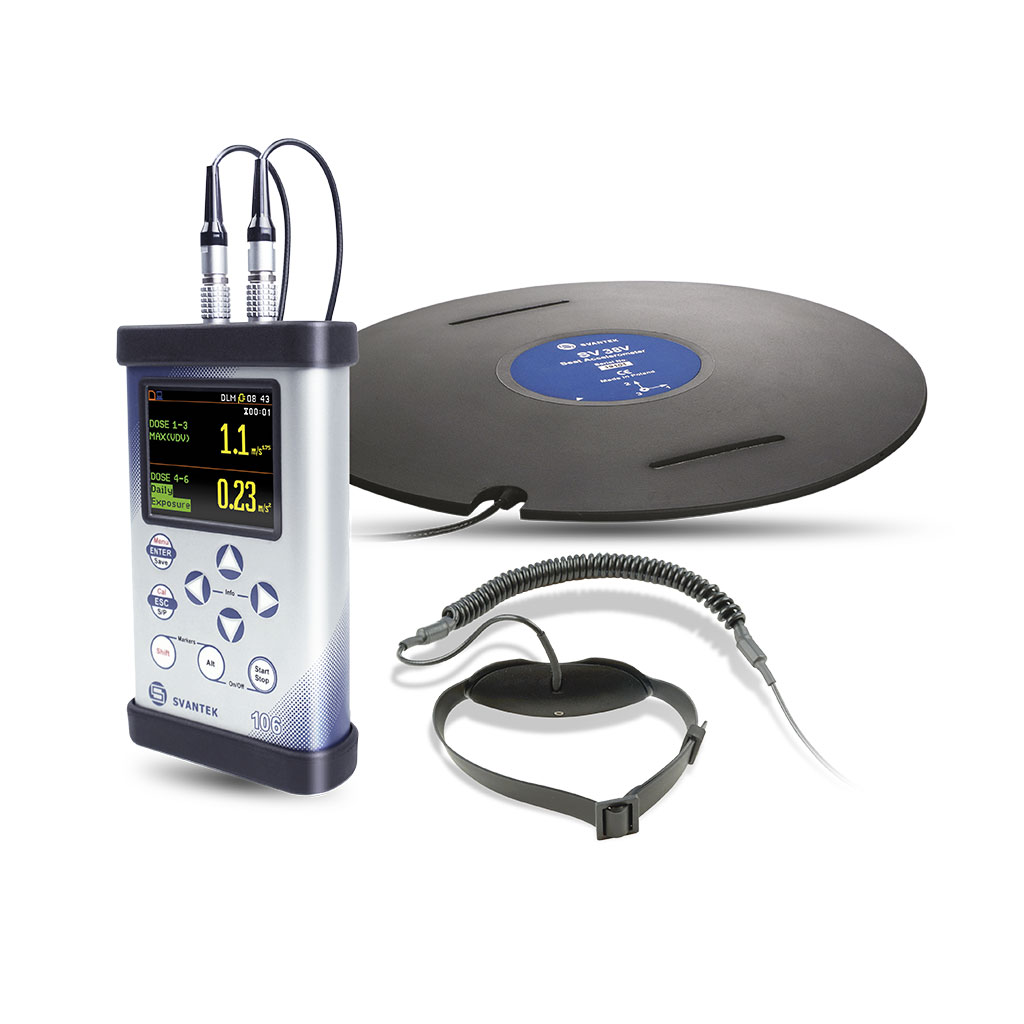

SV 106D

Human vibration analyzer

6-channel, ISO 8041-1, ISO 5349, ISO 2631

Operator-driven, sampling studies for labs and R&D covering HAV on the hand/tool, WBV on the seat/backrest, and vibration transmissibility (e.g., floor-to-seat) with optional 1/3-octave analysis.

Comprehensive solutions for vibration at work measurement

Svantek provides a complete range of instruments and software for assessing vibration exposure in the workplace:

Hand–arm vibration measured directly on the hand and on the tool
Seat and whole-body vibration including backrest analysis
Floor vibration in vehicles and buildings
In-field calibrators for precise verification
PC software Supervisor with templated reporting
Mobile app for GPS correlation with whole-body vibration in vehicles

Products Highlights

Mechanical robustness

environmentally resilient design

MEMS sensors

Low power consumption and no DC shift

Full compliance with ISO 8041, ISO 2631 and ISO 5349

Vibration sources analysis with 1/3 octave bands

Continuous operation for a full work shift

Equipment tailored to your needs

We have the solution for you

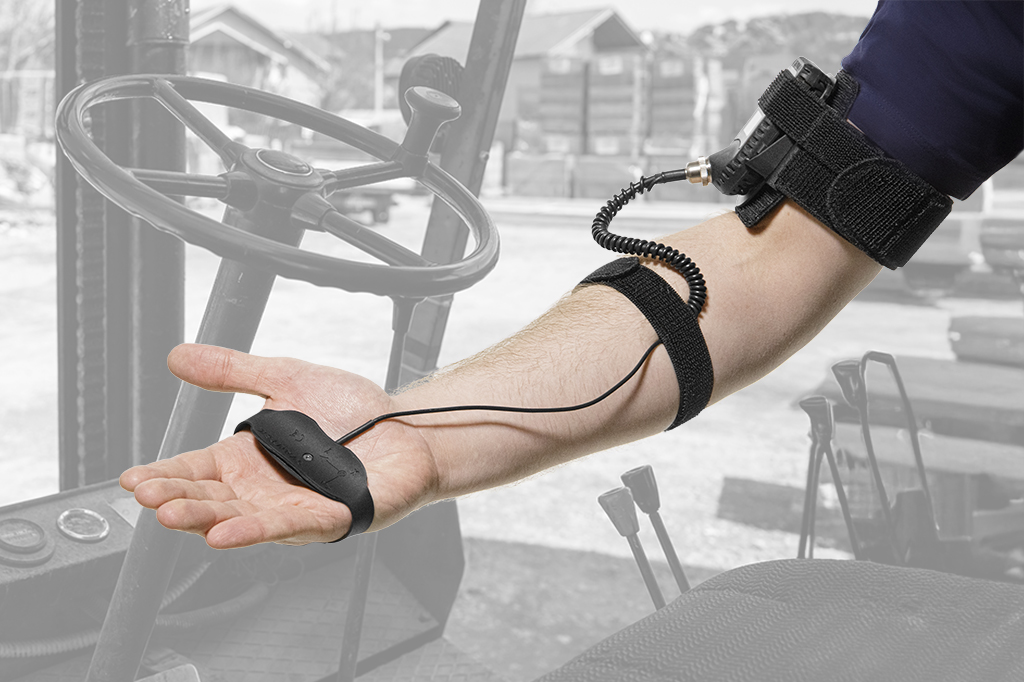

A state-of-the-art human vibration meter designed for continuous monitoring in harsh workplace environments:

Low power MEMS sensors for continuous monitoring
Tool and body mounted sensors for vibration transmission analysis
Seat and floor sensors for SEAT transmissibility assessment
Force measurement for automatic operator detection
Bluetooth® connectivity for GPS tracking in vehicle vibration studies
Time-history logging for detailed analysis
Simple reporting for compliance with international standards

Occupational safety

Monitoring worker exposure to hand–arm and whole-body vibration in industrial environments

Automotive

Assessment of seat, floor, and backrest vibration in vehicles to improve ride comfort

Research & development

Designing and testing tools and devices for compliance with vibration standards

Military vehicles

Protecting personnel from vibration exposure during operations and training

Sea vessels

Evaluation of vibration levels on ships and offshore platforms for crew safety and comfort

Buildings & infrastructure

Assessment of floor vibration and comfort levels, including sleep disturbance analysis

Configure your vibration meter for any application

Ensure precise vibration monitoring with options such as:

Unattended monitoring with SV 103 (hand–arm) or SV 100A (whole-body)

On-site analysis with SV 106D for advanced research and development

Vibration calibrators: SV 110 (hand–arm) and SV 111 (hand–arm & whole-body) for pre- and post-measurement verification

Analysis modes: time-domain and 1/3 octave for R&D applications

Software reporting included with no extra cost, ensuring seamless workflow

Easy Occupational Vibration Monitoring

Step 1

Mount sensors, power on, press start

Step 2

Collect data over an 8-hour shift or using the sampling method

Step 3

Download data and use report templates in Supervisor software

Dedicated Software Solutions

Comprehensive package for vibration meters, combining ease of use with advanced analysis:

Compliance with European Directive 2002/44/EC for both hand–arm and whole-body vibration

Points system as an alternative method for daily exposure evaluation

VDV calculations dedicated to whole-body impulsive vibration

A(8) report templates for ISO compliance and daily exposure assessment

Automatic data filtering for operator presence or hand contact detection

WAV recalculation and frequency analysis for vibration source identification

Integrated worker database in Supervisor for simplified management and reporting

Trusted by experts worldwide

SV 106D - "Used for measuring floor vibration and impact on a scientific microscope measurement performance. Easy to use, good software to analyze data and visualize, handy portable size.

SV 106D - "The ability to capture raw signals and perform FFT analysis makes the SV 106D a powerful teaching and research tool."

SV 100A - "Wireless preview via the Assistant PRO app and GPS overlay helped us map vibration hotspots to specific road sections"

Key features and capabilities

Standards compliance

ISO 8041-2:2021, ISO 5349, ISO 2631, Directive 2002/44/EC

Supervisor software

Automatic reporting, worker database, and compliance templates

Force detection

Contact force sensors to exclude invalid data

Low-frequency analysis

From 0.1 Hz for comfort and motion sickness studies (SV 100A, SV 106D)

Whole-body vibration

Seat and backrest sensors for ISO 2631 compliance (SV 100A, SV 106D)

Hand–arm vibration

Measurement in compliance with ISO 5349 (SV 103, SV 106D)

MEMS accelerometers

Low power, high shock resistance, suitable for long-term use

Personal exposure meter

Device for daily hand–arm and whole-body monitoring (SV 103, SV 100A)

Six-channel analyzer

Simultaneous measurements with two triaxial accelerometers (SV 106D)

Time-history logging

Large memory for shift-long vibration data

1/3 octave & WAV

Optional real-time frequency analysis and waveform recording

Bluetooth® & GPS

Wireless app for live data preview, control, and tagging (SV 100A)
